Average power by integration

Integrating over SINE cycles to find average power and RMS.

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

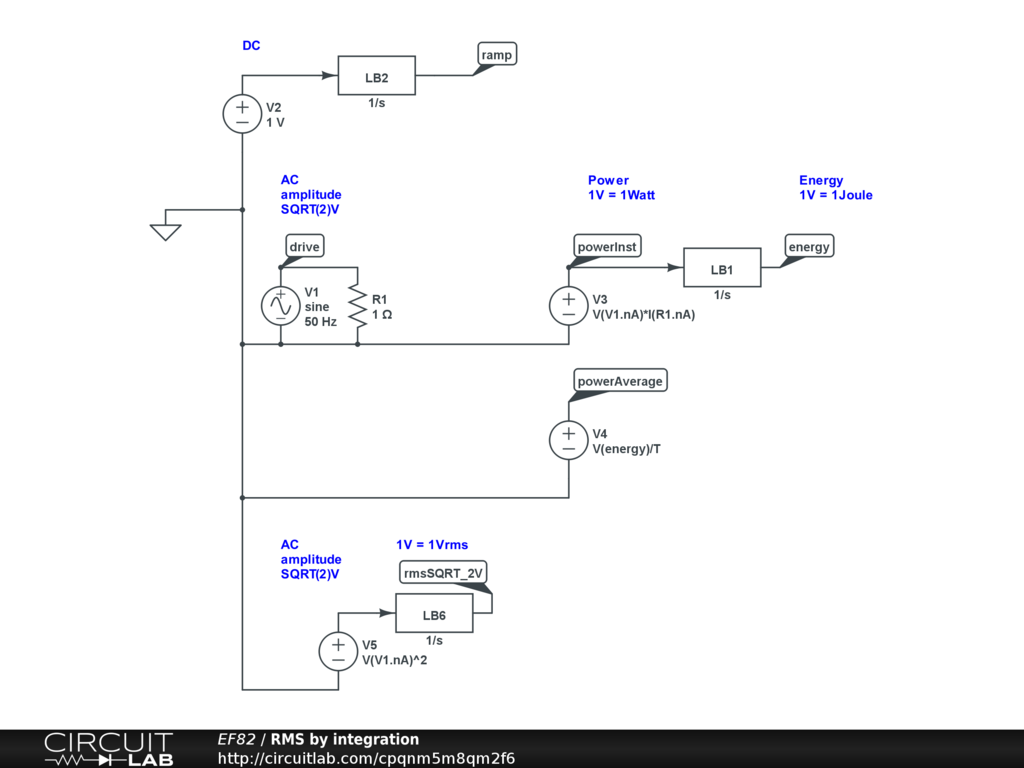

Three configurations of Laplace Block integrators for finding average power and rms volts. The Sine amplitude of SQRT(2) gives normalised outputs.

1] DC straight ramp, for reference.

2] Instantaneous power, energy and average power.

3] rms volts.

The frequency of 50Hz makes the arithmetic easier for an integer number of cycles.
