Oscillator Equiv. Circuit PUBLIC

Created by
Created September 15, 2020
Last modified September 15, 2020
Tags crystal   oscillator

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

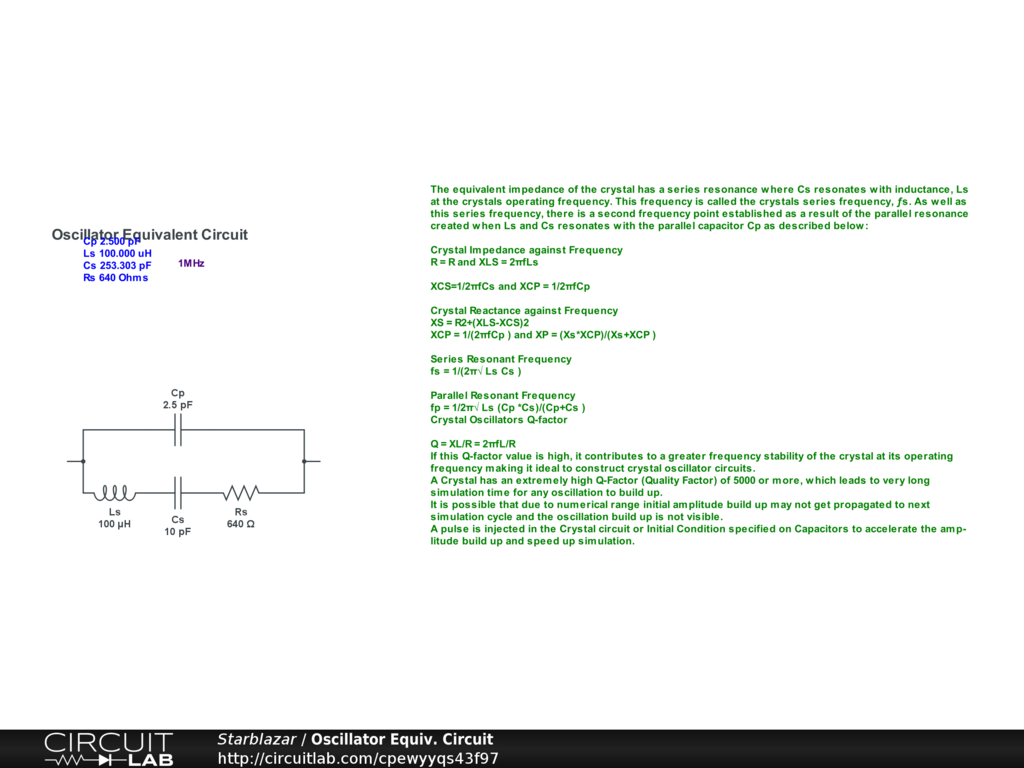

This is one example of an Oscillator Crystal Equivalent Circuit.
