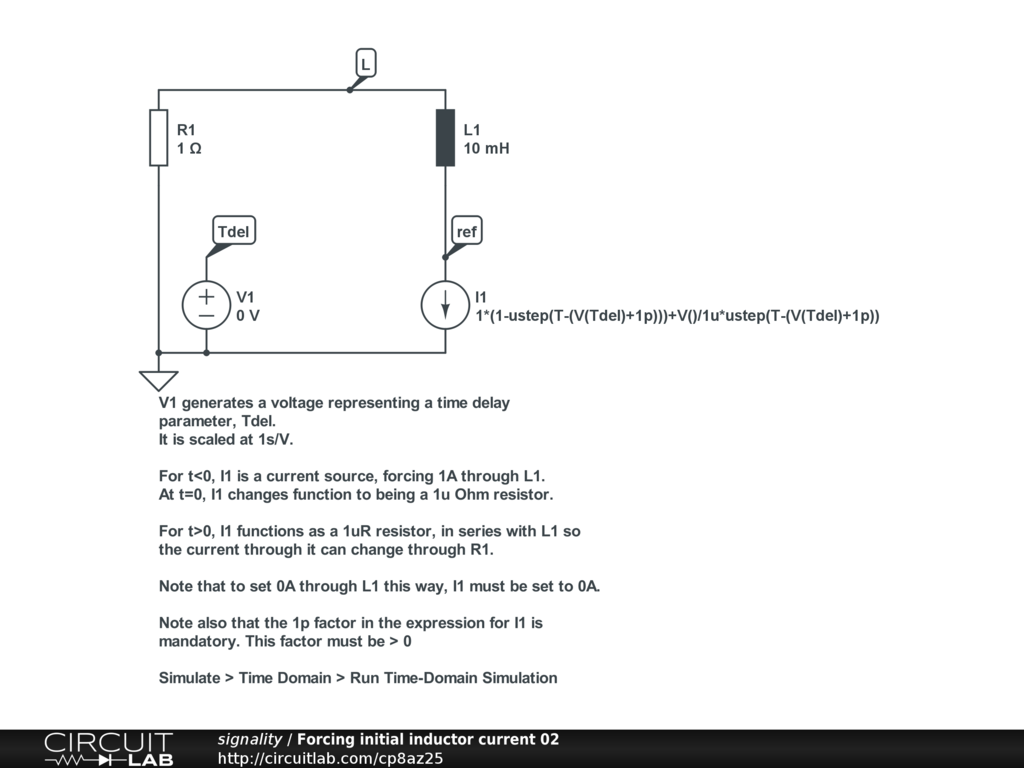

A behavioural current source can be used to force an inductor to start with a given current through it.
This performs the same function as:
https://www.circuitlab.com/circuit/dpv8u5/forcing-initial-inductor-current/
but using an expression in a behavioural current source that switches it from being an ideal current source to being a 1u resistor at a time specified by the parametric voltage, Tdel.
See also:
https://www.circuitlab.com/circuit/jddv93/forcing-initial-capacitor-voltage-0/
https://www.circuitlab.com/circuit/x8qupa/forcing-initial-capacitor-voltage-02/
For more on expressions and behavioural sources, see:
https://www.circuitlab.com/docs/expressions/
https://www.circuitlab.com/docs/circuit-elements/#behavioralsources
