Voltage Divider

Simple voltage divider with over-voltage protection for battery voltage monitoring via ADC port of EZB Micro Controller.

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

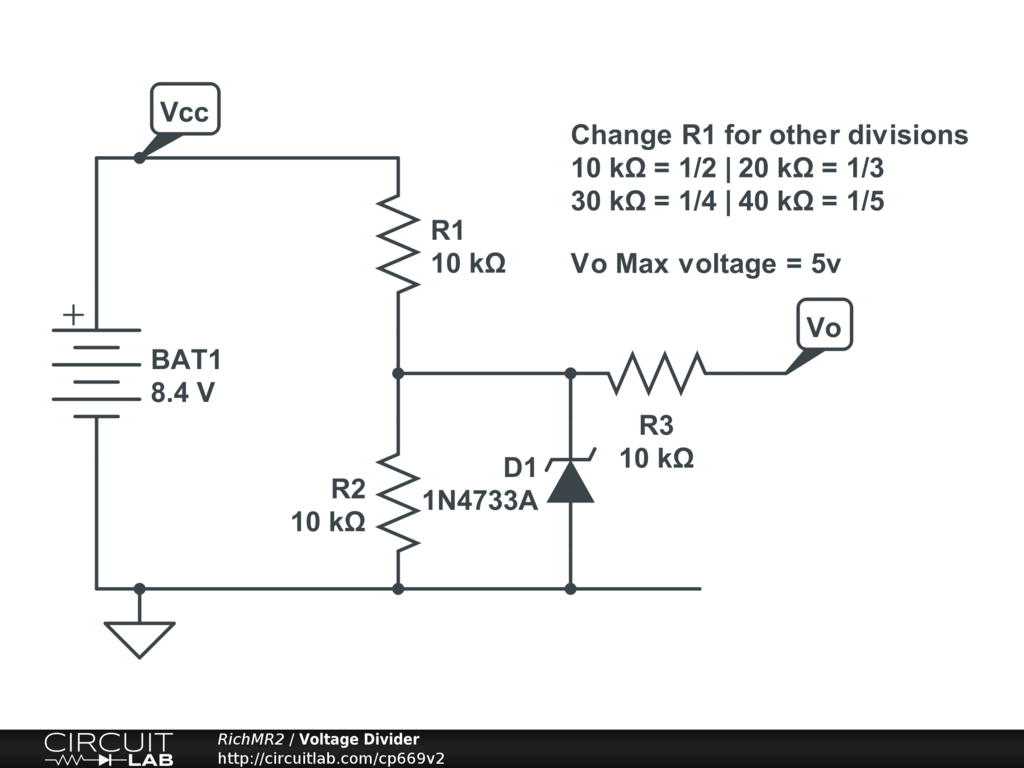

Simple voltage divider circuit with over-voltage (5V) protection.

To adjust division replace R1 as follows;

10 kΩ = 1/2 20 kΩ = 1/3 30 kΩ = 1/4 40 kΩ = 1/5
