Description

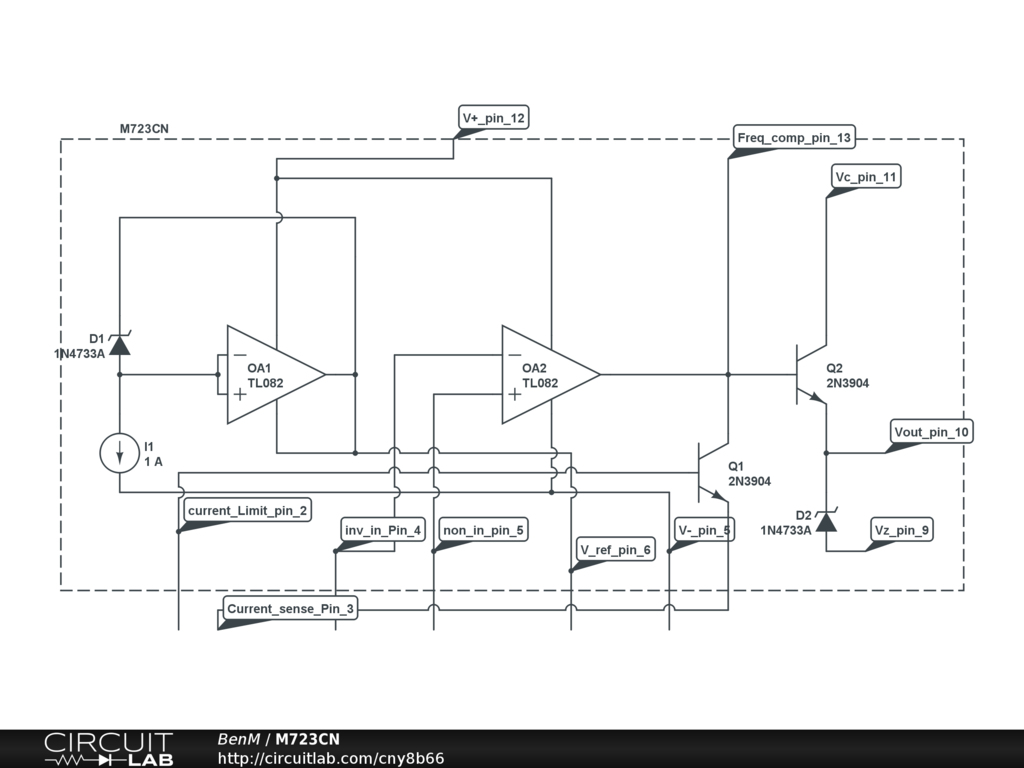

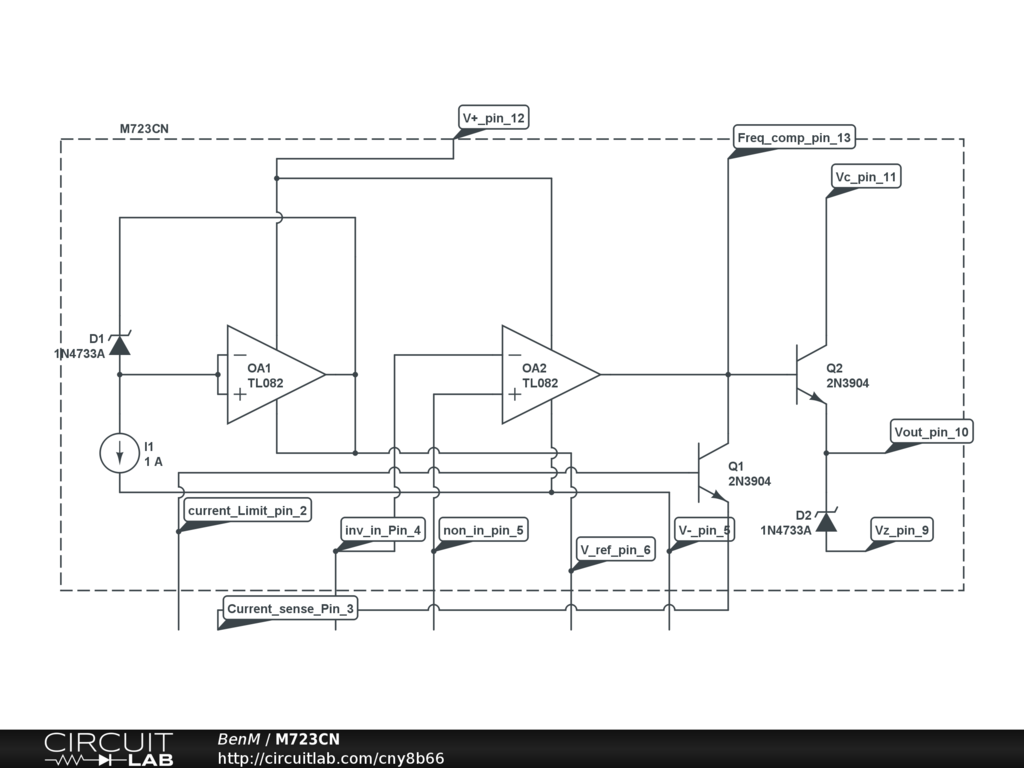

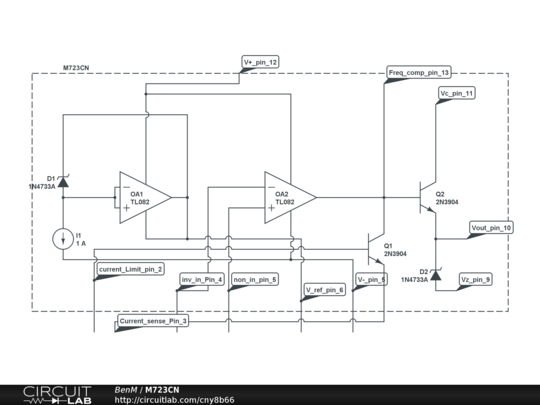

A M723CN circuit, not sure about the ref op having both input tied together, could be just one takes input from the current source, but I am not sure which.
