SDP_Sense_Scaler PUBLIC

Created by
Created March 05, 2012
Last modified March 06, 2012
Tags No tags.

Summary

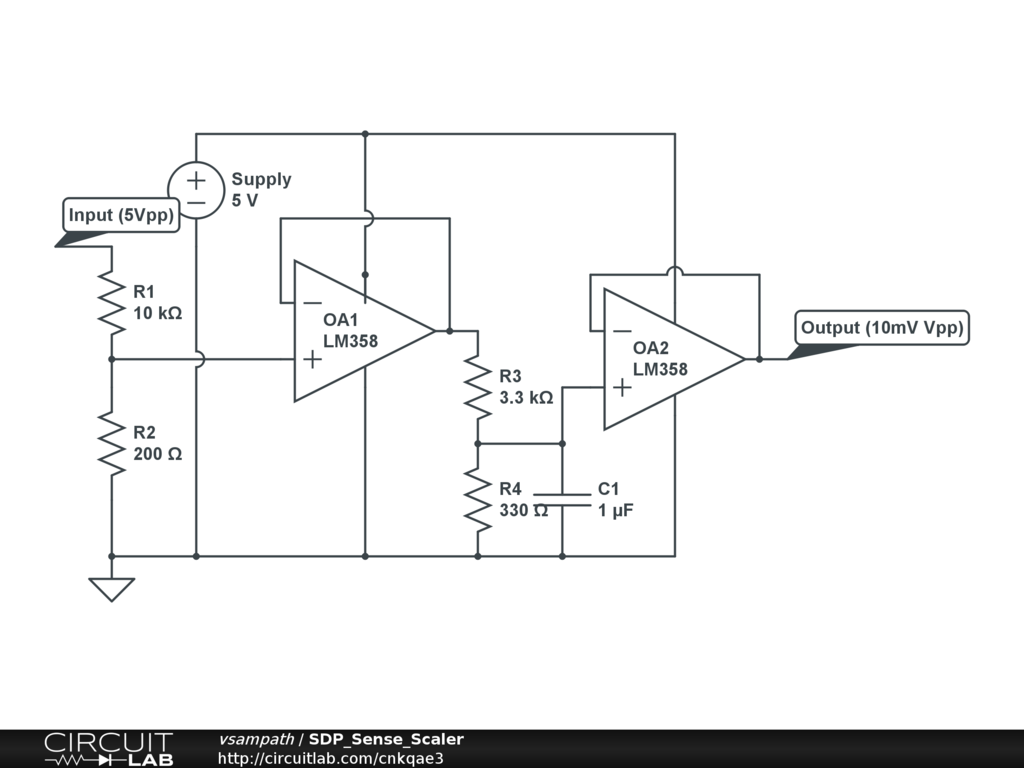

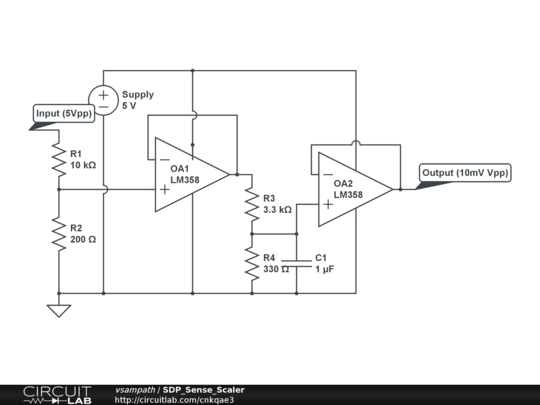

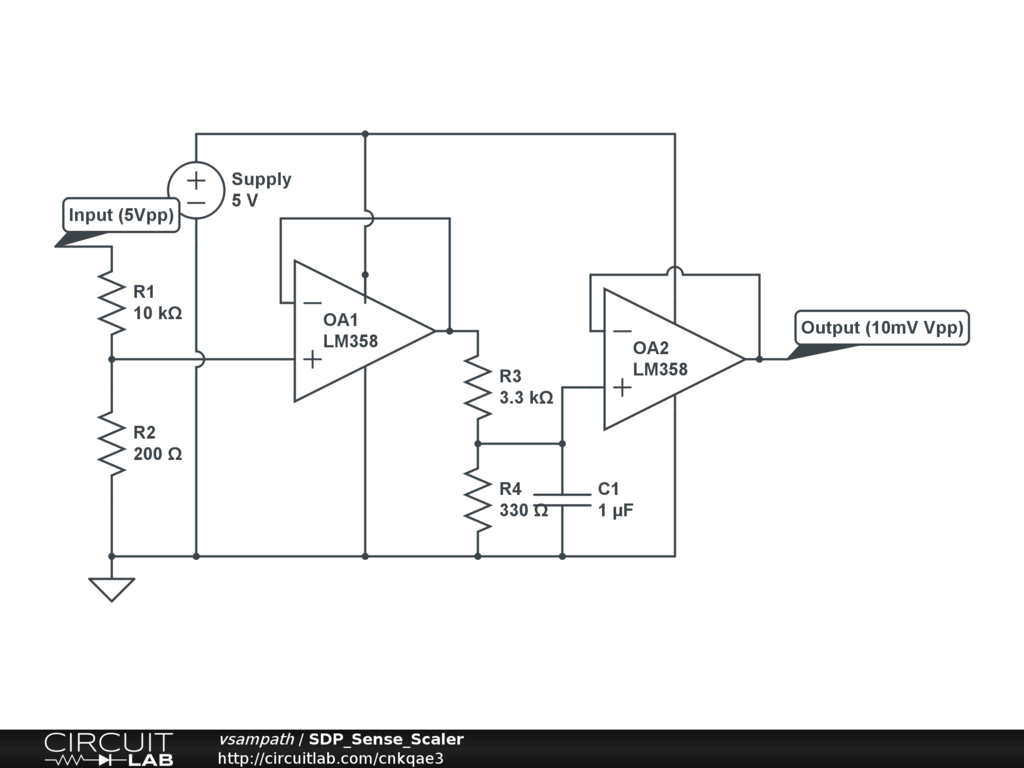

Divides an input signal of 5V Vpp to a 10mV signal.
