4th order 3way LR xOver PUBLIC

Created by
Created May 22, 2012
Last modified May 22, 2012
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

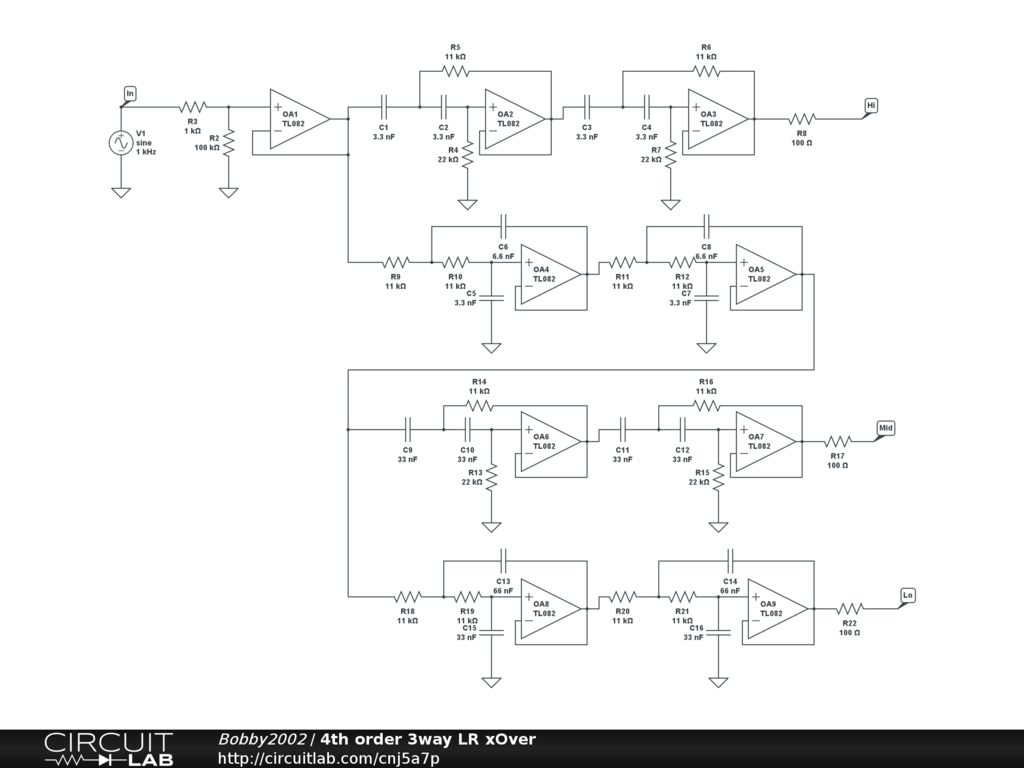

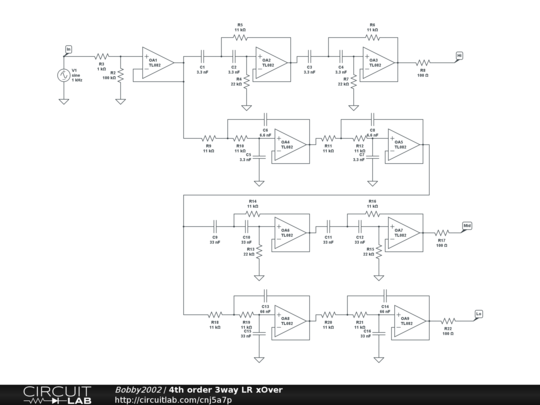

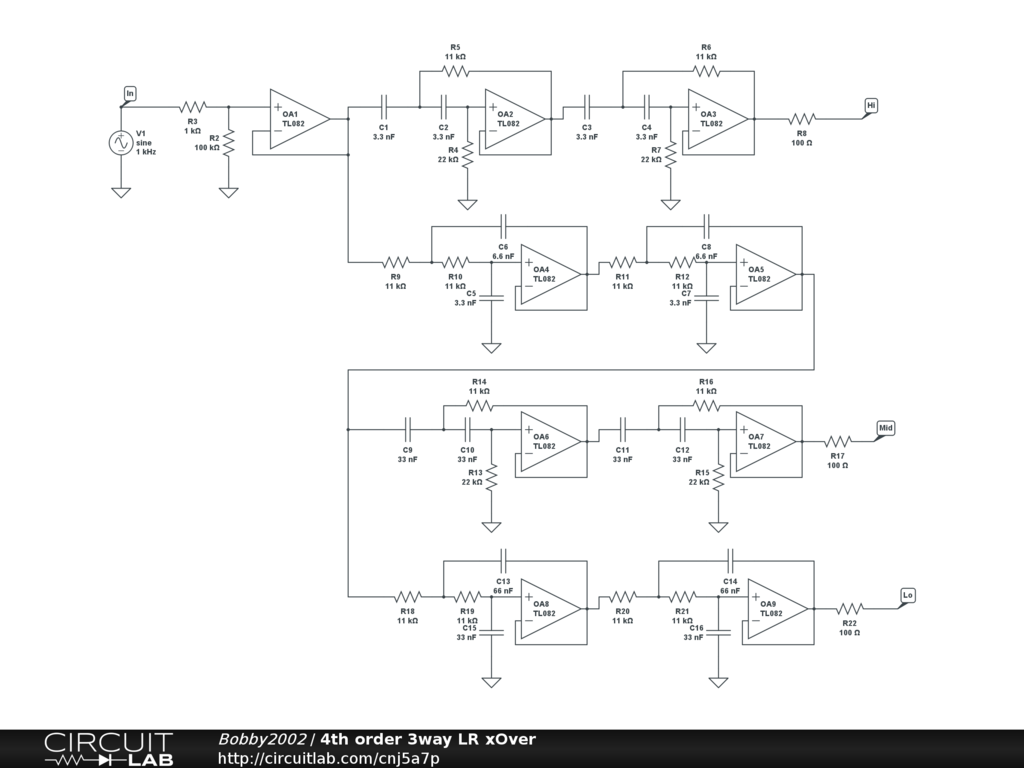

This is a 3-way 4th order (24 db/octave) Linkwitz-Riley electronic active crossover built according to the Rod Elliott's designt Please see ESP pages for more info
