Differential Mode Choke 01

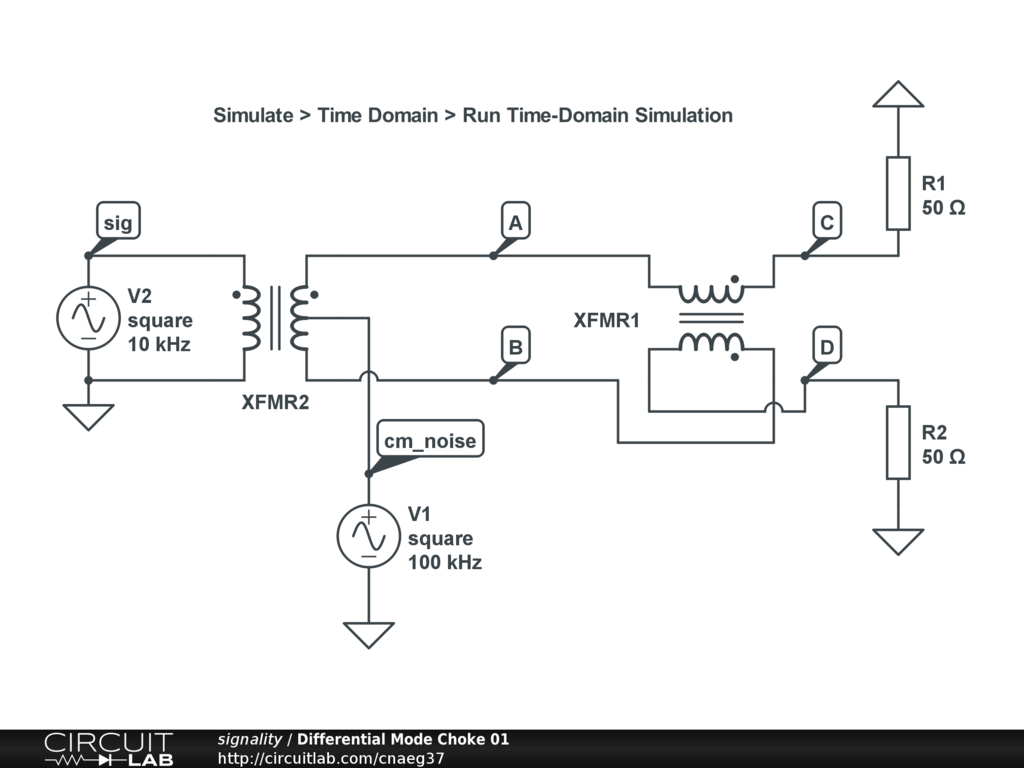

Demonstration of the effects of a differential mode choke.

Simulate > Time Domain > Run Time-Domain Simulation
