AM-Radio-lab-part4 PUBLIC

Created by
Created October 21, 2022
Last modified October 31, 2022
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

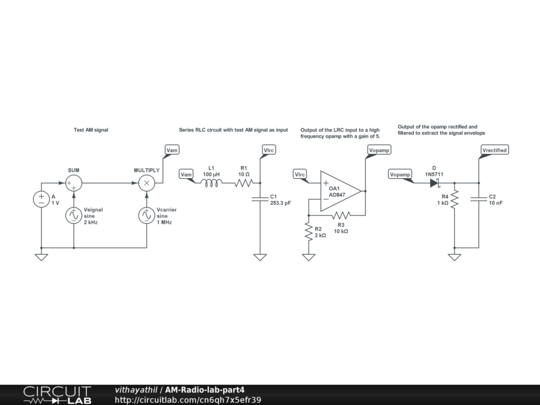

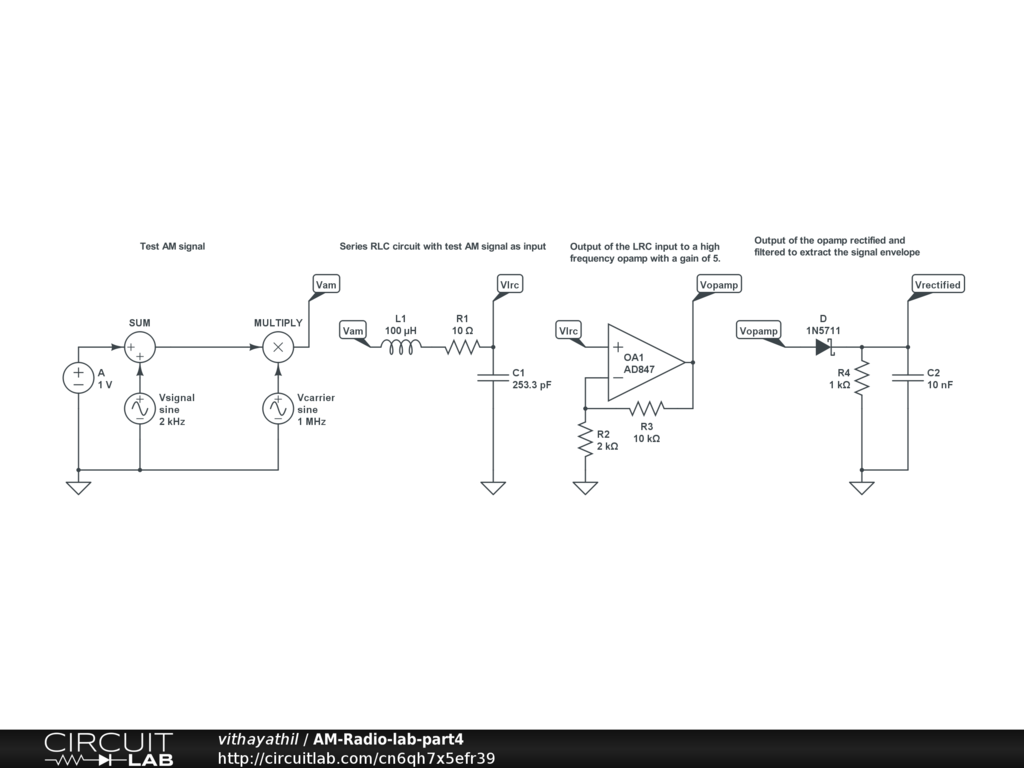

Simulation of an test AM signal fed to a series LRC circuit and amplified with a fast opamp and then rectified and filtered.
