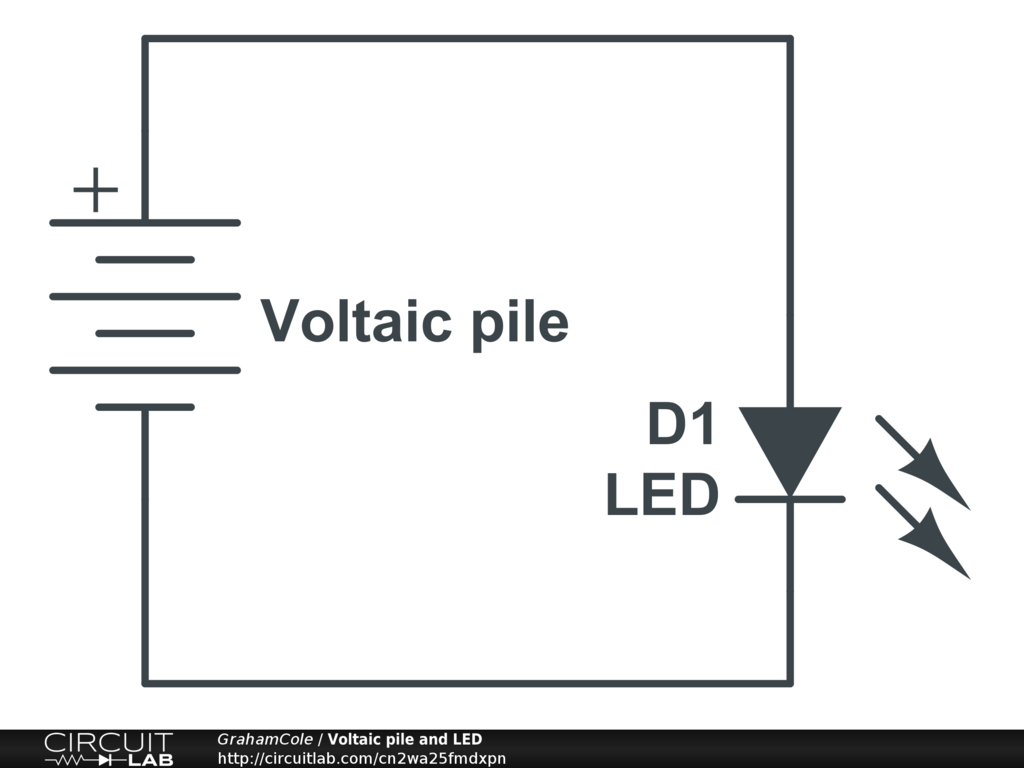

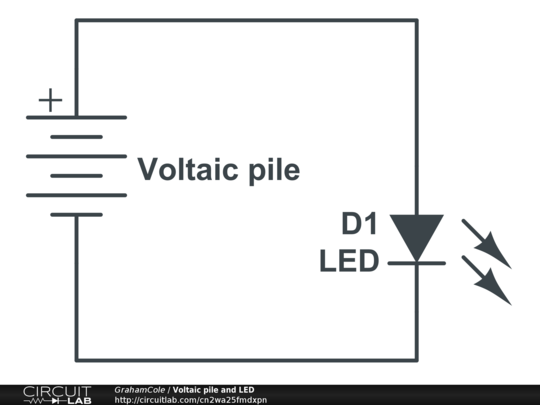

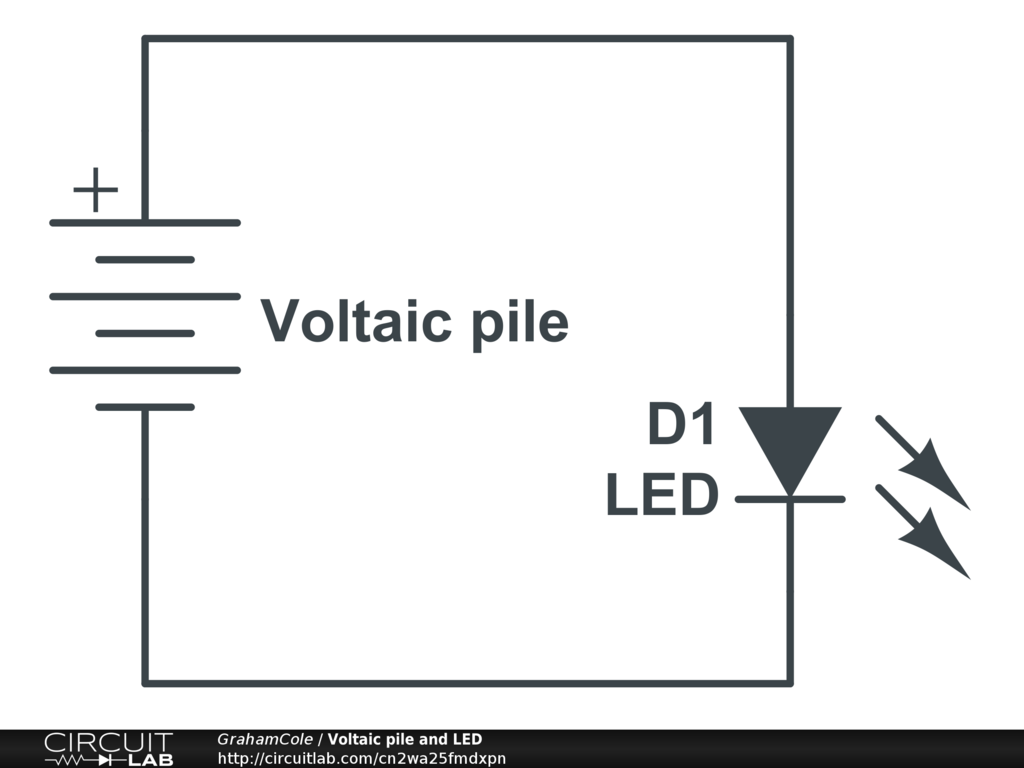

A very simple circuit - the first my student will make. A voltaic pile made from 2p coins, aluminium discs, and vinegar soaked cardboard discs. Works reliably.
