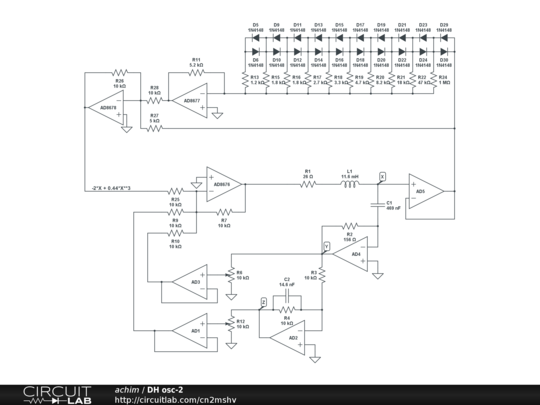

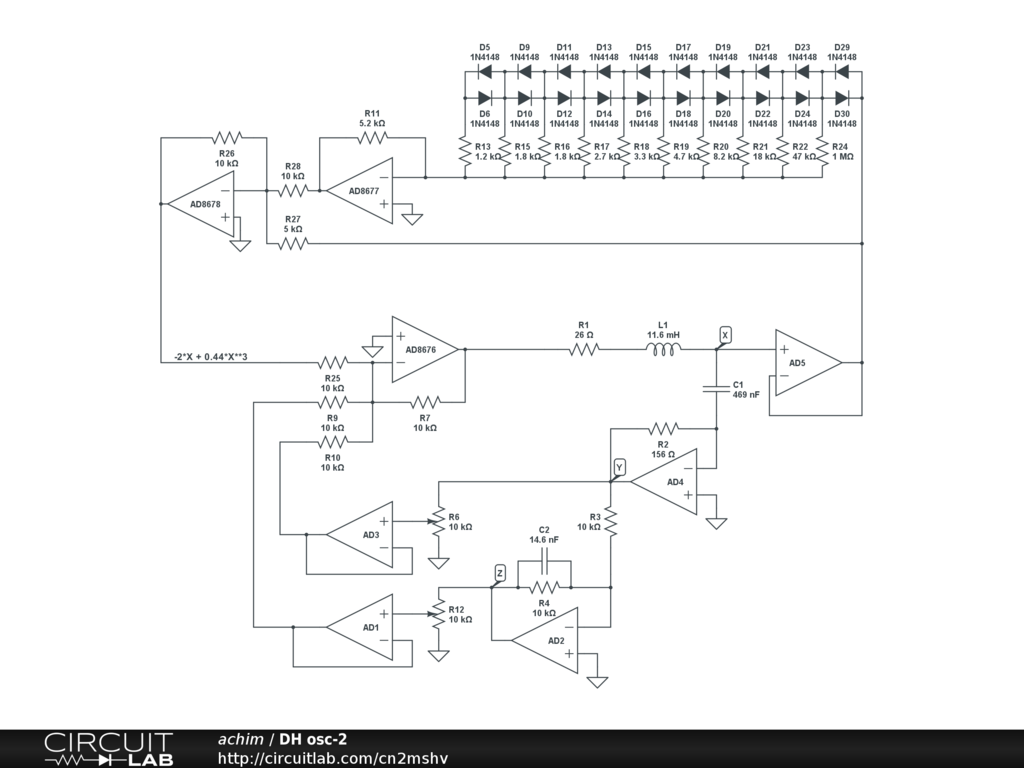

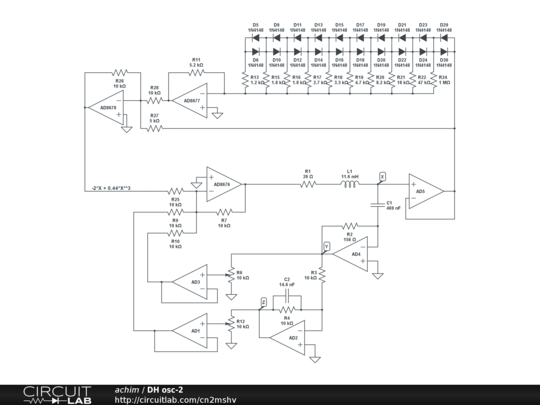

A Duffing-Holmes type autonomous oscillator. Value b is the upper pot, k the lower one. Note: Due to an error in the editor it is possible to enter values >1 for k.
For demo try: b = 0.6, k = 1.5, click "Simulate" and run the transient analysis "Time domain" for stop time 0.02s, step 0.000005. Takes 30 min on my machine.
