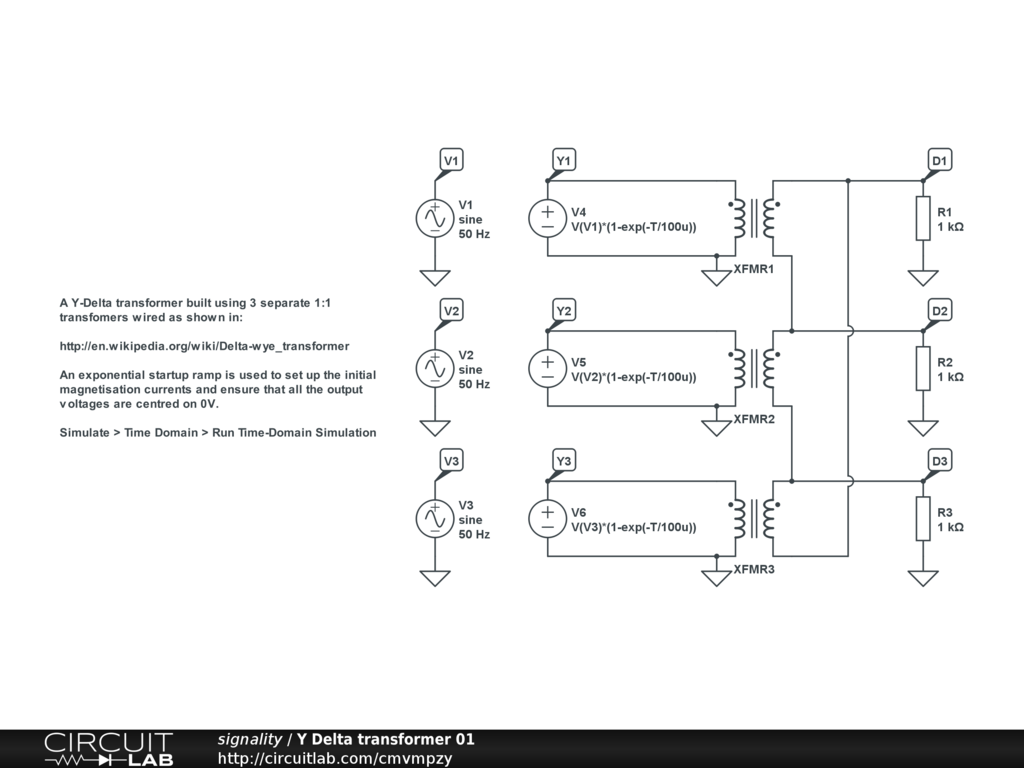

A Y-Delta transformer built using 3 separate 1:1
transfomers wired as shown in:
http://en.wikipedia.org/wiki/Delta-wye_transformer
An exponential startup ramp is used to set up the initial
magnetisation currents and ensure that all the output
voltages are centred on 0V.
Simulate > Time Domain > Run Time-Domain Simulation
