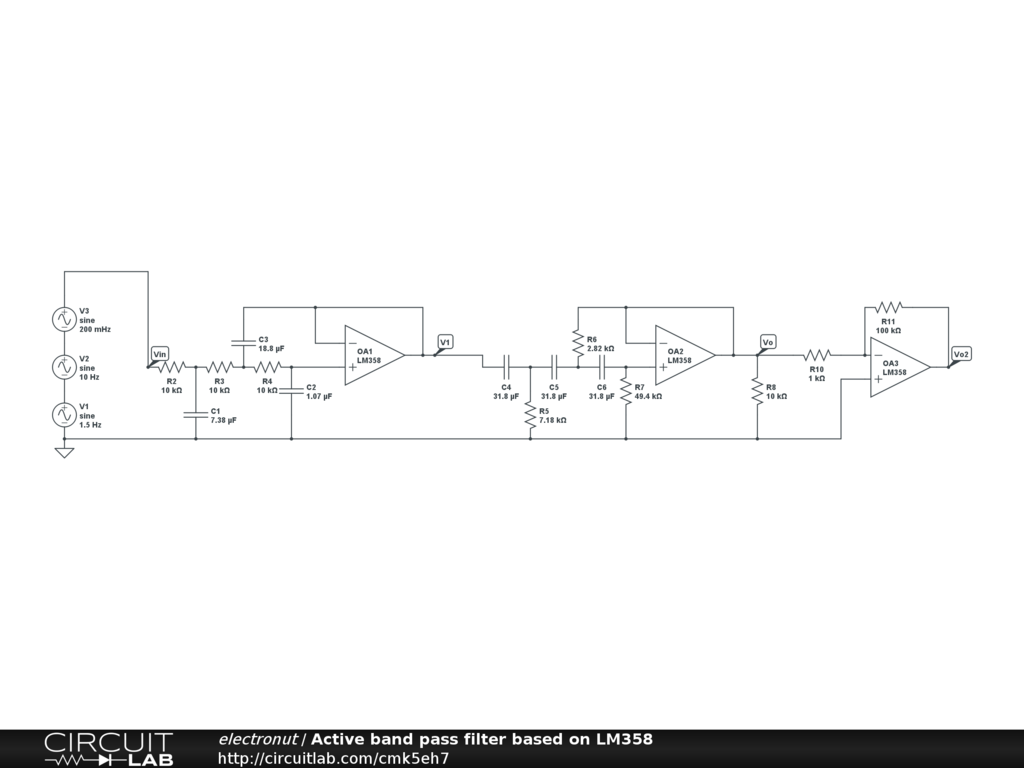

Active band pass filter based on LM358 PUBLIC

Created by
Created March 05, 2013
Last modified March 07, 2013
Tags active-filter   band-pass   filter   lm358

Summary

Active Band Pass Filter using LM 358.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

Designing an Active High Pass filter, using techniques described in Practical Electronics for Inventors III Ed by Scherz & Monk.

Here, f1 = 0.5 Hz, f2 = 3Hz.

Low Pass:

-3dB at 3 Hz -30dB at 9 Hz

High Pass:

-3dB at 0.Hz -30db at 0.16 Hz
