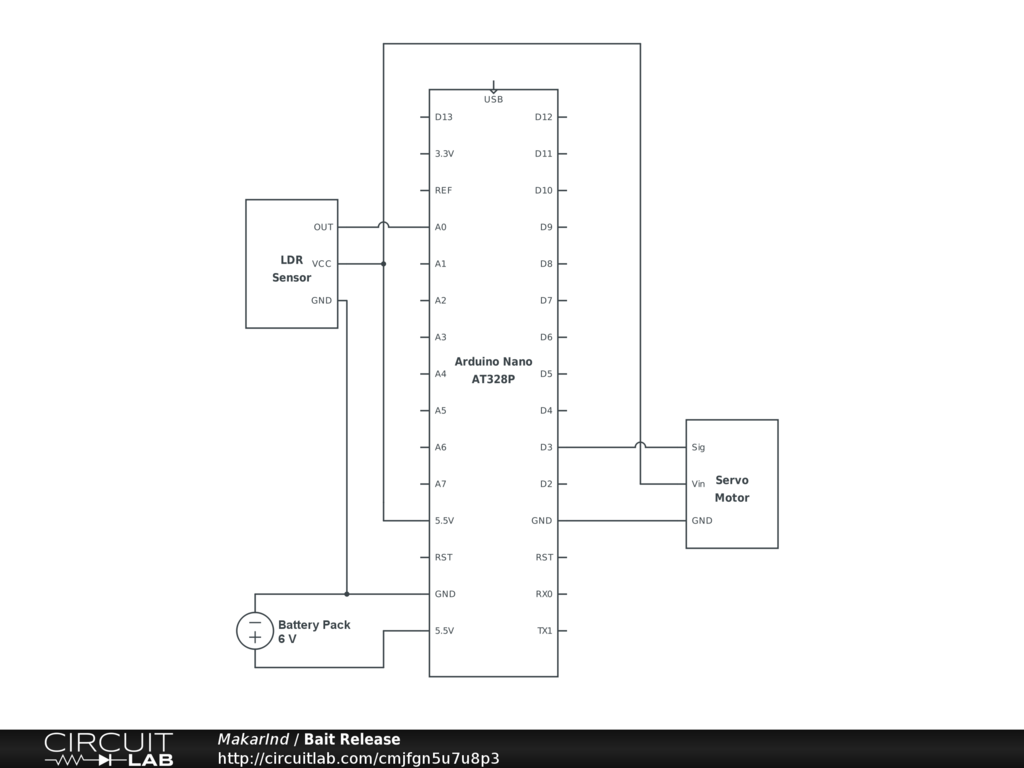

A simple schematic for an Arduino Nano powered, light sensor activated servo motor.

When the LDR sensor resistance value reaches a declared threshold, the servo will actuate. Code linked below.
