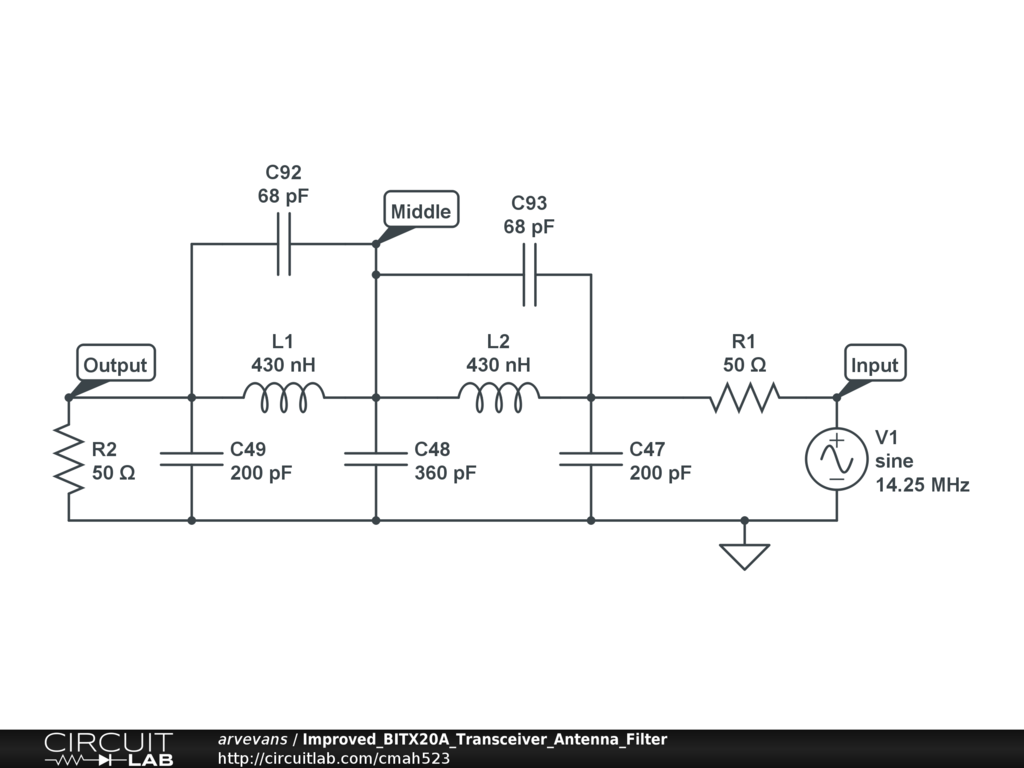

Adding C93 and reducing L2 inductance (12 turns instead of 14) improves LPF top-end rejection by an additional 20 db. This circuit can be run in the simulator to see the new LPF shape.
