DAC out PUBLIC

Created by
Created March 27, 2012
Last modified March 27, 2012
Tags No tags.

Summary

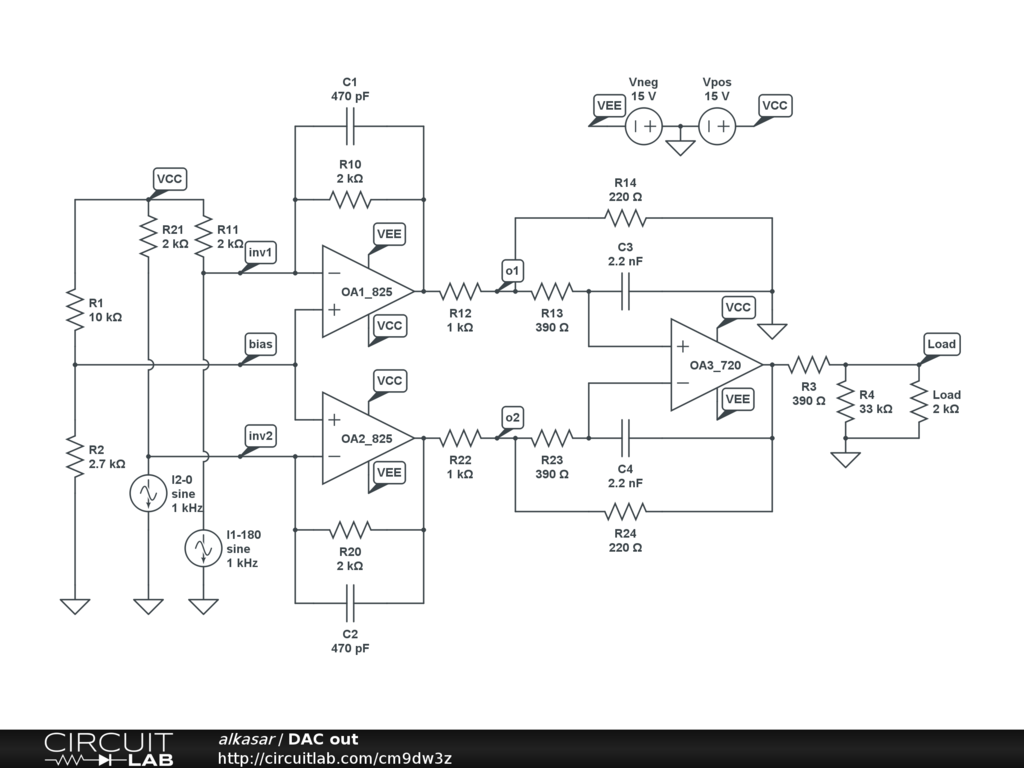

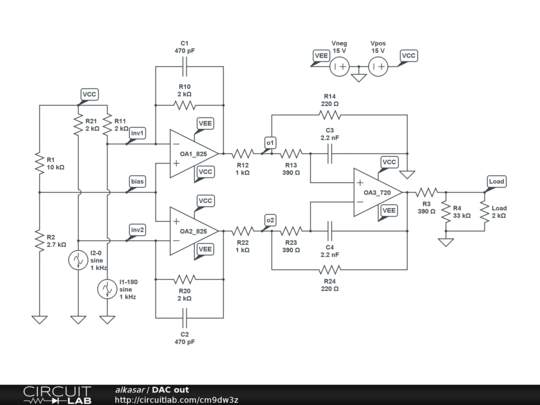

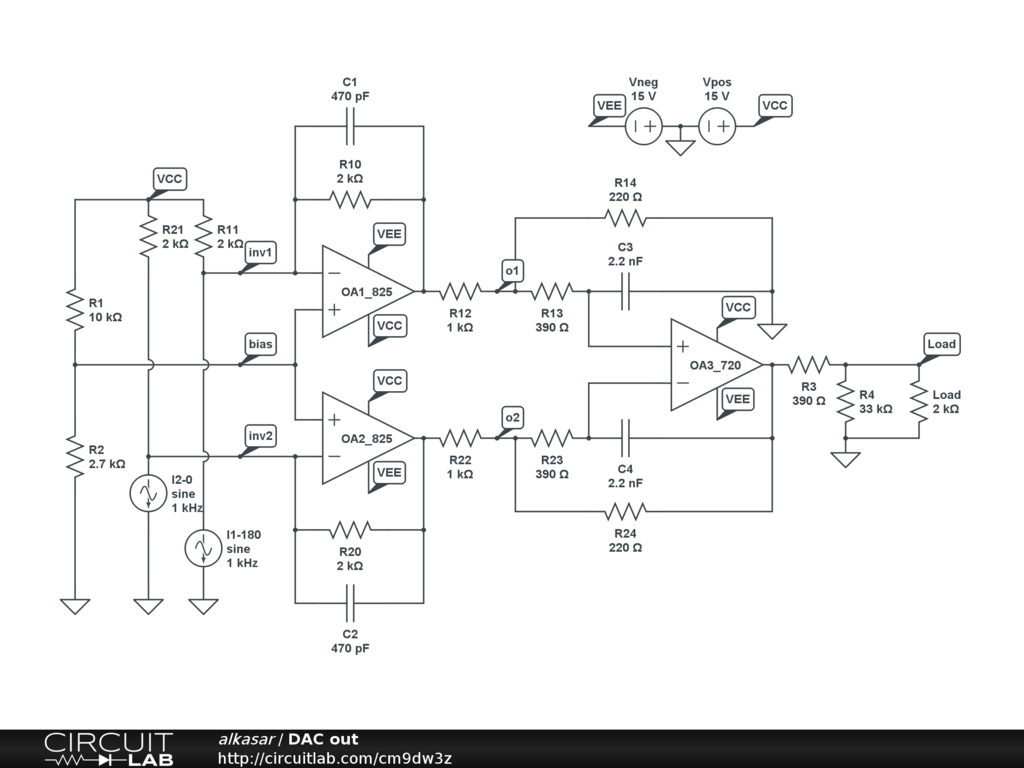

AD1955 output stage : I/V conversion and buffer

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

I1 and I2 current source simulate the AD1955 dac analog output.

I2 is 180° out of phase.

Offset is 3.23mA and output current 8.64mAp-p as per AD1955 datasheet. Some decoupling capacitors not shown.
