Filtro de audio de baja frecuencia (LMF) PUBLIC

Created by
Created April 13, 2015
Last modified April 17, 2015
Tags active-filter   amplifier   audio   filter   high-pass   low-pass

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

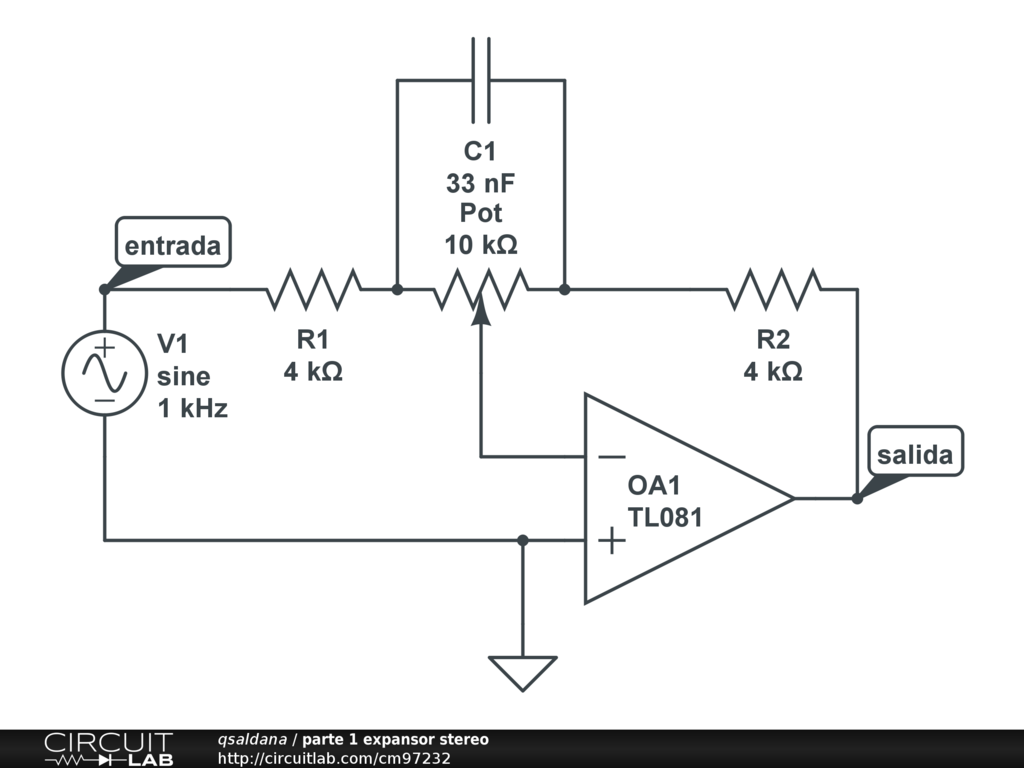

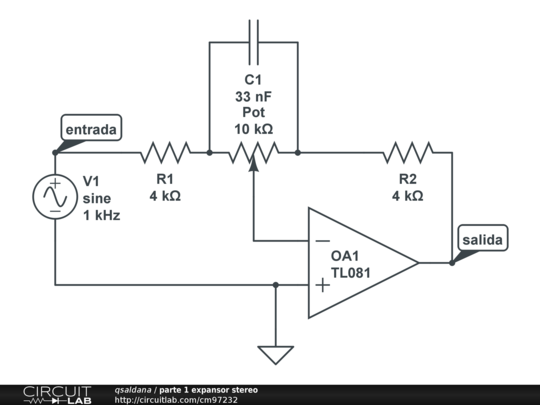

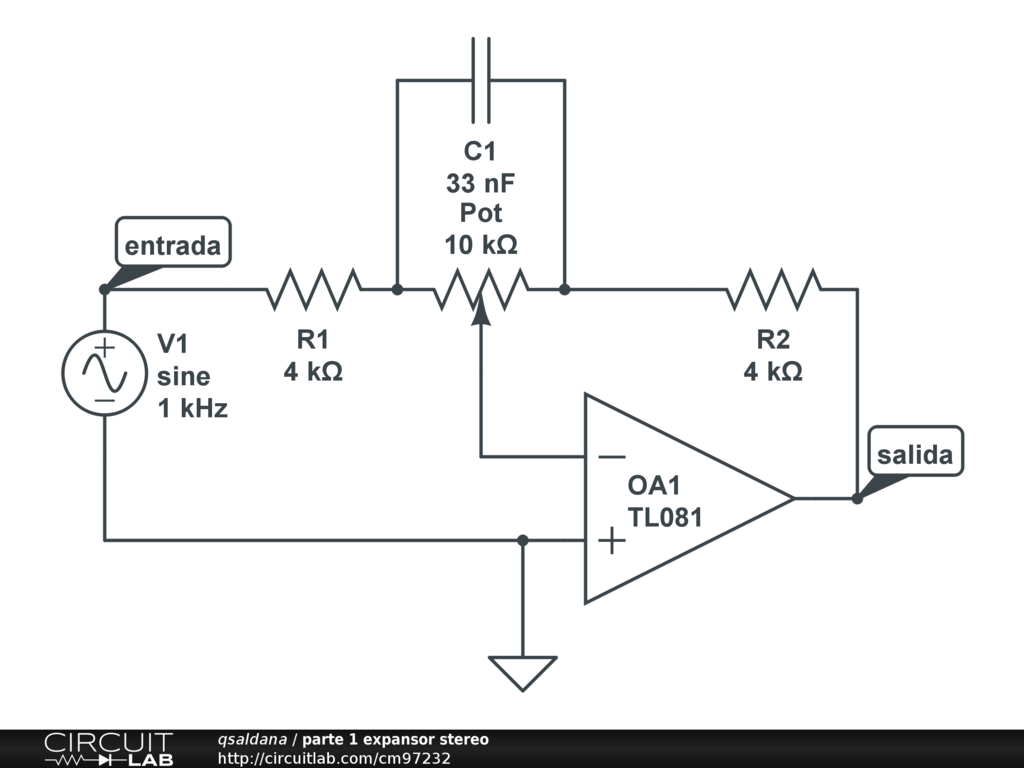

Filtro de Baja frecuencia tipo Shelving, ganancia/atenuación para baja frecuencia. Frecuencia de corte 1'3Khz, maxima ganancia o atenuación, +-12dB.
