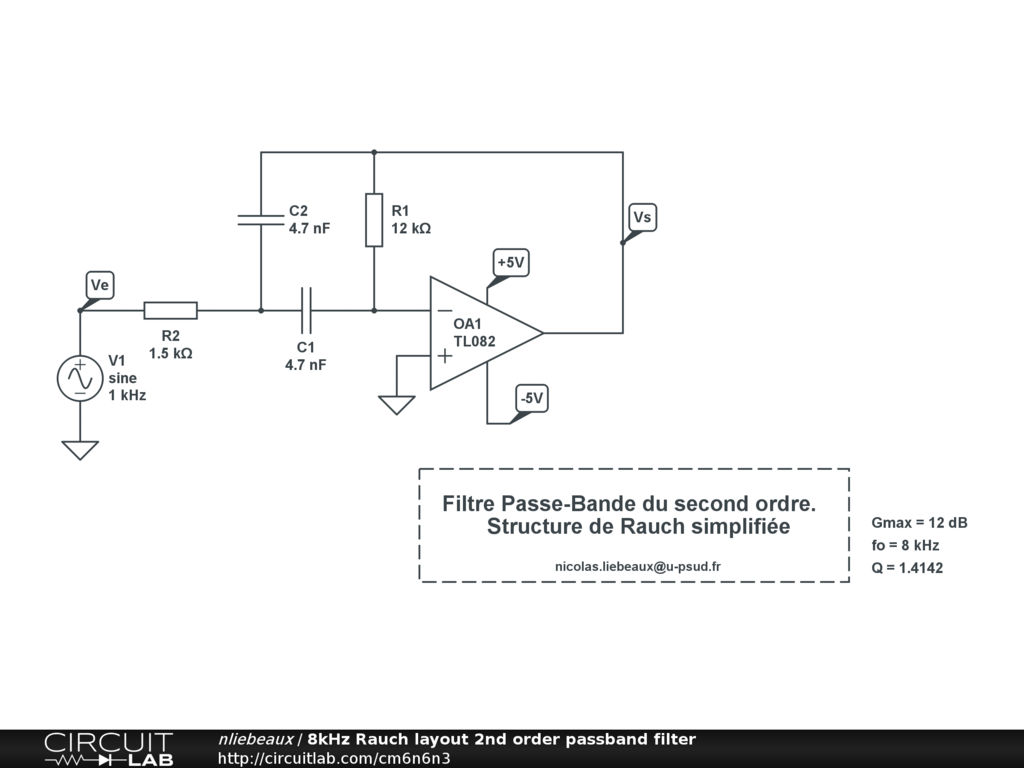

8kHz Rauch layout 2nd order passband filter

Created by	nliebeaux
Created	April 15, 2012
Last modified	April 15, 2012
Tags	active-filter bandpass iutcachan rauch

Filtre passe bande du 2nd ordre (fo = 8 kHz, Q = 1.4142).
Structure de Rauch simplifié.
