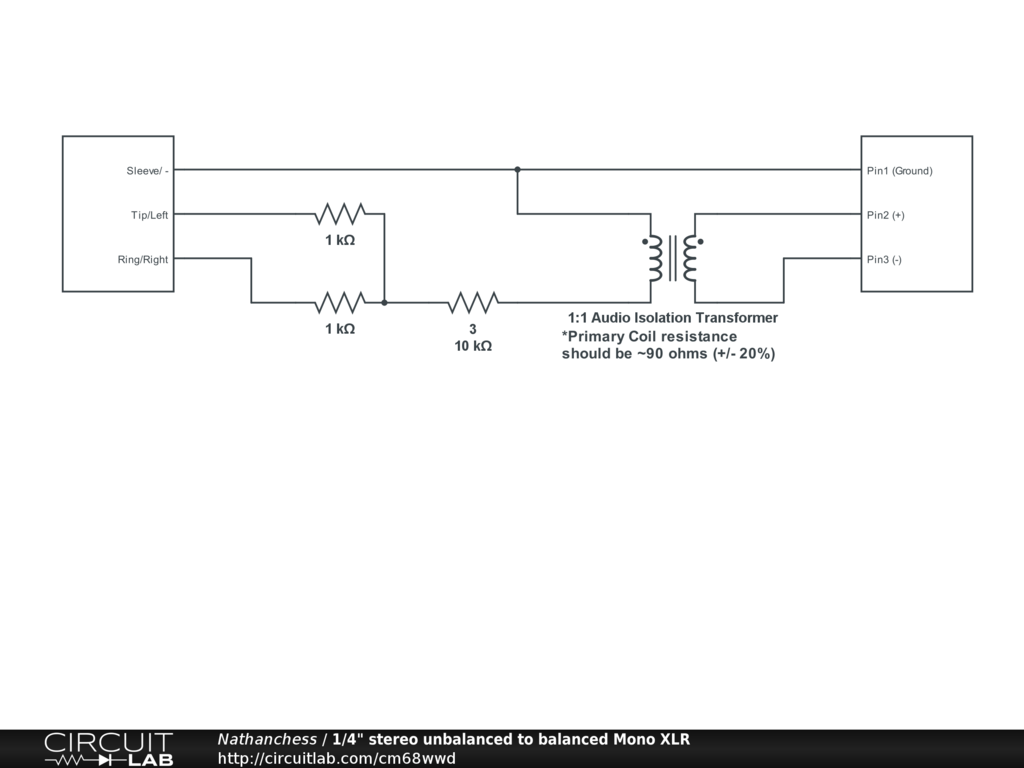

1/4" stereo unbalanced to balanced Mono XLR

This circuit is designed to take either a 1/8" stereo or 1/4" stereo unbalanced line level device to a balanced mic level XLR/TRS device.
