Mosfet H-Bridge PUBLIC

Created by
Created May 12, 2013
Last modified May 12, 2013
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

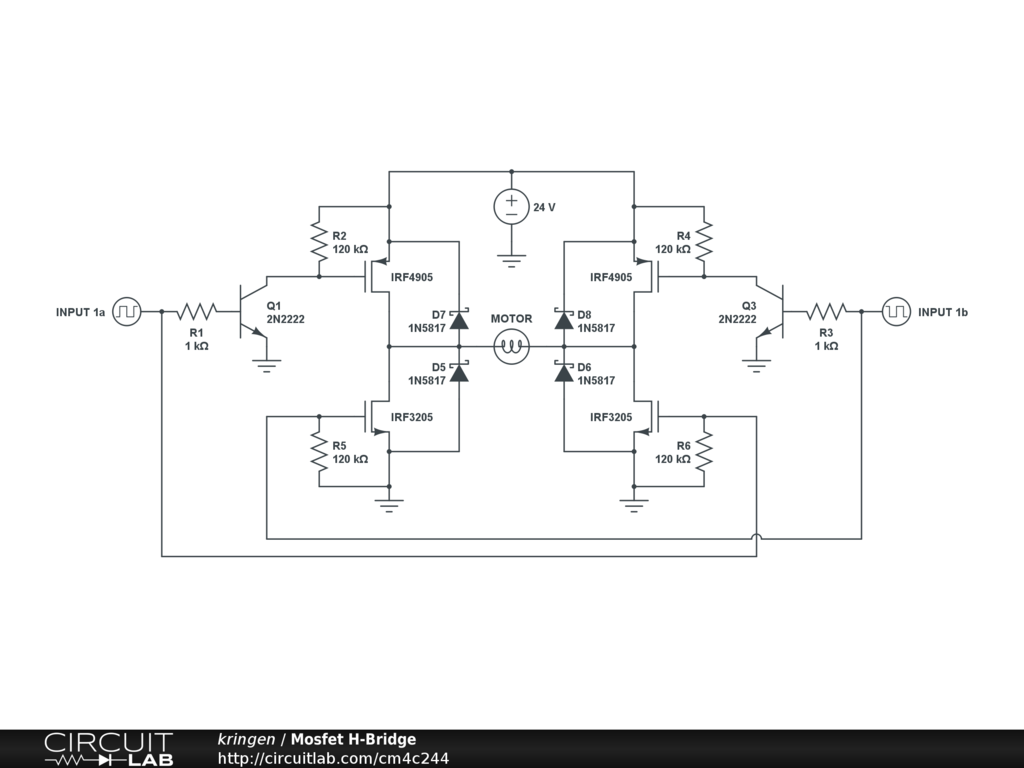

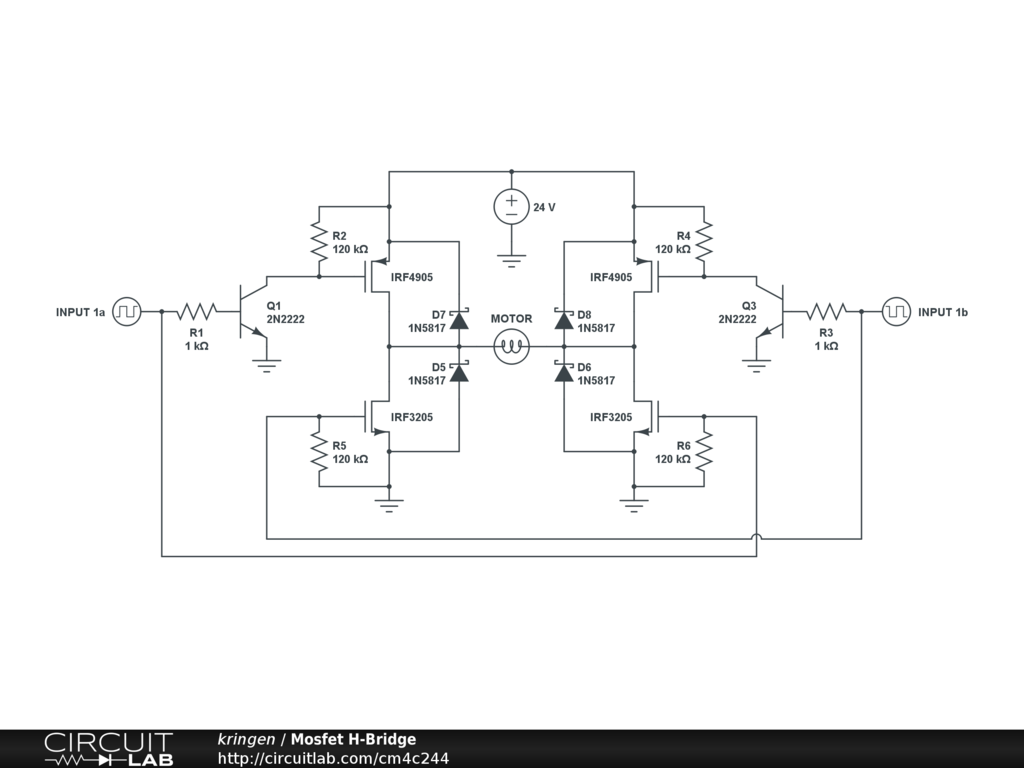

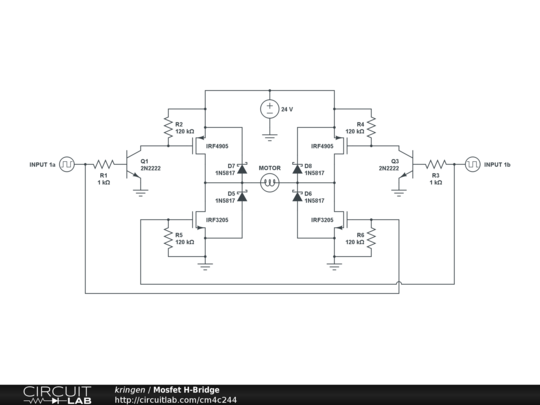

This H-Bridge can be controlled by an Arduino or other microcontroller with PWM. There are two connections per motor (Forward and Backwards).
