Low Pass Filter / Pulsed Input / OpAmp

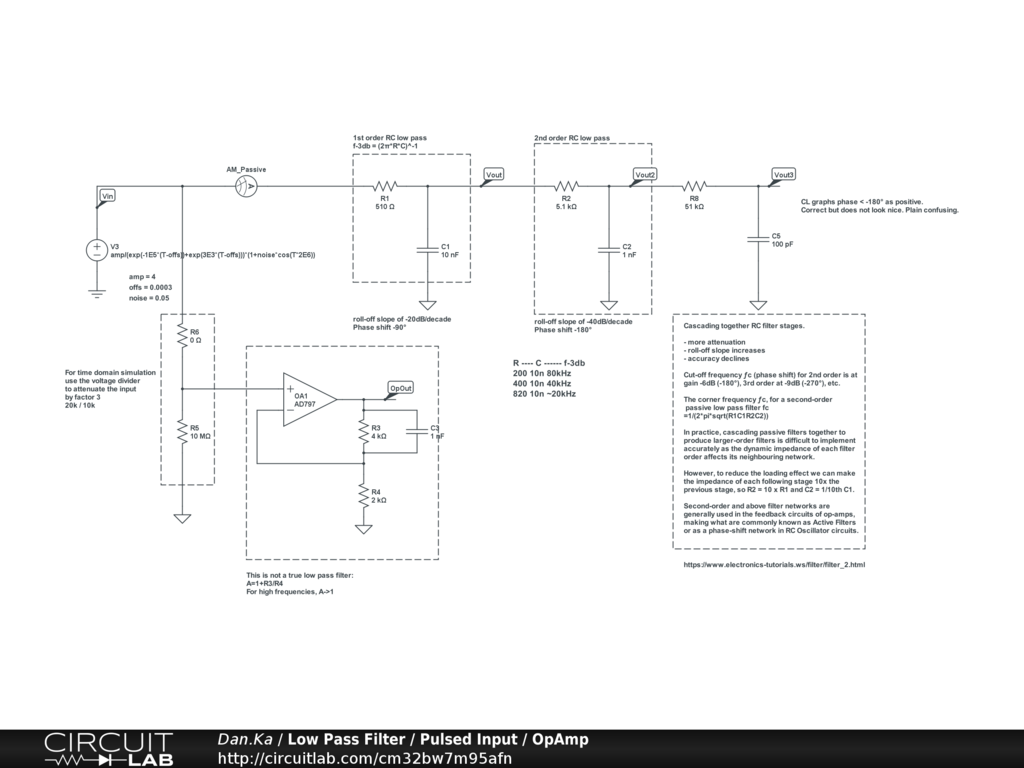

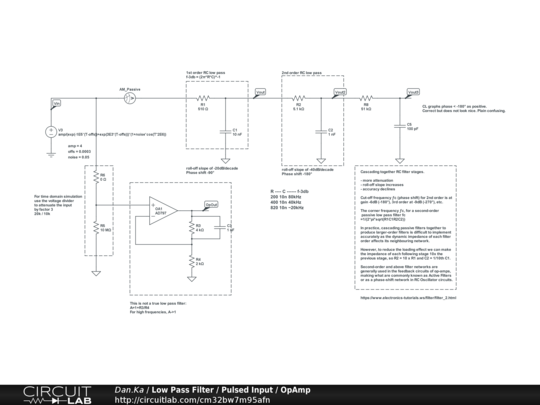

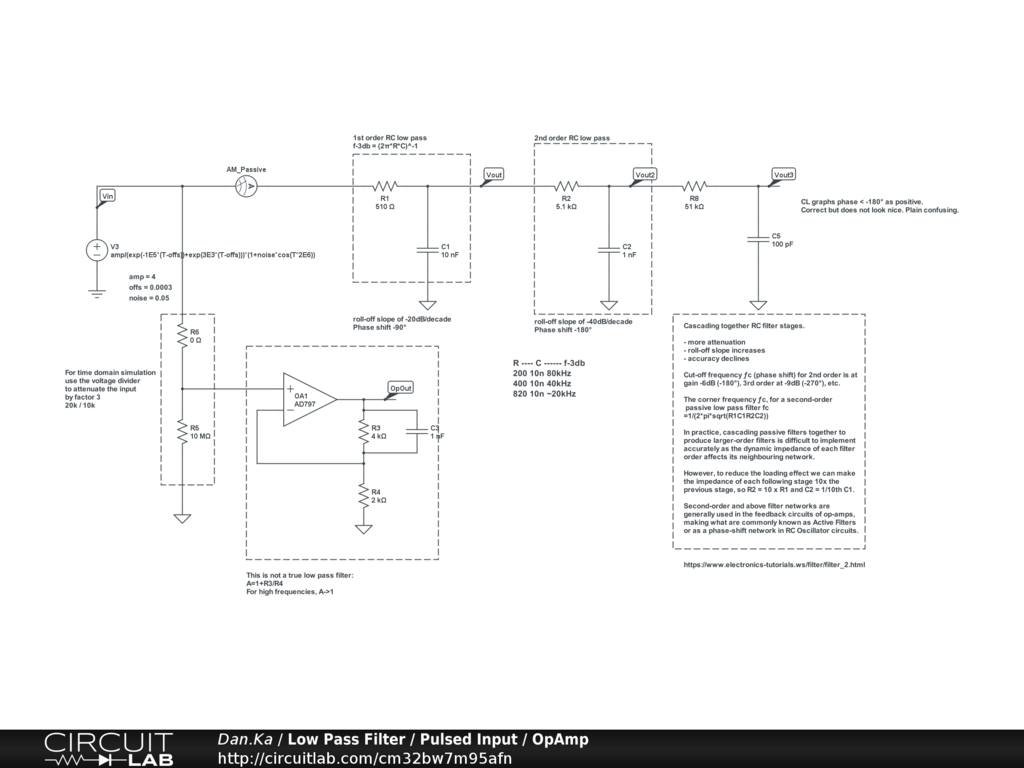

Cascaded RC low pass filter (LPF)
(ignore the OpAmp :-)

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

2nd order passive RC LPF

1st order "active" filter with op amp. Not an LPF, see frequency response.
