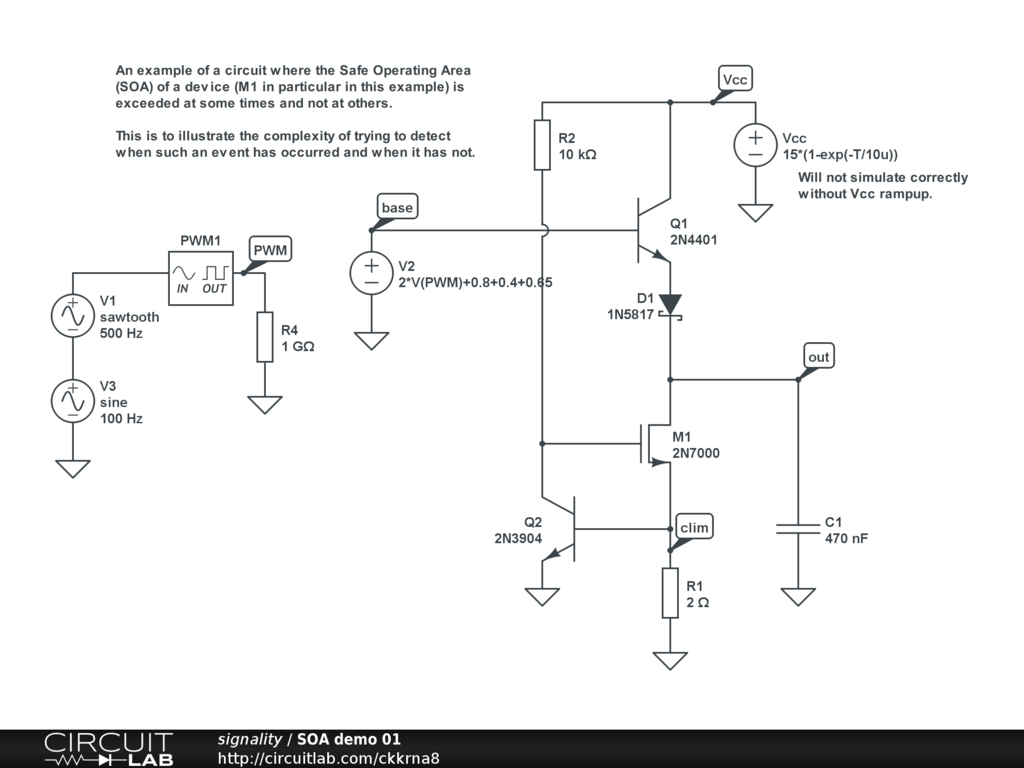

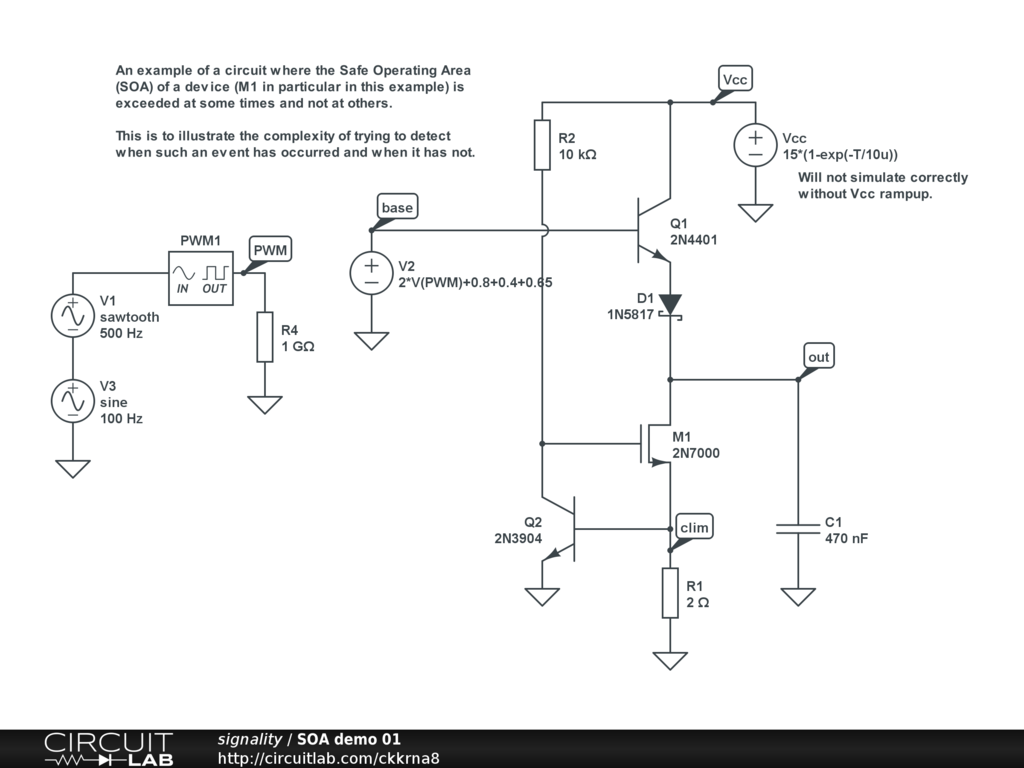

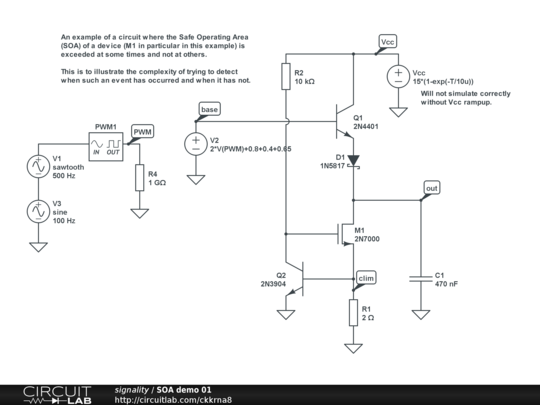

An example of a circuit where the Safe Operating Area
(SOA) of a device (M1 in particular in this example) is
exceeded at some times and not at others.
This is to illustrate the complexity of trying to detect
when such an event has occurred and when it has not.
Not provided.
