Trinket-Dynode PUBLIC

Created by
Created April 24, 2014
Last modified April 24, 2014
Tags high-voltage   pwm

Summary

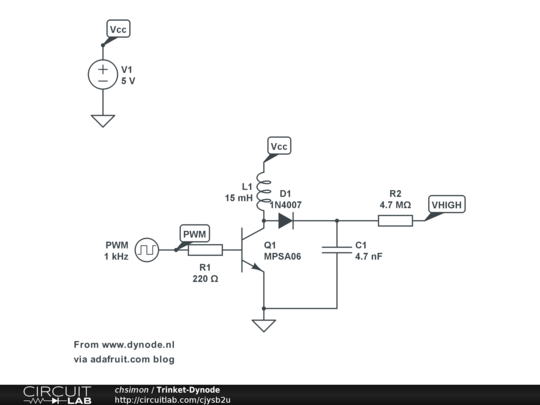

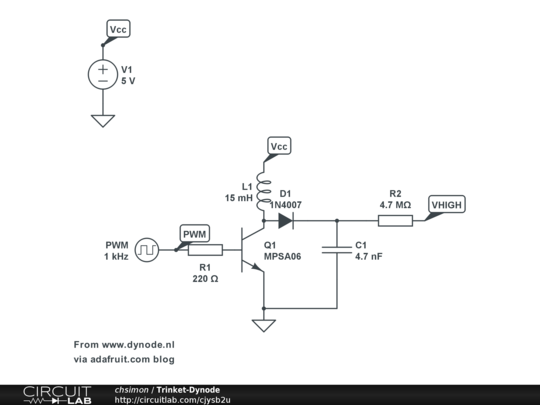

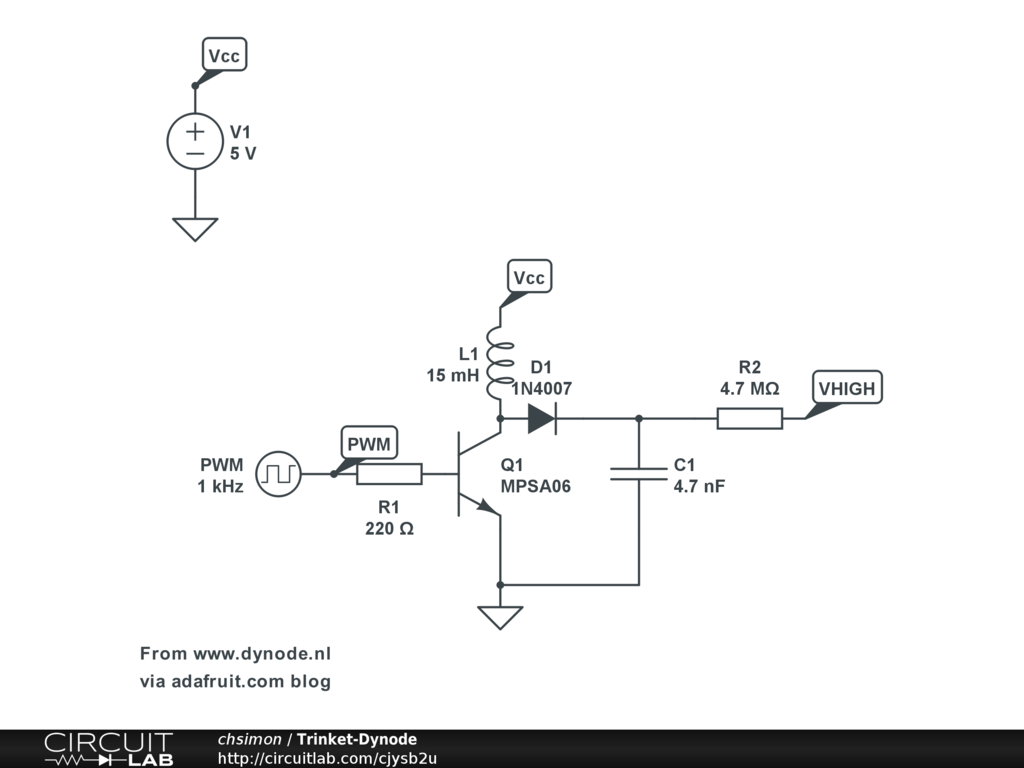

Very simple circuit for Geiger-Muller tubes.
PWM from Adafruit's Trinket micro-controller, inspired by
www.dynode.nl
