5V DC supply -- half wave

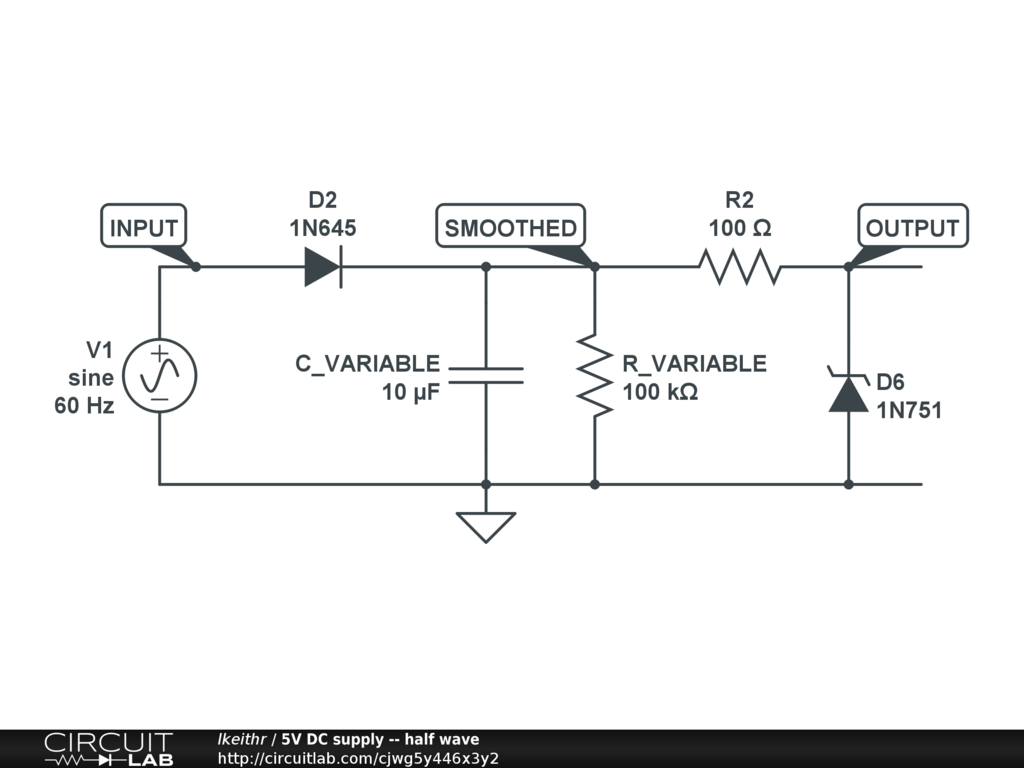

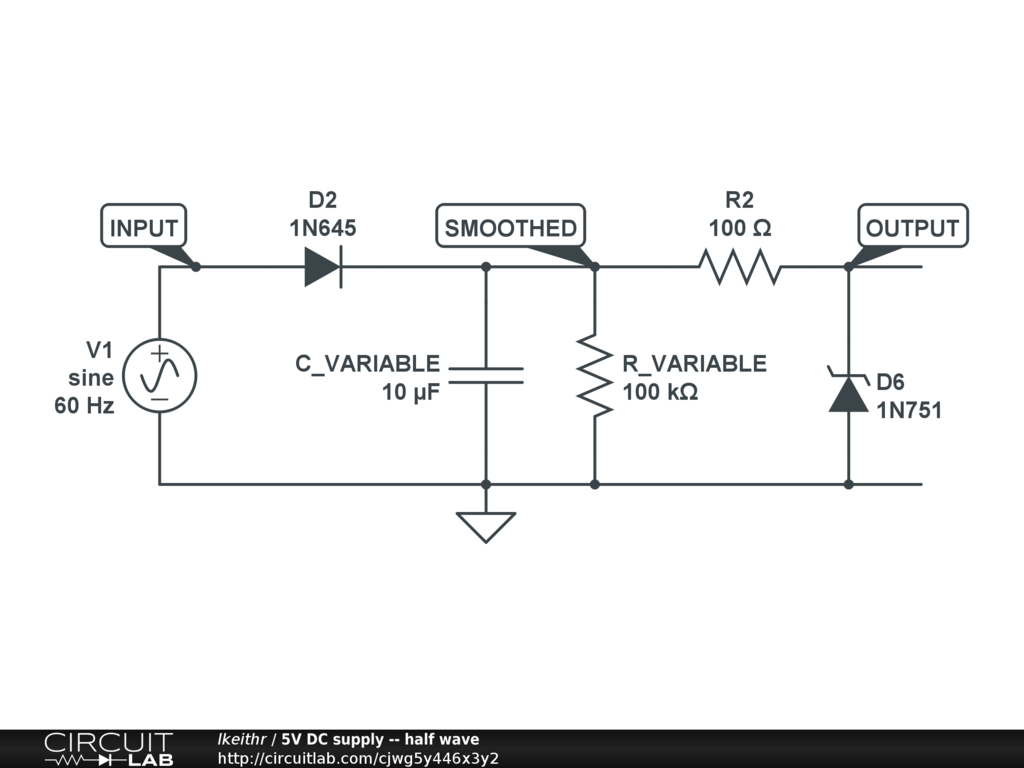

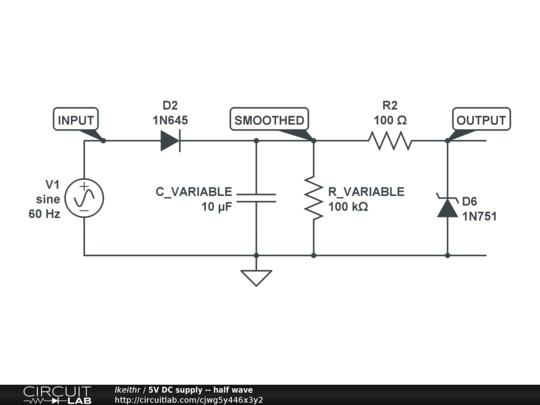

5V DC power supply from a 10Vpk AC input. Uses a half-wave rectifier to go from AC to DC and a 5 V zener diode to step down to 5V DC.
