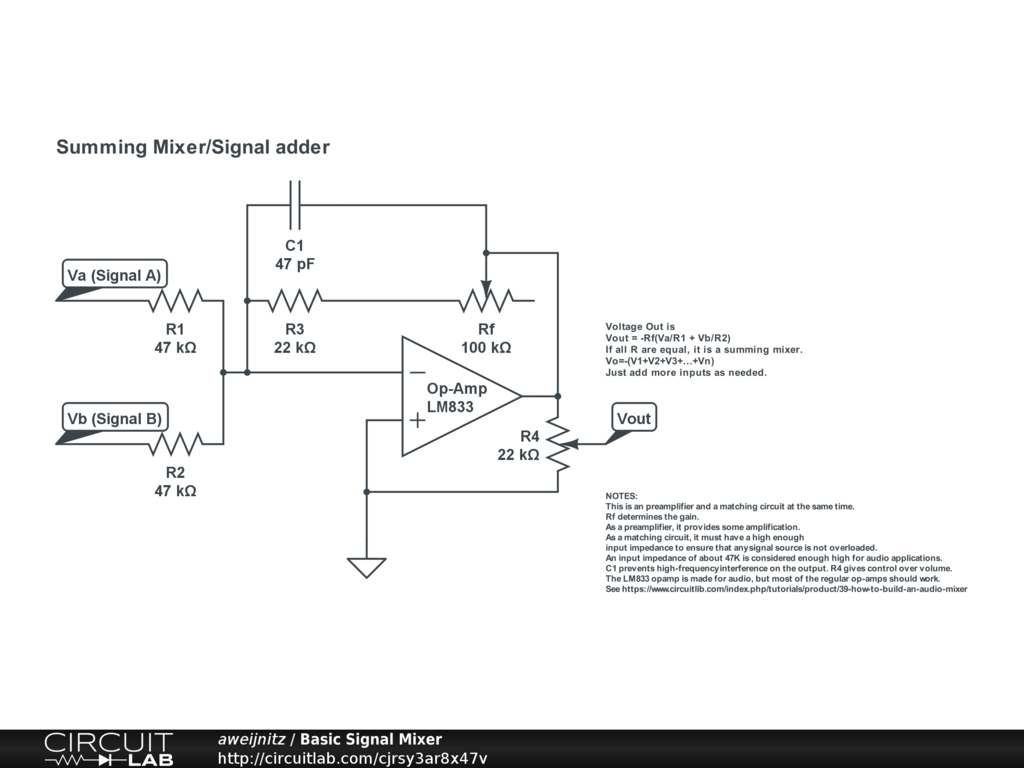

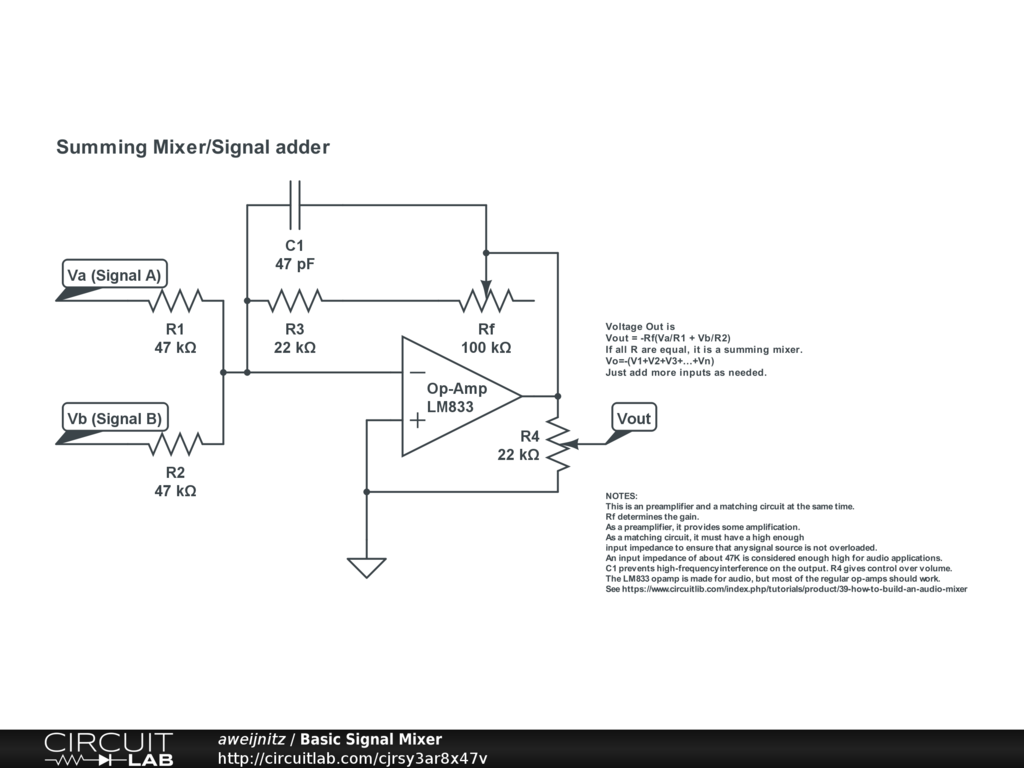

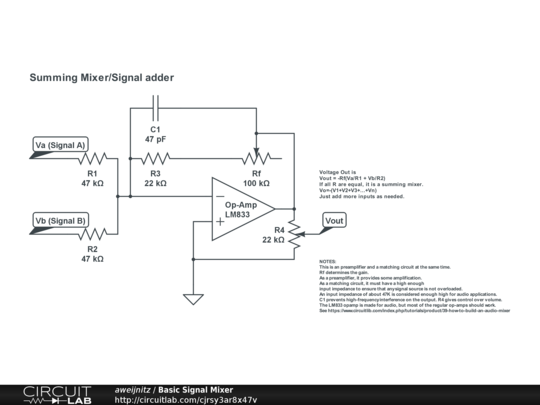

Basic Signal Mixer

Mixer based on this article. https://www.circuitlib.com/index.php/tutorials/product/39-how-to-build-an-audio-mixer
