dc voltage pumper

Created by	suntop
Created	December 14, 2012
Last modified	December 16, 2012
Tags	No tags.

Summary

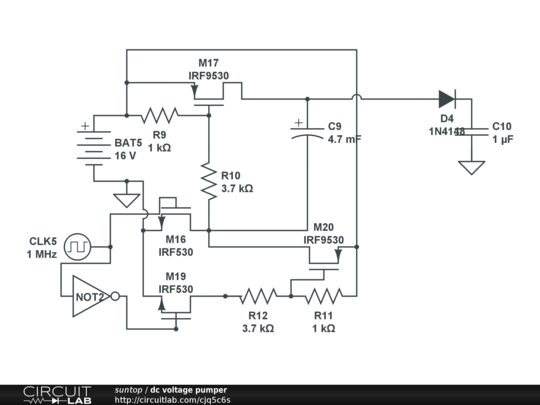

This circuit is a DC Voltage pumping circuit which doubles the supply voltage. It is just the test model, actual design will replace the Relay with 2+2 n-Mos & p-MOS for tick-tack free switching. Clocking can be done using 555 timer in astable mode. Anyway, it can also be used as up to 2X boost regulator

Link & Share

Copy and paste the appropriate tags to share.

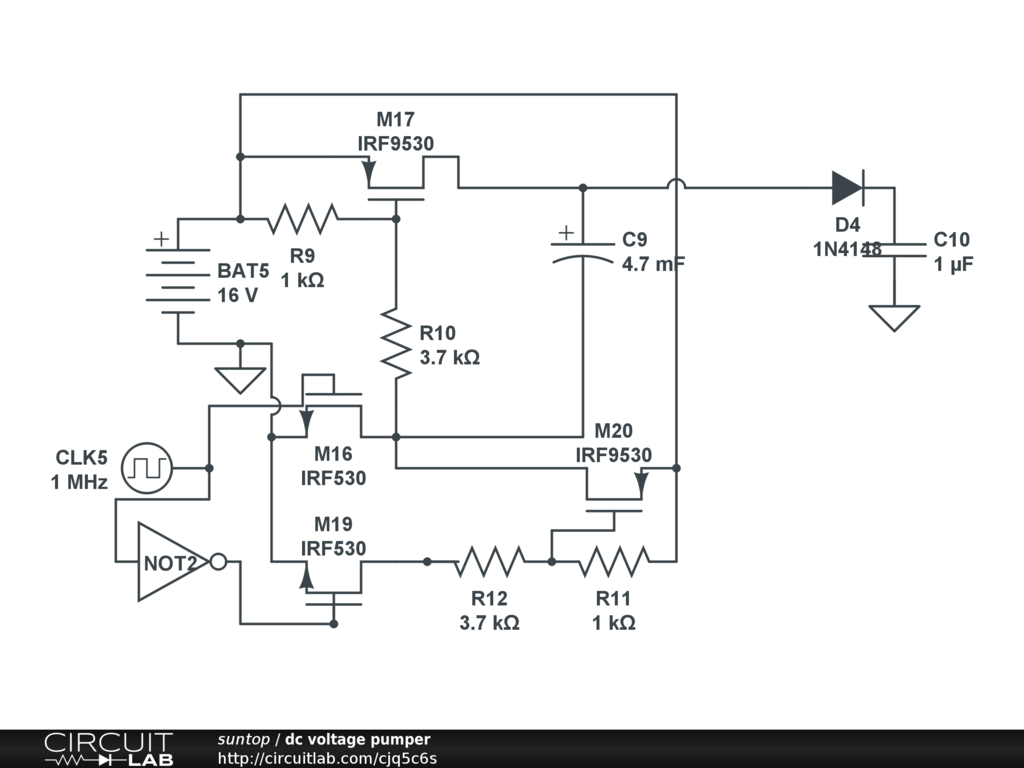

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

Description

Not provided.

Comments

I notice when the Relay is Open, both sides of C2 are Grounded.	by Optionparty December 14, 2012
@Optionparty, Thanks for noticing that serious flaw, I'm trying to correct it !	by suntop December 16, 2012

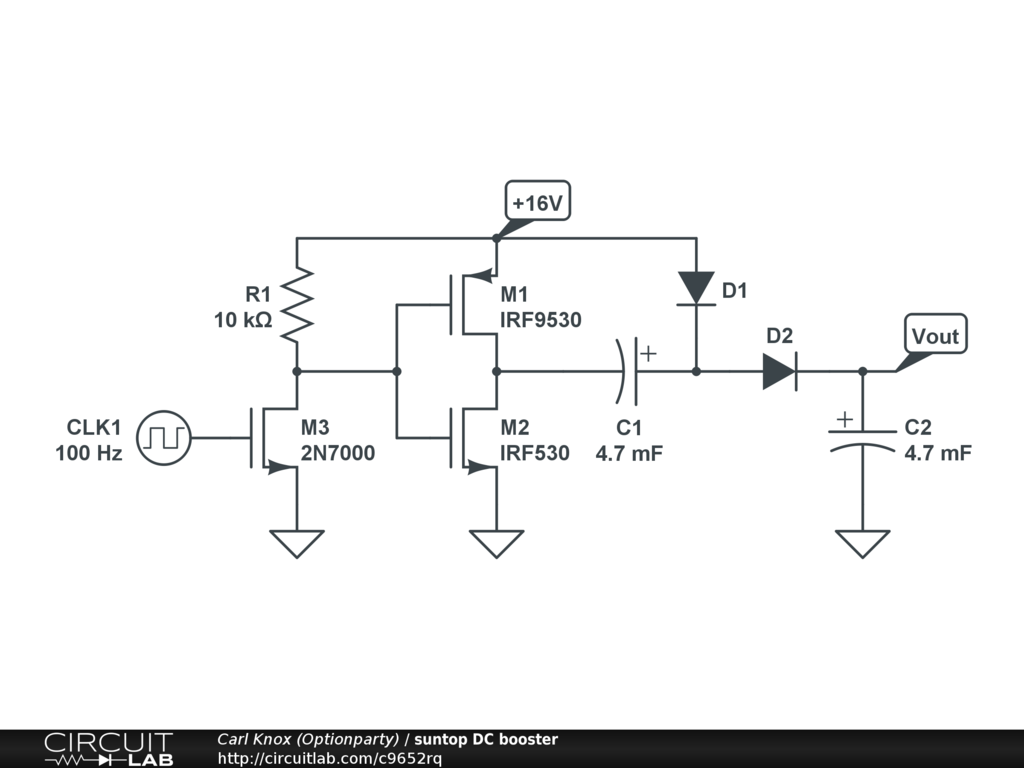

Equivalent switch and Redraw. (for my understanding) Question; Why not a flip/flop & voltage doubler ?	by Optionparty December 16, 2012

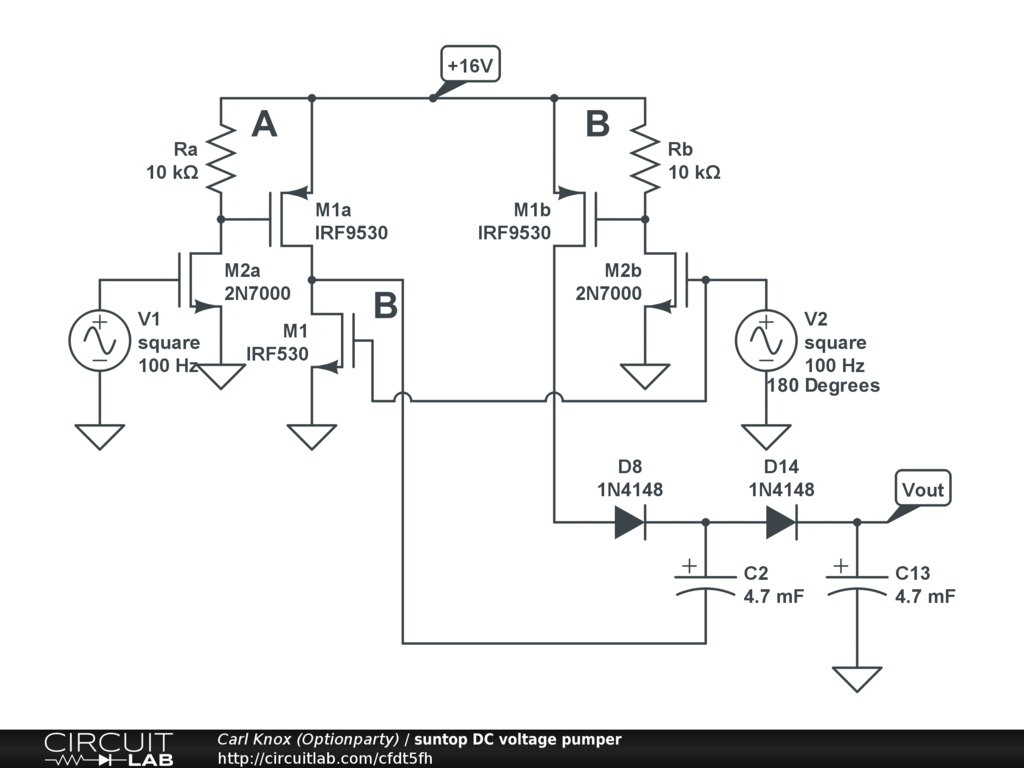

The above circuit works. I used 2 square wave signal sources, 180 degrees out of phase of each other. The NotBuffer created a short spike, that may not cause any problems.	by Optionparty December 18, 2012

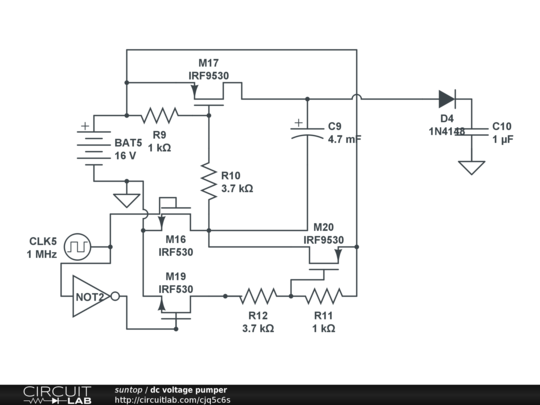

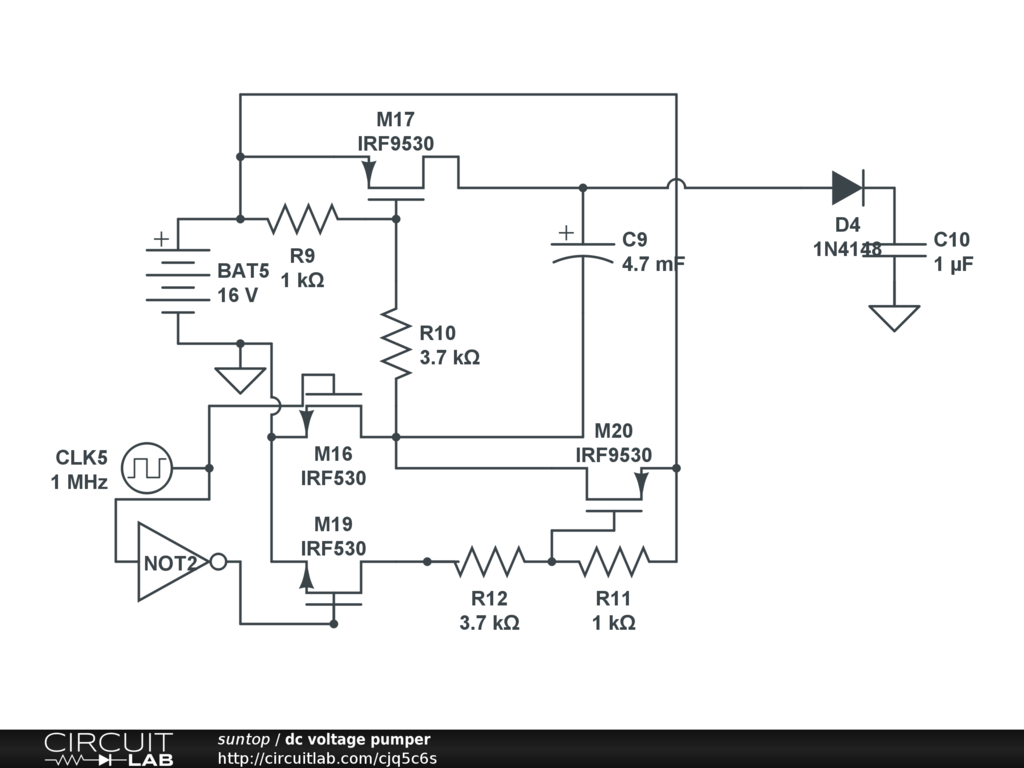

Simplified Thank you for this opportunity.	by Optionparty December 19, 2012
