spark gap 01

Behavioural spark gap.

Adapted for CL from analogspiceman's LTspice circuit:

http://ltwiki.org/files/adventures_with_analog/SparkGap.asc

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

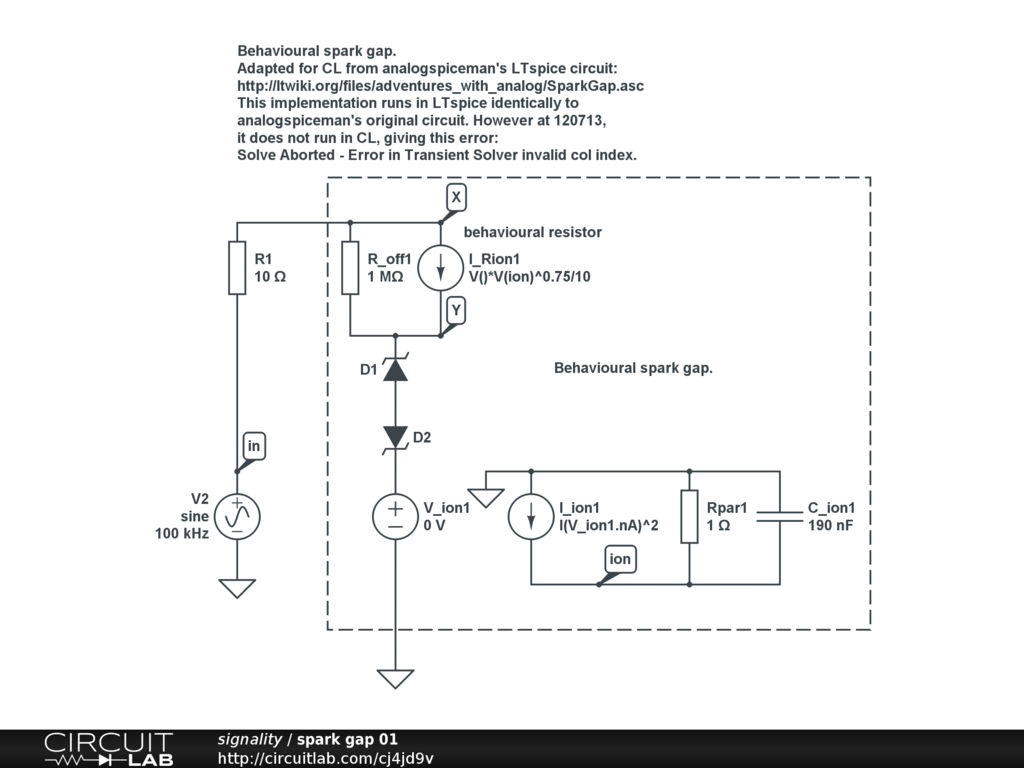

Behavioural spark gap.

Adapted for CL from analogspiceman's LTspice circuit:

This implementation runs in LTspice identically to analogspiceman's original circuit. However at 120713, it does not run in CL, giving this error:

Solve Aborted - Error in Transient Solver invalid col index.

No comments yet. Be the first!
