5V to 3V3 on diodes PUBLIC

Created by
Created May 16, 2013
Last modified May 16, 2013
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

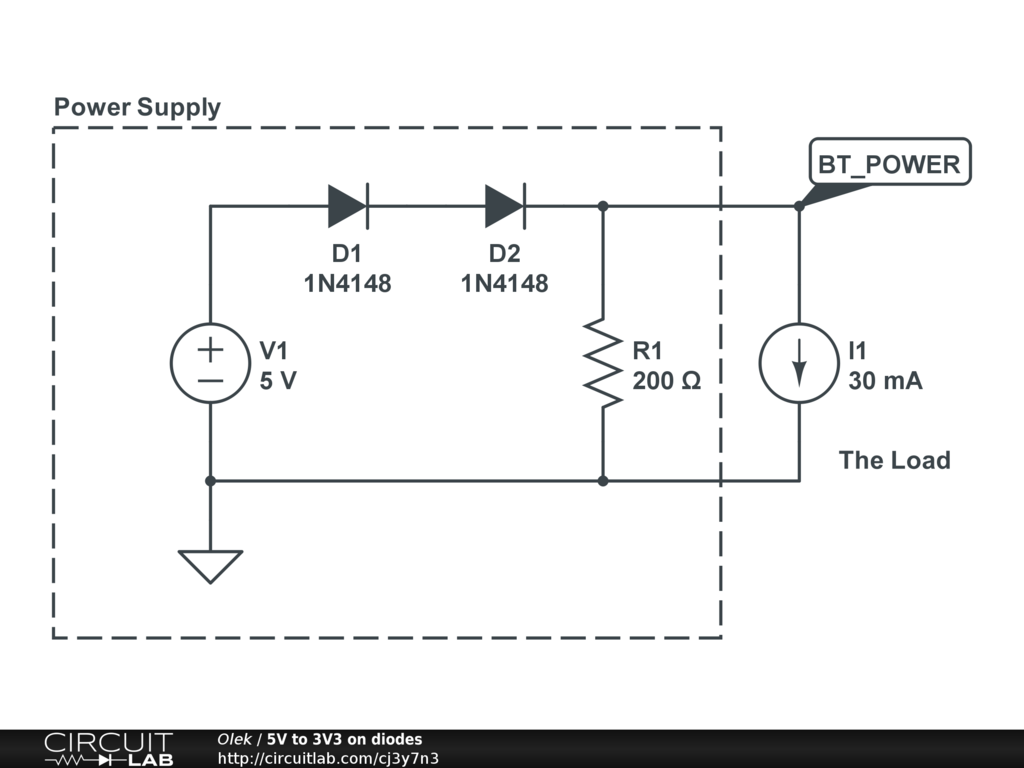

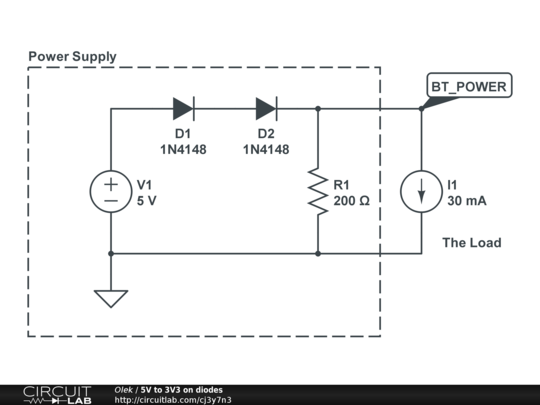

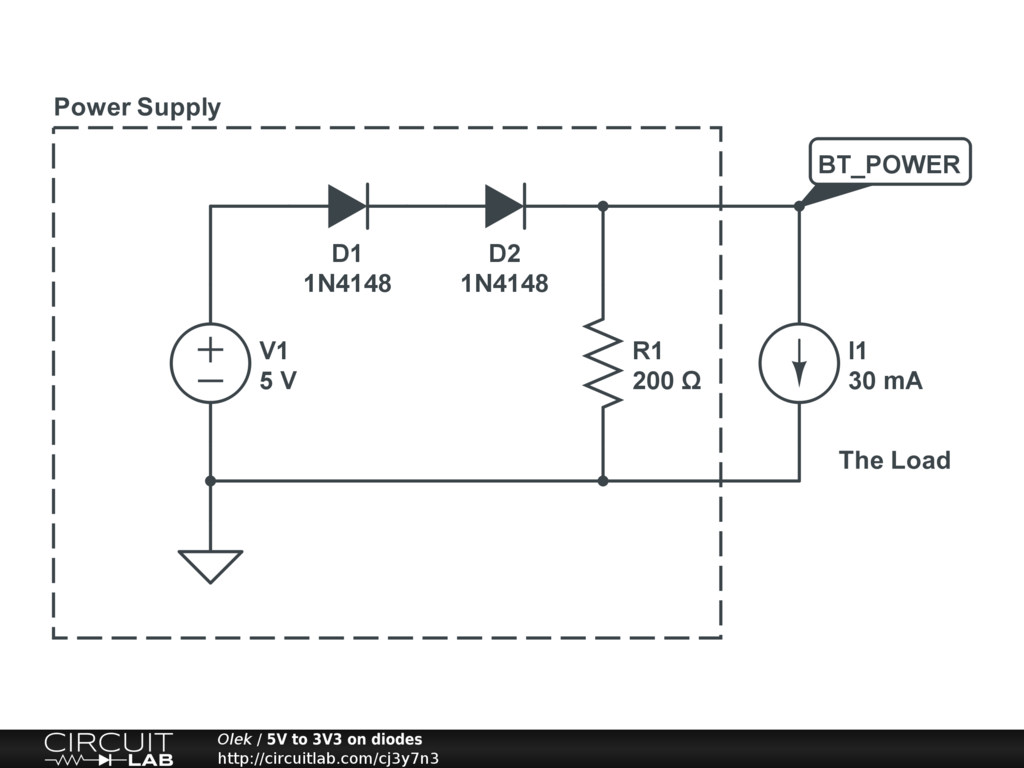

The circuit presents concept of reducing power supply voltage from 5V to 3V3 using two diodes. The DC Sweep simulation presents the "output" voltage and source current in function of load current.
