PD controller with OpAmps

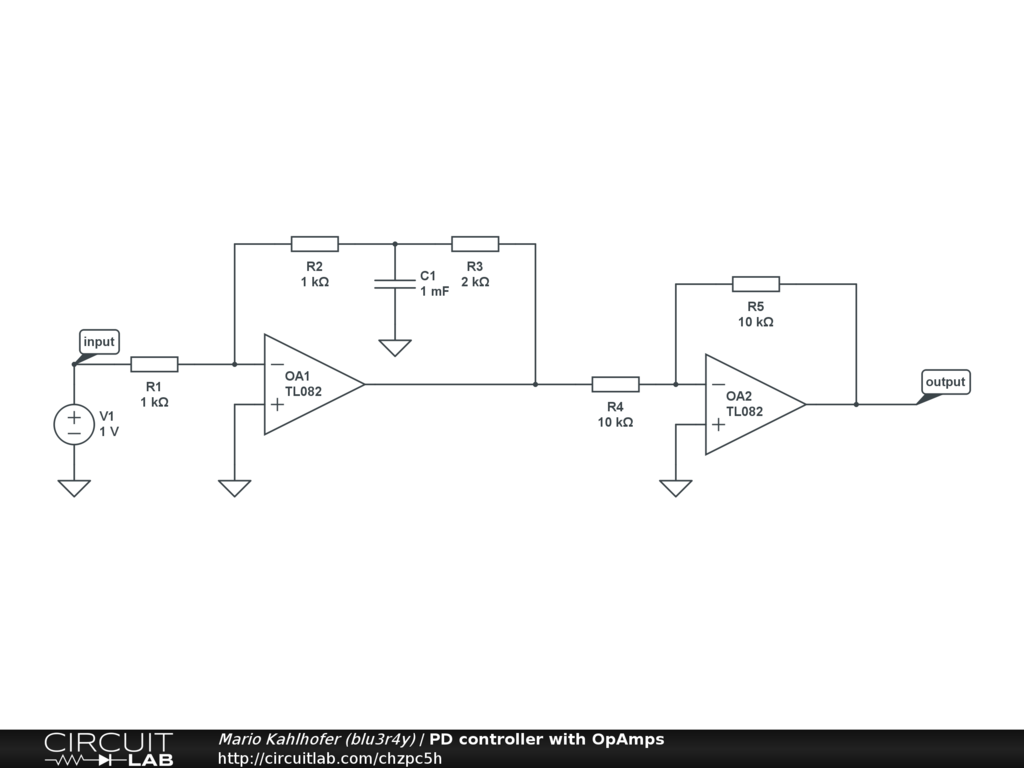

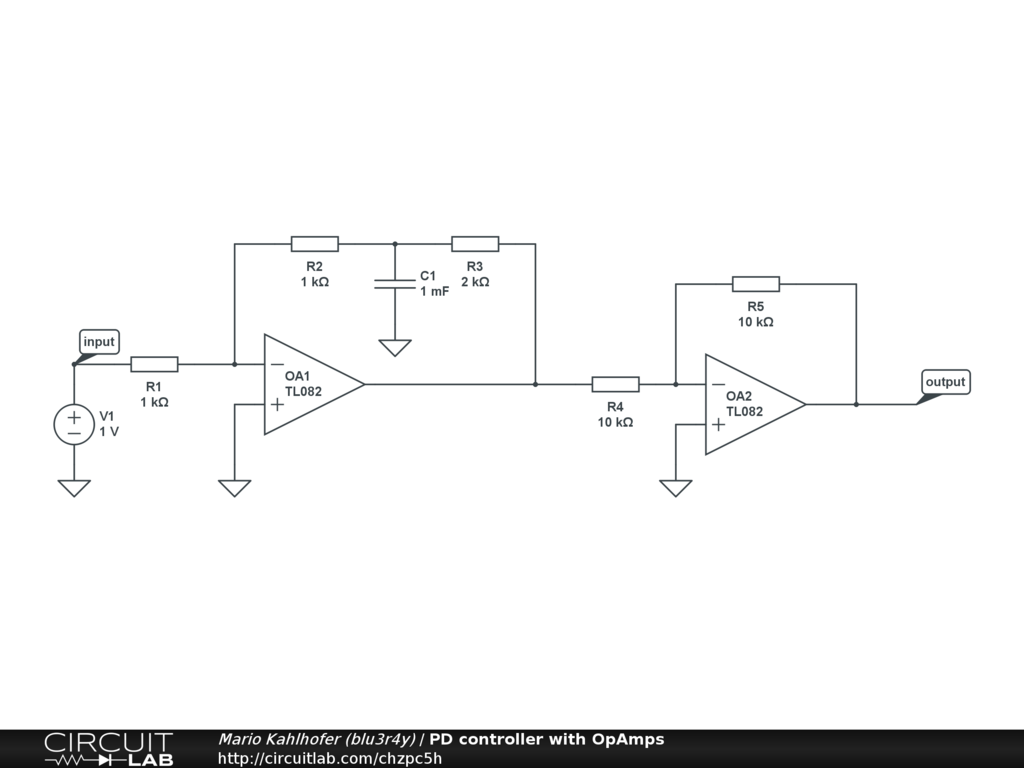

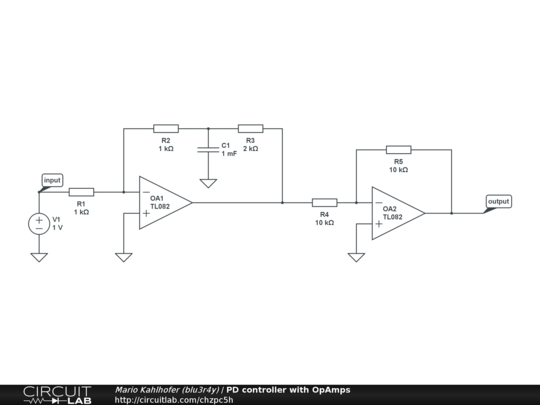

This example describs a PD controller with k = 3 and T = 2/3, developed as a OpAmp circuit.
