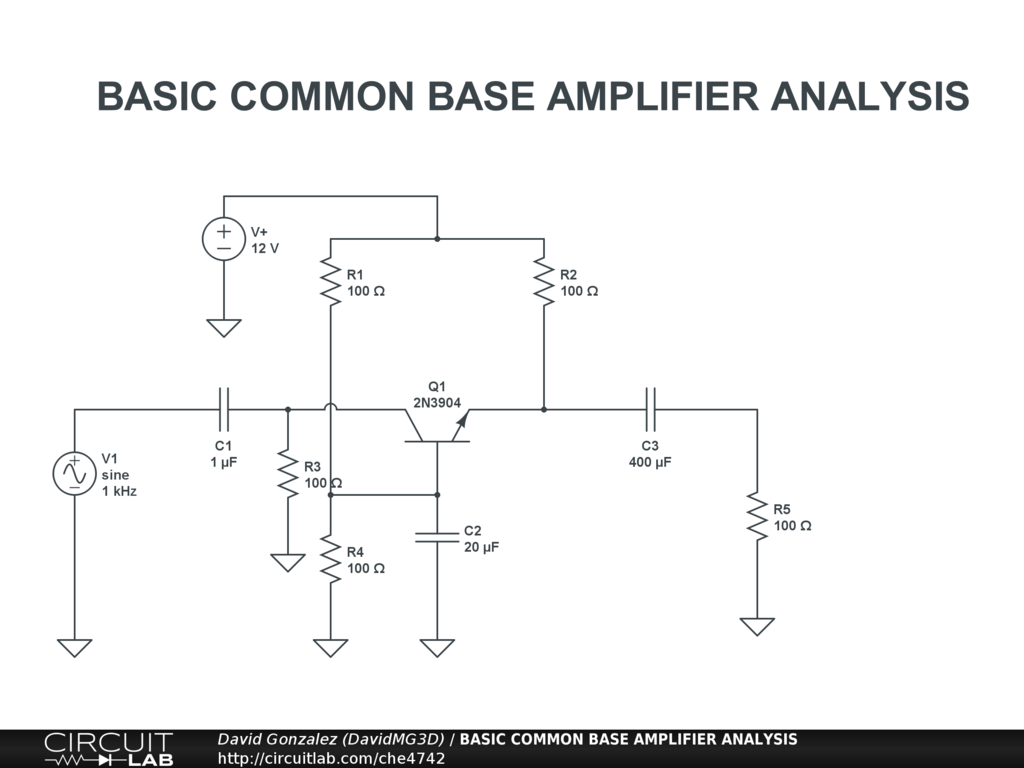

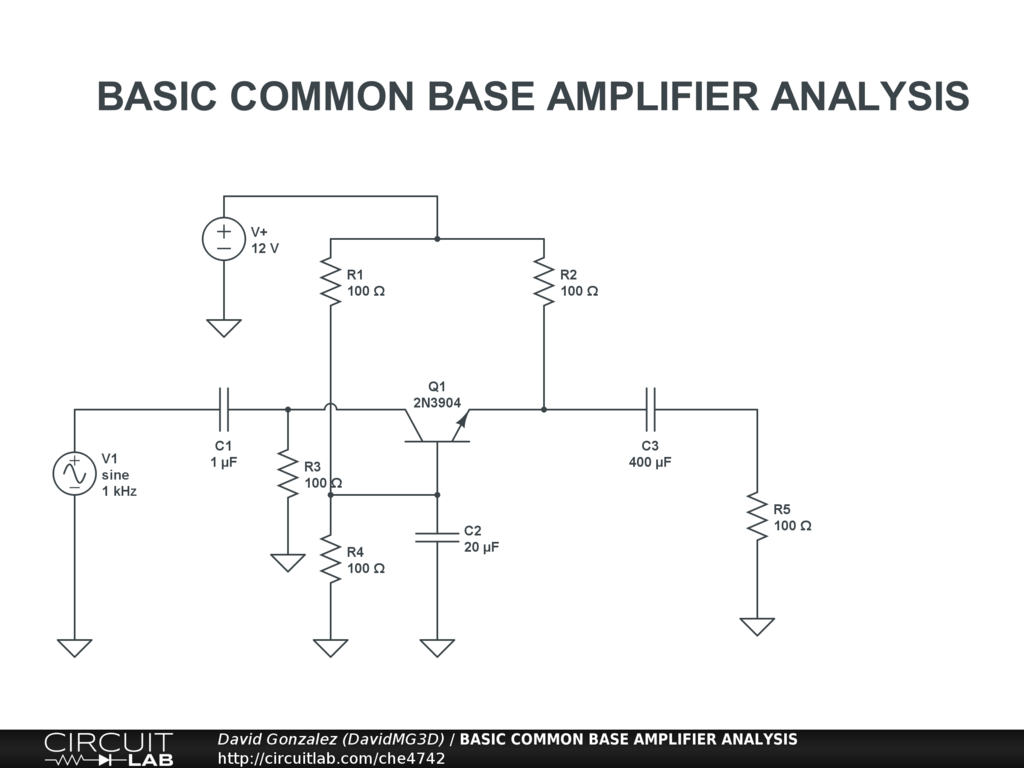

THE TYPE OF CIRCUITS I LEARNED IN COLLEGE. I AM ANALYZING THIS CIRCUIT A LITTLE CLOSER NOW. I WISH CIRCUITLAB HAD A NOISE SIMULATION. I WOULD LIKE TO MEASURE THE NOISE LEVELS AT THE BASE OF THE TRANSISTOR ABOVE THE CAP TO GROUND. THIS IS IN THE HOPES OF WORKING OUT A CLEAN SIGNAL REGULATOR.
This is a circuit that does not work nor does it give a meaningful output voltage. yet I am analyzing the low signal voltages detected.
