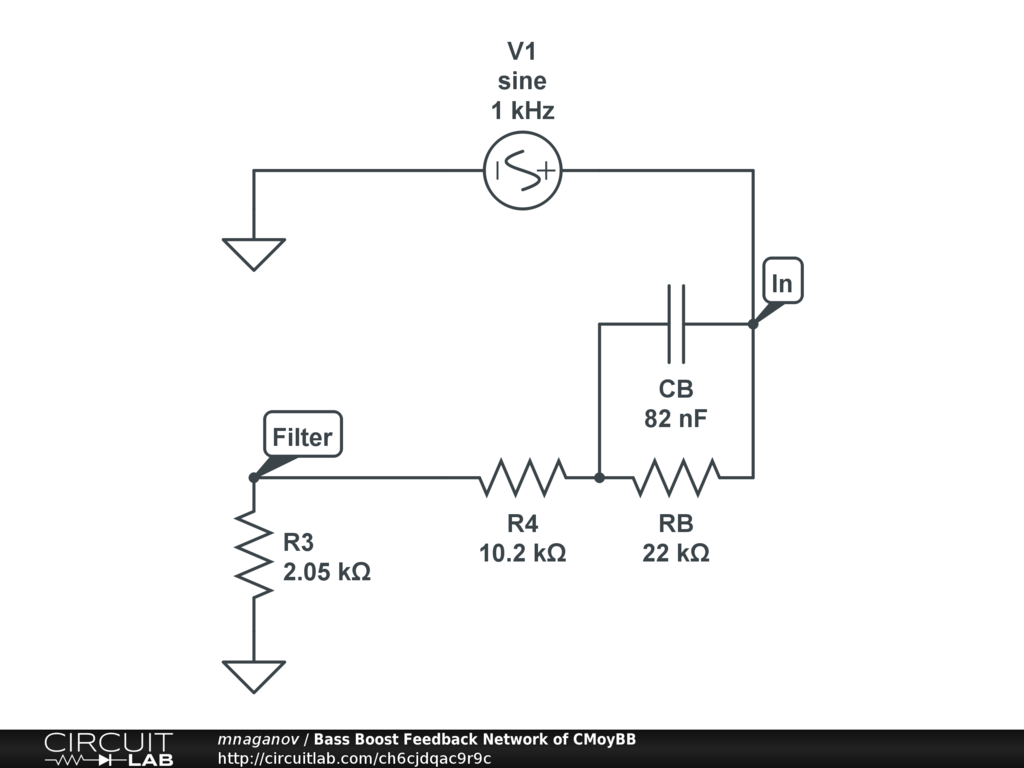

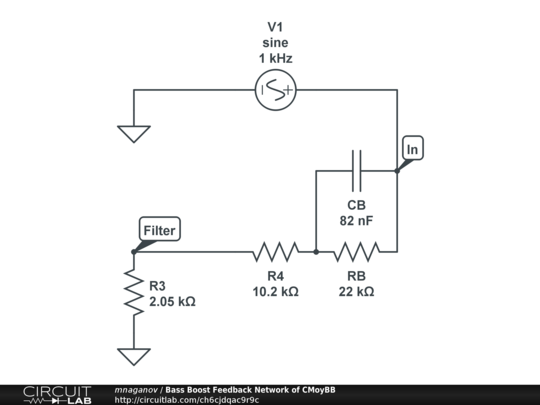

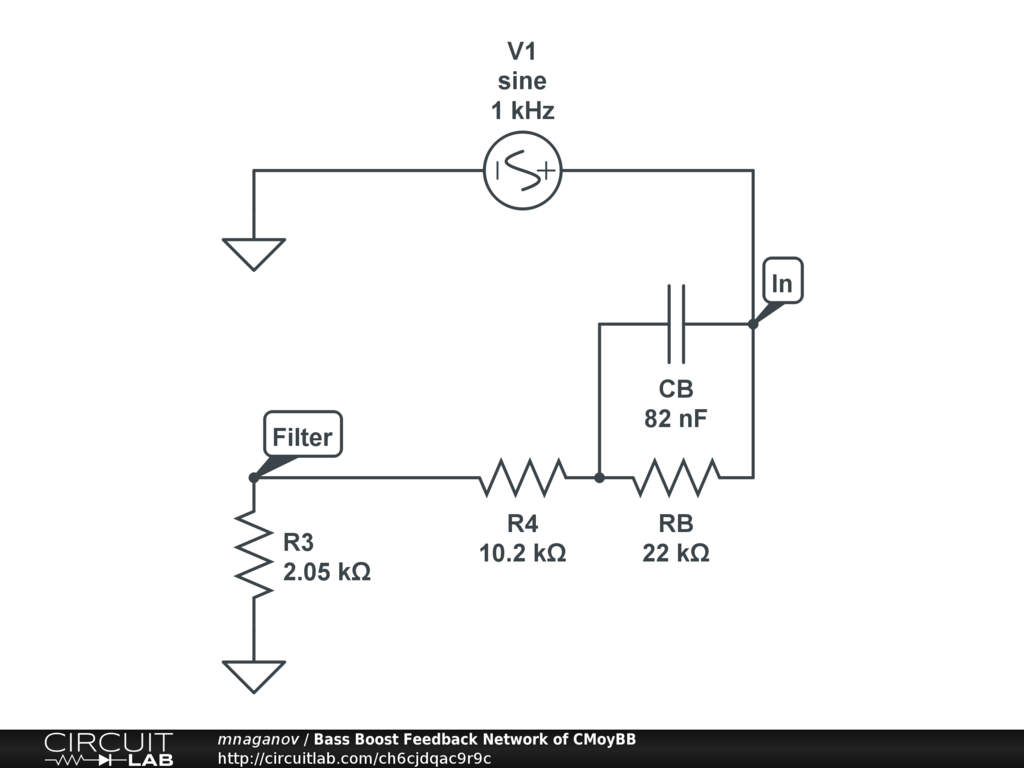

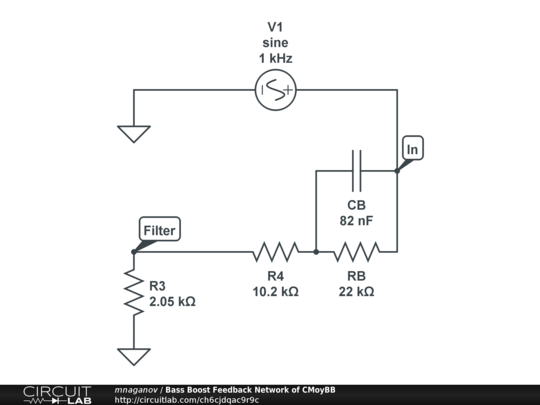

Bass Boost Feedback Network of CMoyBB. This is a high-pass shelf filter that is used in the negative feedback loop.
