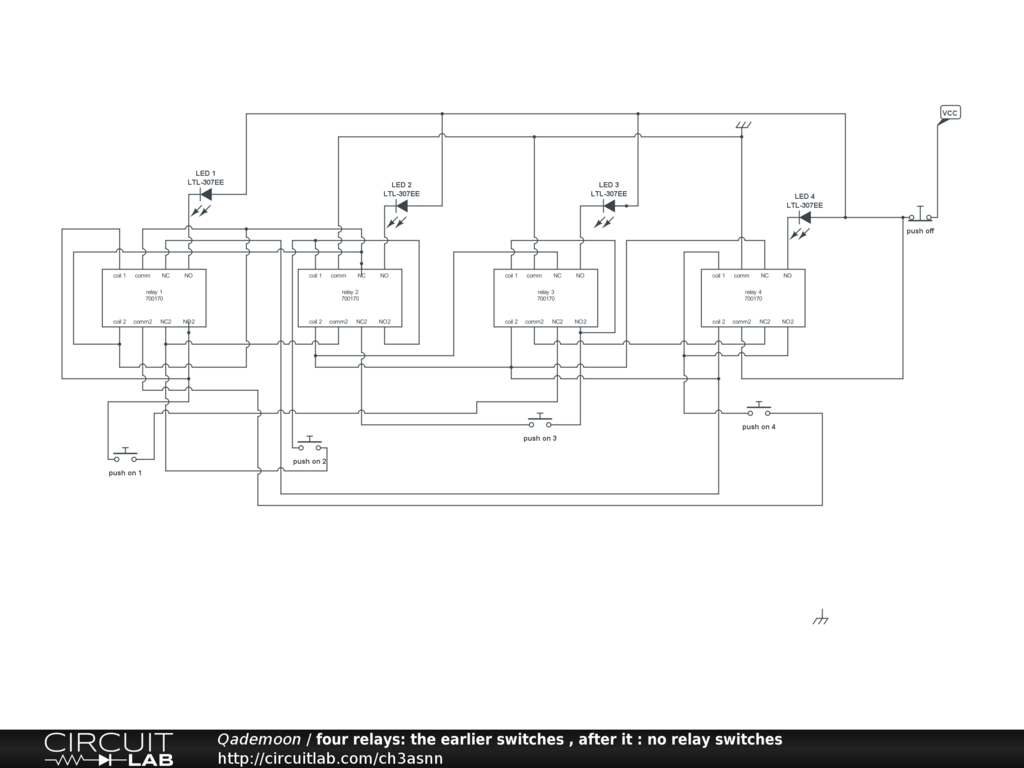

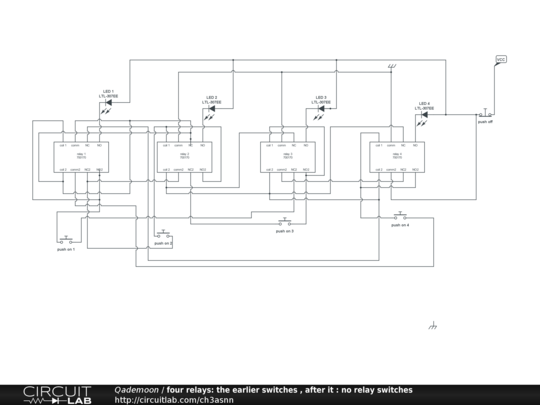

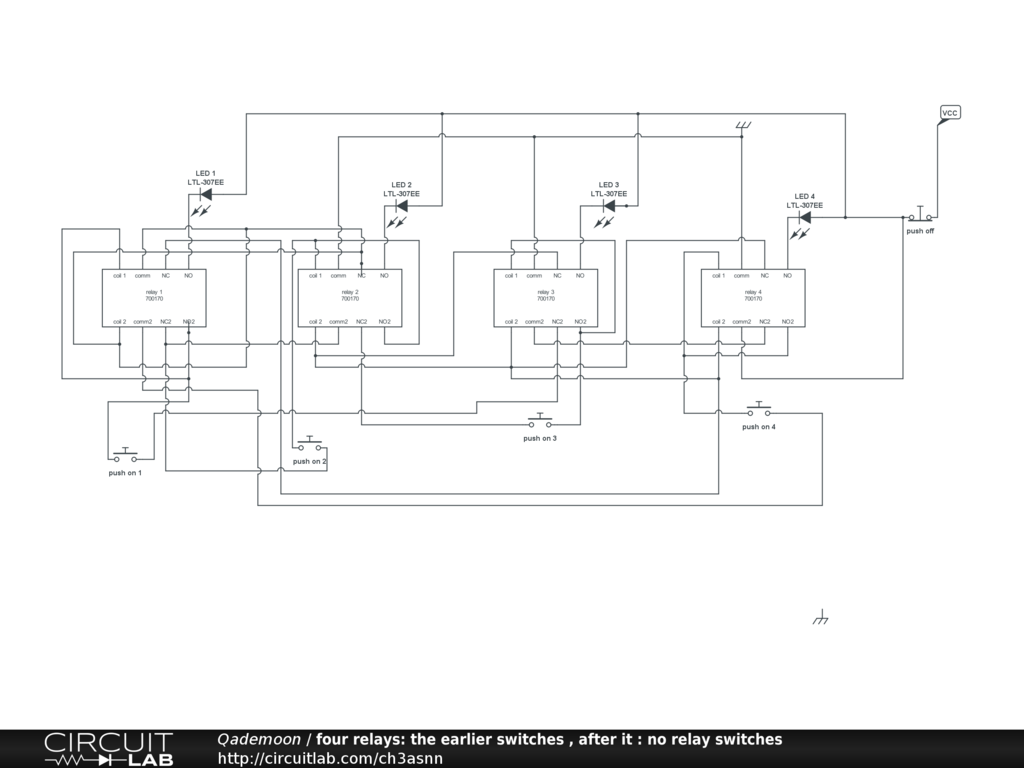

four relays: the earlier switches , after it : no relay switches

a circuit of four relays managed to make the earlier switch ( in time ) pressed then dont allow any one to press after him using relays 700170 DPST
