Logic gates test

Created by	Don Alford (Don.A)
Created	July 16, 2012
Last modified	August 22, 2012
Tags	and logic-gates nand nor or xnor xor

Summary

Use DC solver to derive and understand the truth tables of logic gates.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

Description

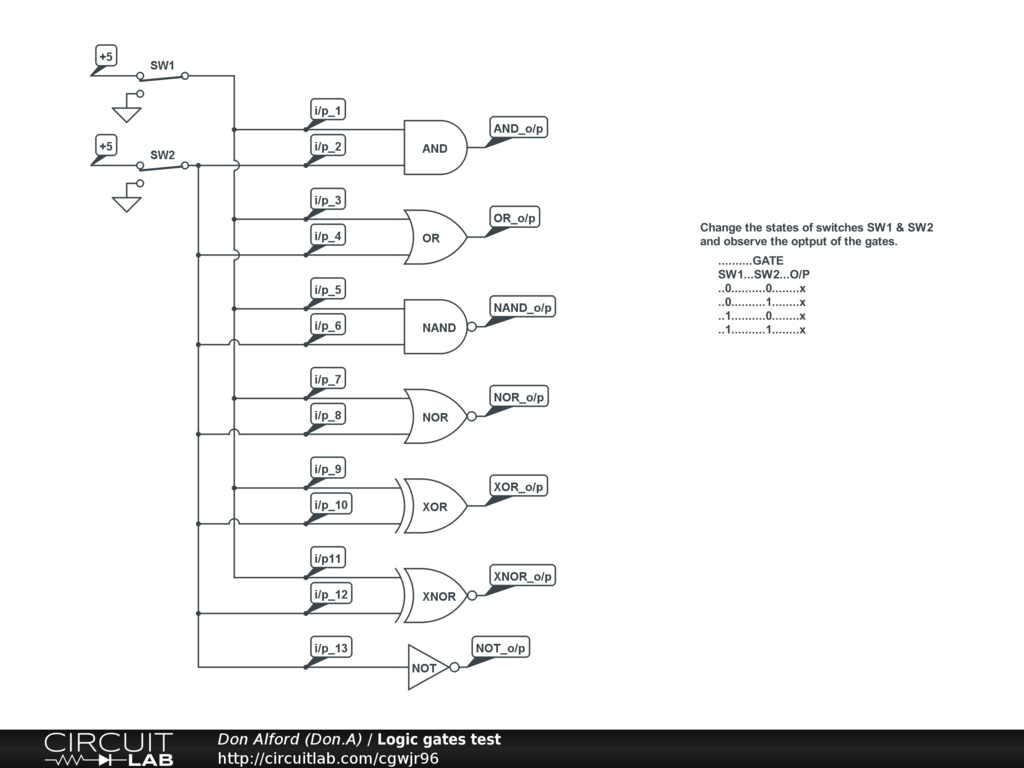

The switches can be used to change the inputs to each of the gates - click on the switch and change the connection - DC Solver is used to view the input and output voltages.
