| Created by |
|
| Created | September 16, 2012 |
| Last modified | September 19, 2012 |
| Tags | audio di impedance-matching re-amp |
Not provided.

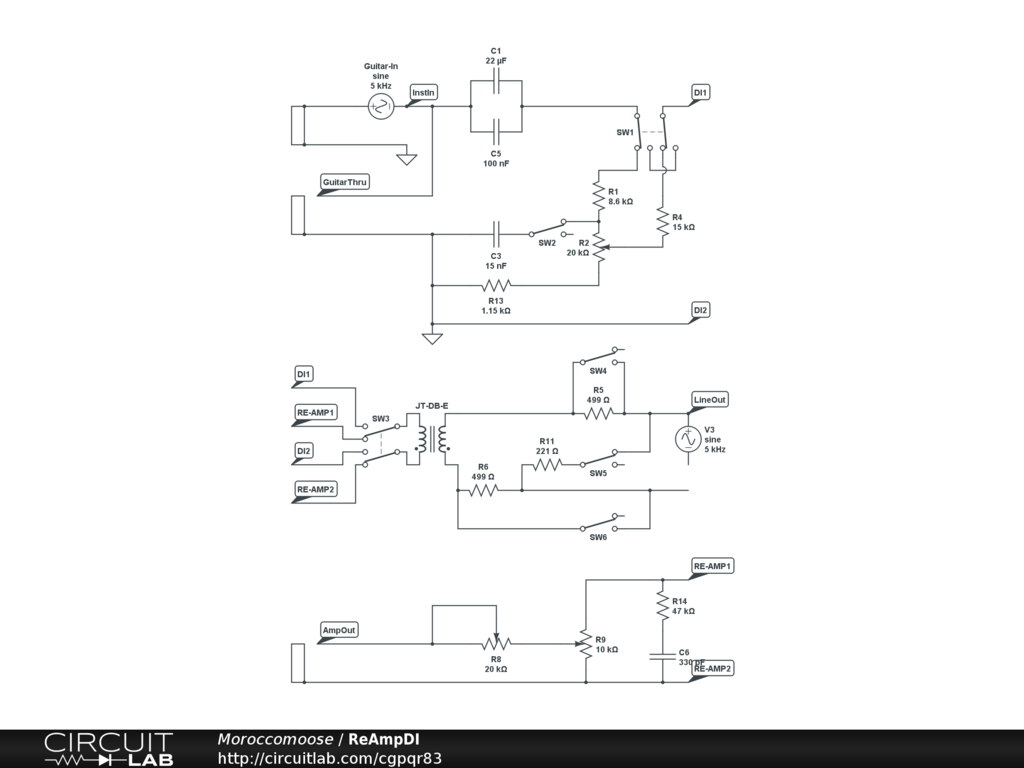

A combined Direct Injection and Re Amping circuit. Converts instrument level high impedance signals to balanced line level signal. Flick the switch and it converts line level back to high impedance instrument level. This allows the the signal from an electric guitar or keyboard to be recorded straight into a DAC without pre amp. Then when it is socially acceptable, you can play the performance into any amp of your choosing.
