Digital button array PUBLIC

Created by
Created April 17, 2013
Last modified April 17, 2013
Tags arduino   array   digital   pushbutton

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

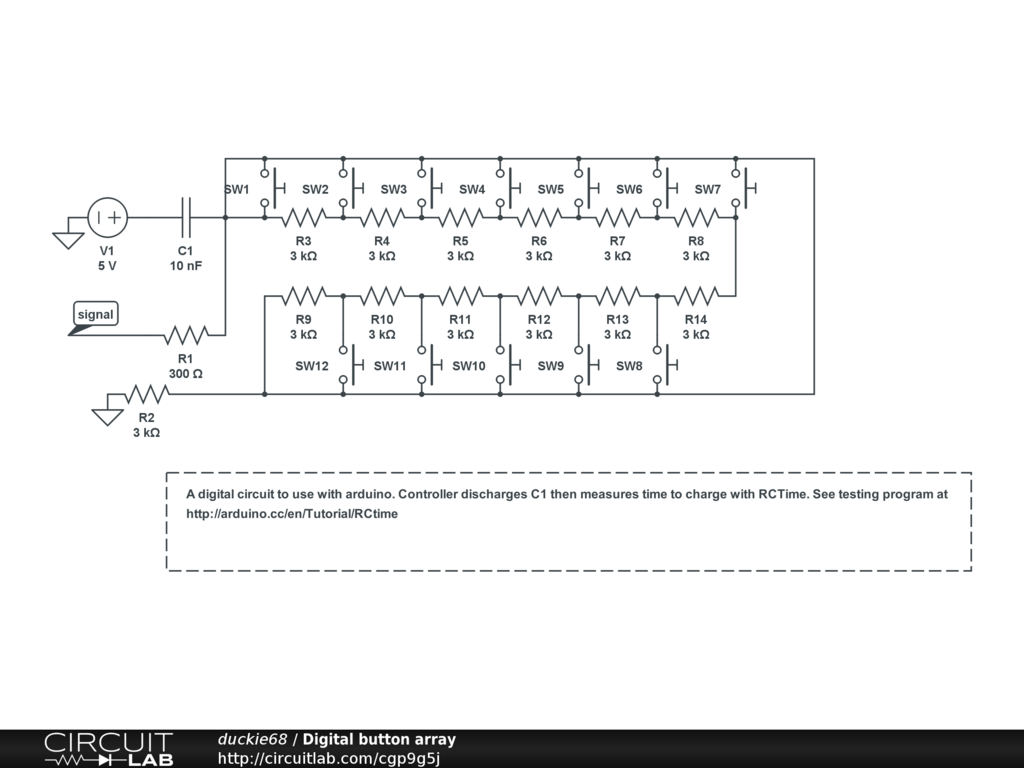

This is a simple digital pushbutton array. Pressing a button will change the charge time for the capacitor, which can be measured by the arduino using RCTime. Also see http://txapuzas.blogspot.com/2010/09/papertecladorc-varios-pulsadores.html for more information.
