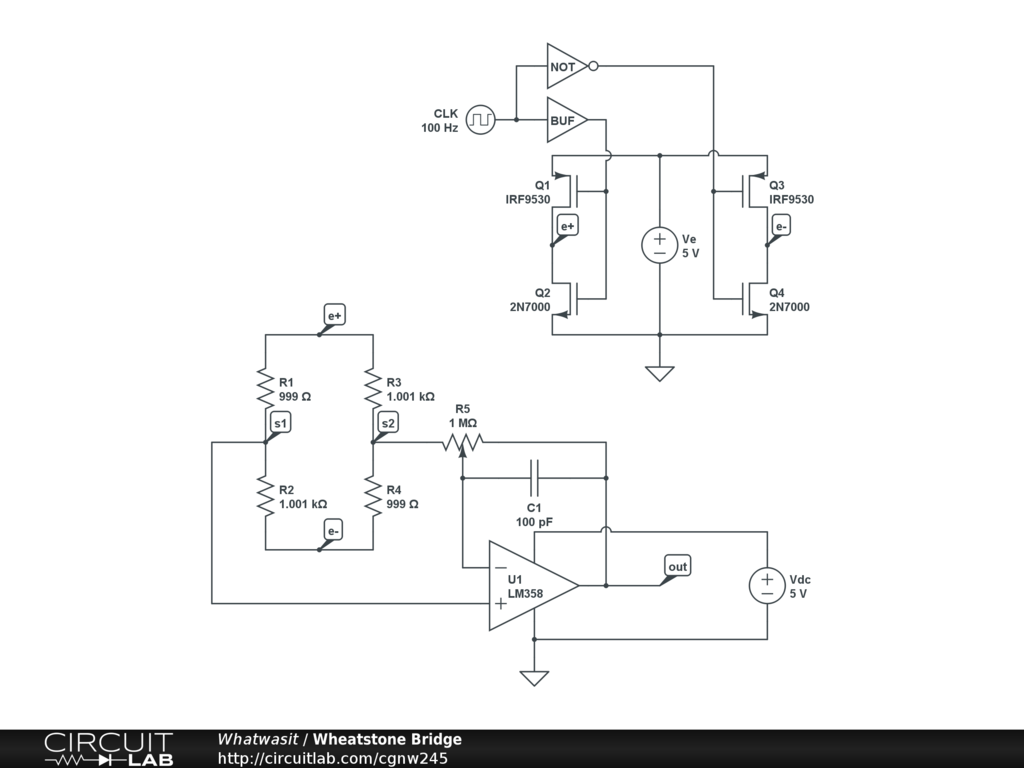

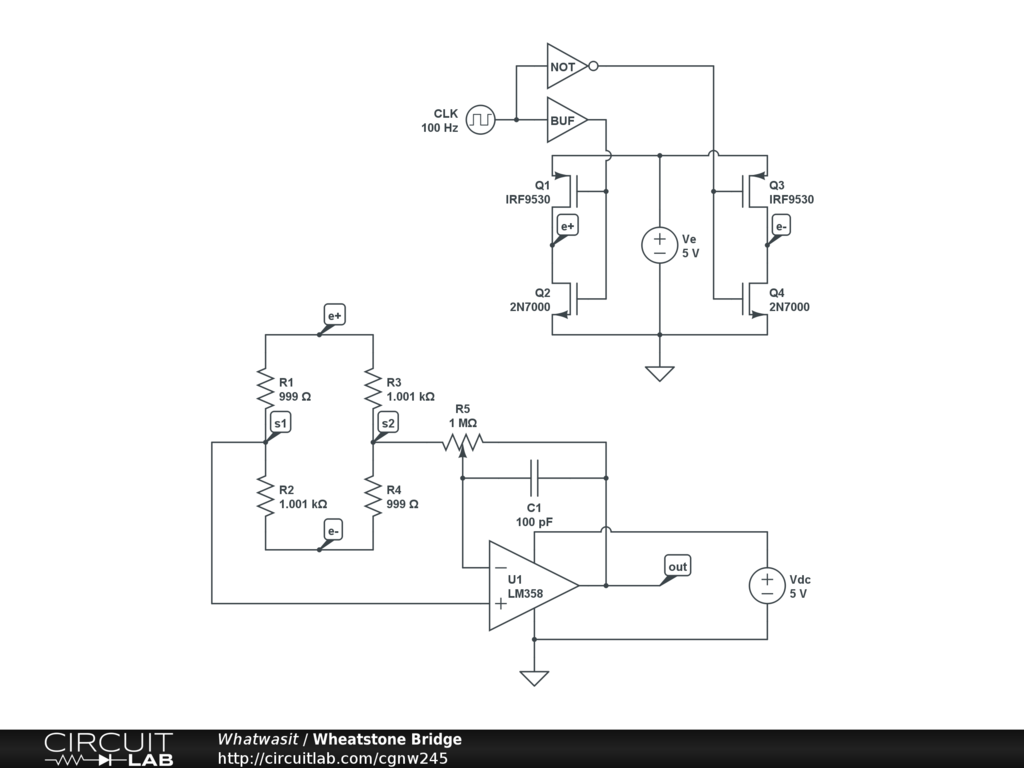

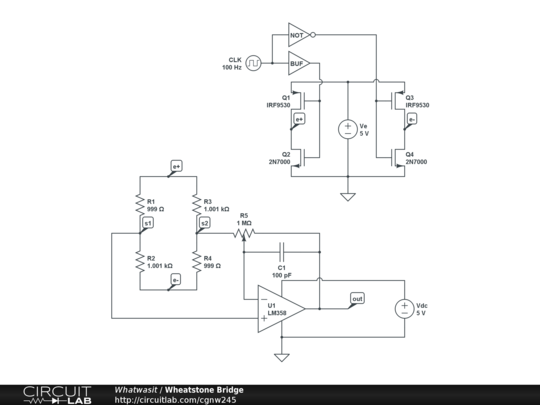

Quick demonstration of Wheatstone bridge amplifier with excitement voltage switching. You can experiment with different resistor values and switching frequencies while running time domain simulations.
Don't pay attention to the MOSFET bridge, it's there just for simulation :)
