Southco EA-R02 and AC-10-EM PUBLIC

Created by
Created August 01, 2023
Last modified August 02, 2023
Tags ac-10-em   ea-r02   ea-r02-ac-10-em   eas   southco

Summary

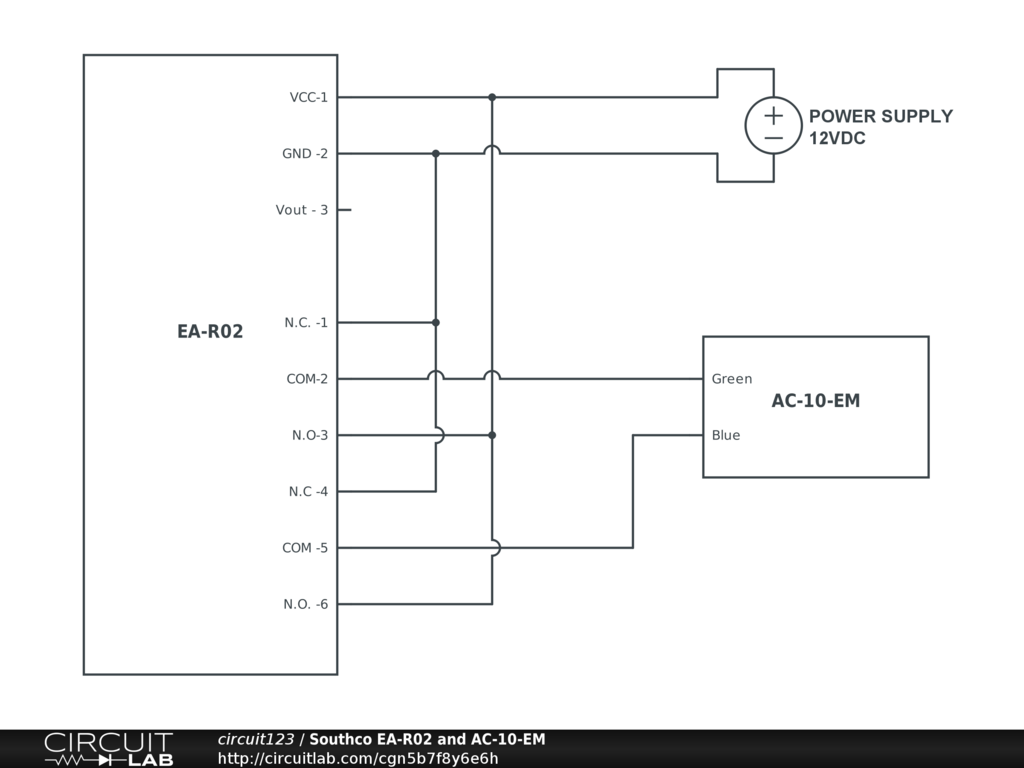

Wiring diagram between Southco EA-R02 RF controller and AC-10-EM latch with electronic locking.
