Non-linear Resistors and Capacitors RC simulation example

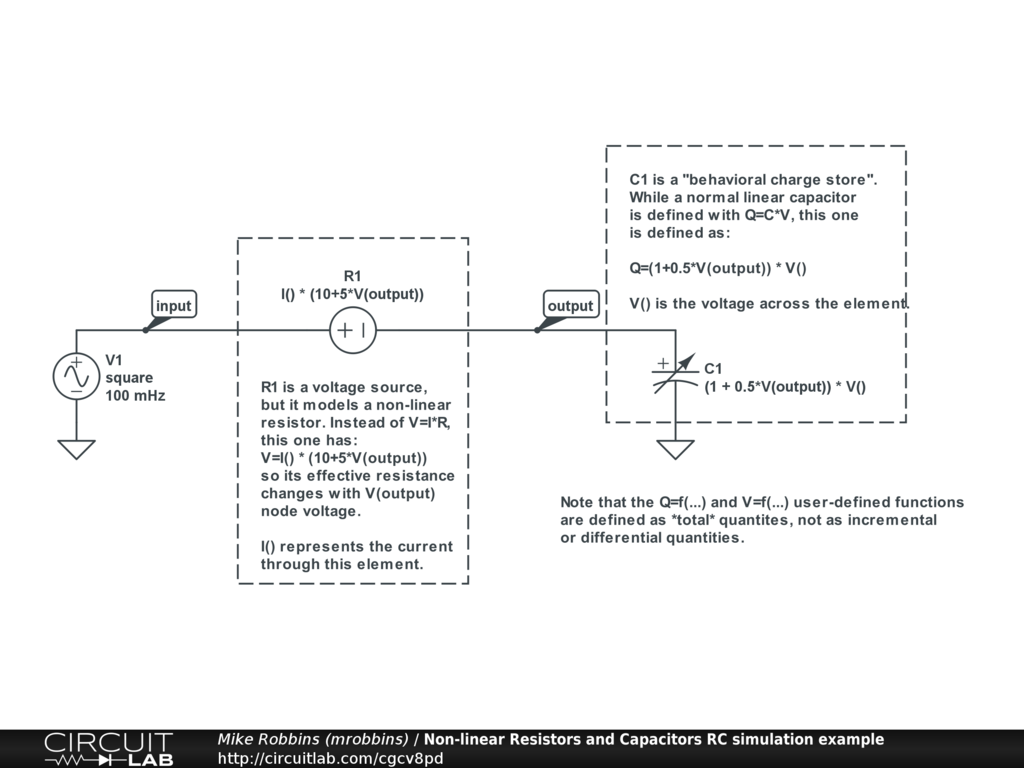

Using behavioral sources to simulate systems with non-linear RC systems, like thermal systems.
