AC/DC Convert PUBLIC

Created by
Created October 12, 2023
Last modified October 12, 2023
Tags No tags.

Summary

Not understanding simulation output in DC Solver.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

New to CircuitLab online.

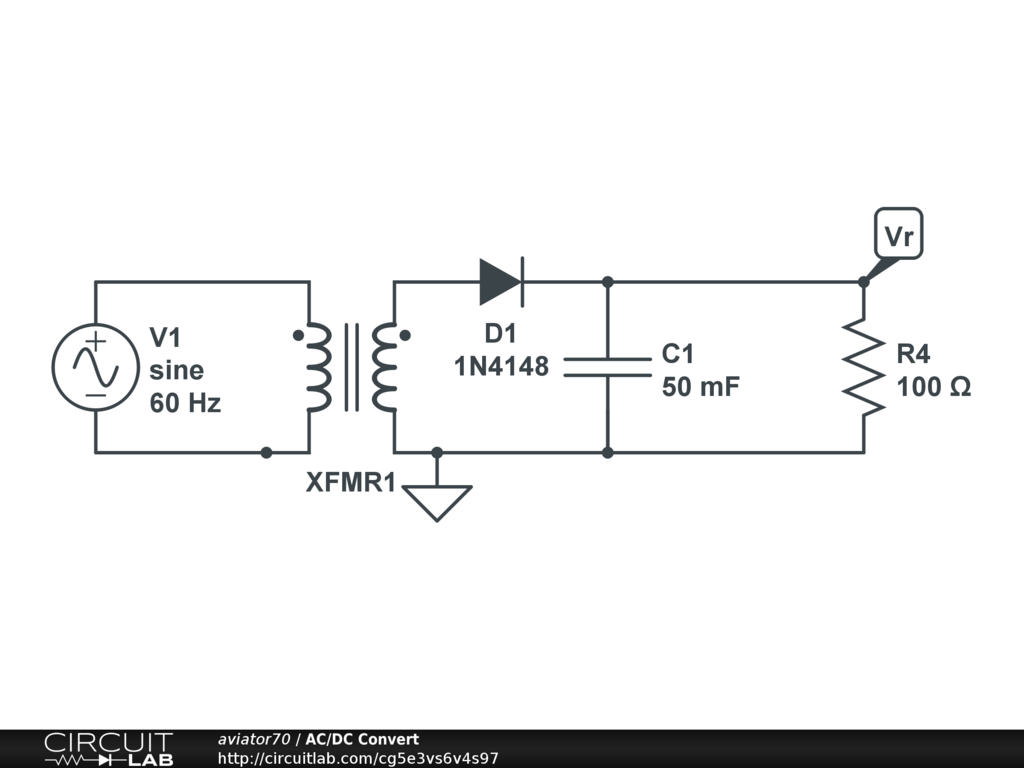

While simulating this circuit in time domain I get a good display of the graph showing the derived DC voltage at Vr of just over 5V. However, when trying a DC Solver the Vr solution shows 0.0V. Same when hovering mouse over nodes. Is this due to settings in the DC Solver or some other settings?

Thanks for any assistance/
