simple piecewise linear approximation using diode function generator 01

Created by	signality
Created	November 07, 2012
Last modified	February 26, 2013
Tags	curve-fitting diode-function-generator non-linear-amplifier piecewise-linear

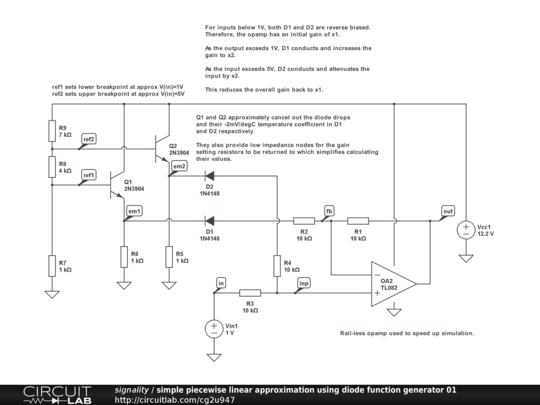

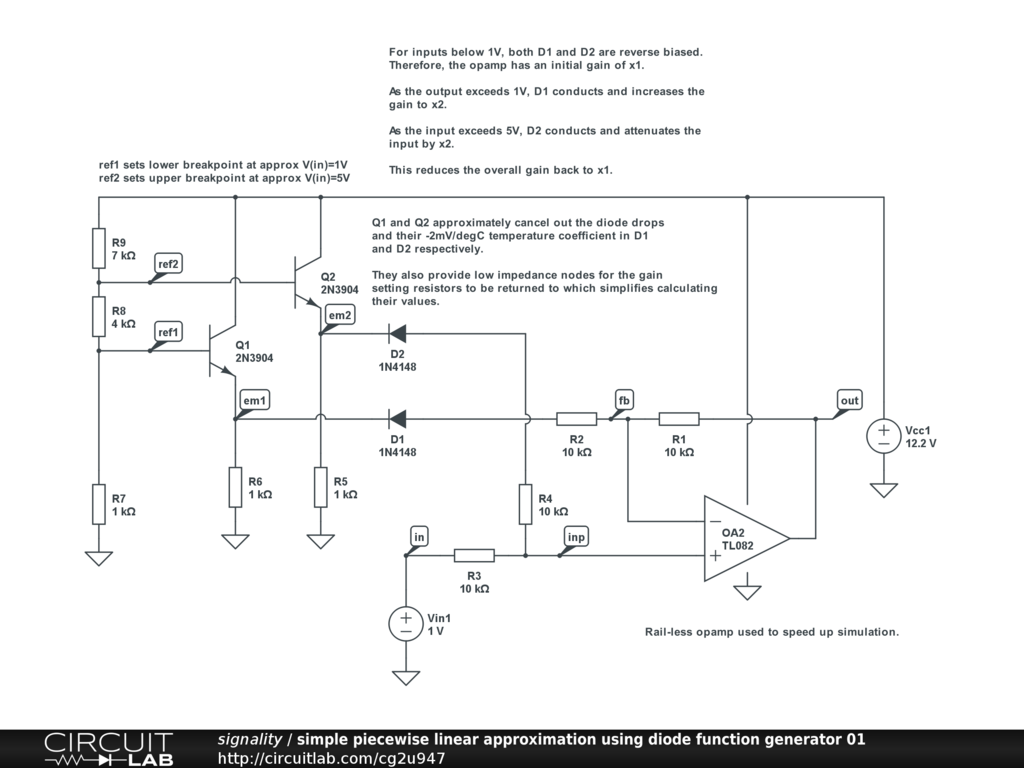

A basic diode function generator. 2 break points, 3 slopes. Crude offset and temperature compensation.

F5 to simulate.

Copy and paste the appropriate tags to share.
