SOLVED: expression in arbitrary source ignored with swept voltage values

Created by	signality
Created	December 13, 2012
Last modified	December 13, 2012
Tags	arbitrary-sources behavioural-sources

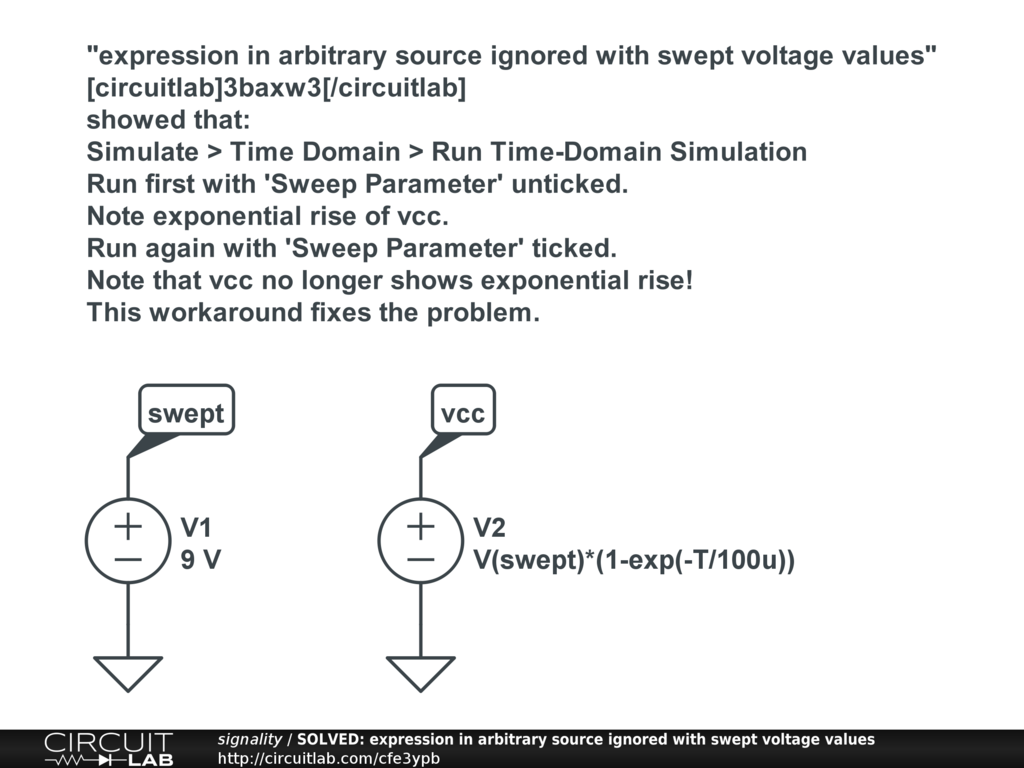

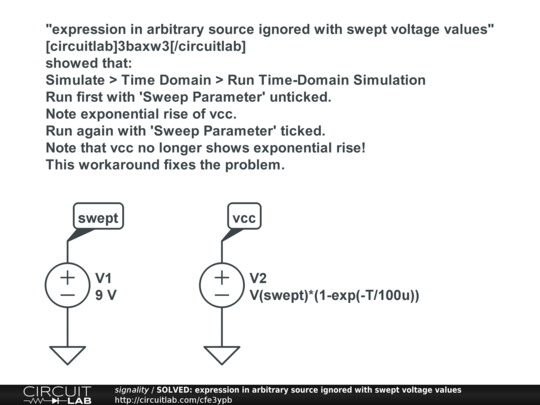

This workaround fixes the problem shown in "expression in arbitrary source ignored with swept voltage values"

[circuitlab]3baxw3[/circuitlab]

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

This workaround fixes the problem shown in "expression in arbitrary source ignored with swept voltage values"

showed that:

Simulate > Time Domain > Run Time-Domain Simulation

Run first with 'Sweep Parameter' unticked.

Note exponential rise of vcc.

Run again with 'Sweep Parameter' ticked.

Note that vcc no longer shows exponential rise!

This workaround fixes the problem.
