Summary

hi - I'm new here & have found a circuit that might work for me but using the simulator maybe it won't. input voltage varies constantly between between 0v - 10vdc & i want to get a regulated 5vDc. I understand that i won't get any output voltage if the input is say 5.1vDc or less, which is fine ...hope some can help. Thx Len


Description

So heres the scenario I have an input voltage at V1 that constantly between between 0v - 10vdc (e.g..5v solar panel) & i want to get a regulated 5vDc. I understand that i won't get any output voltage if the input is say 5.1vDc or less, which is fine ...hope someone can help. Thx Len

Oh please be nice ...im not an engineer, Just a hobbyist who enjoys electronic component jigsaw puzzles

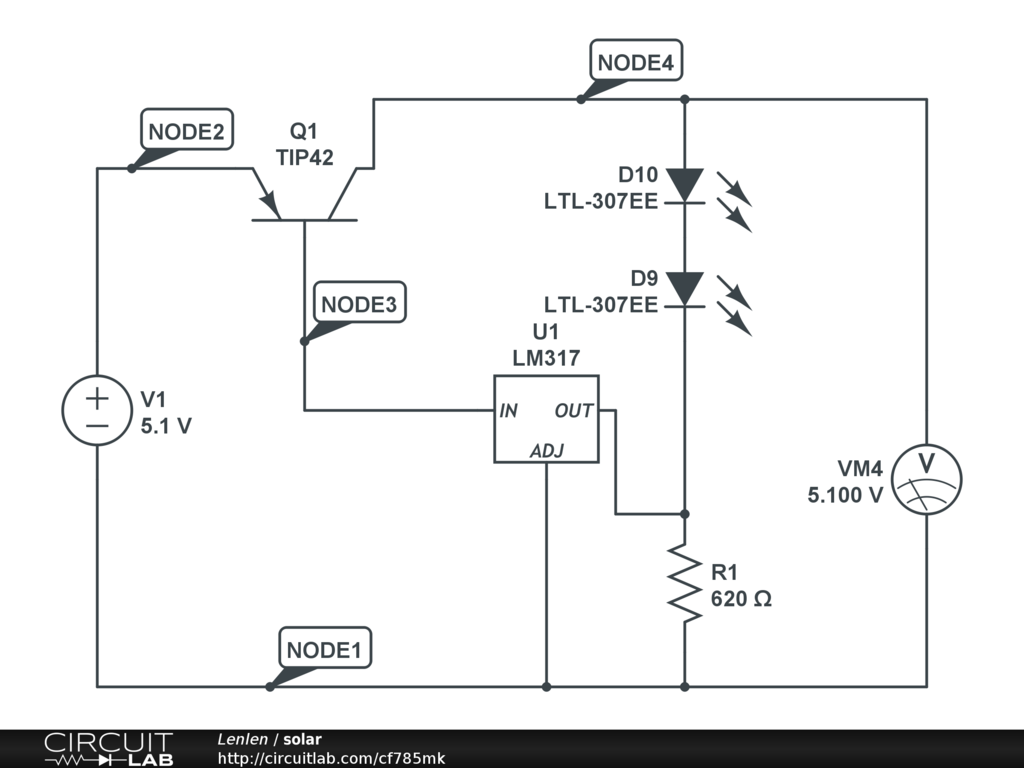

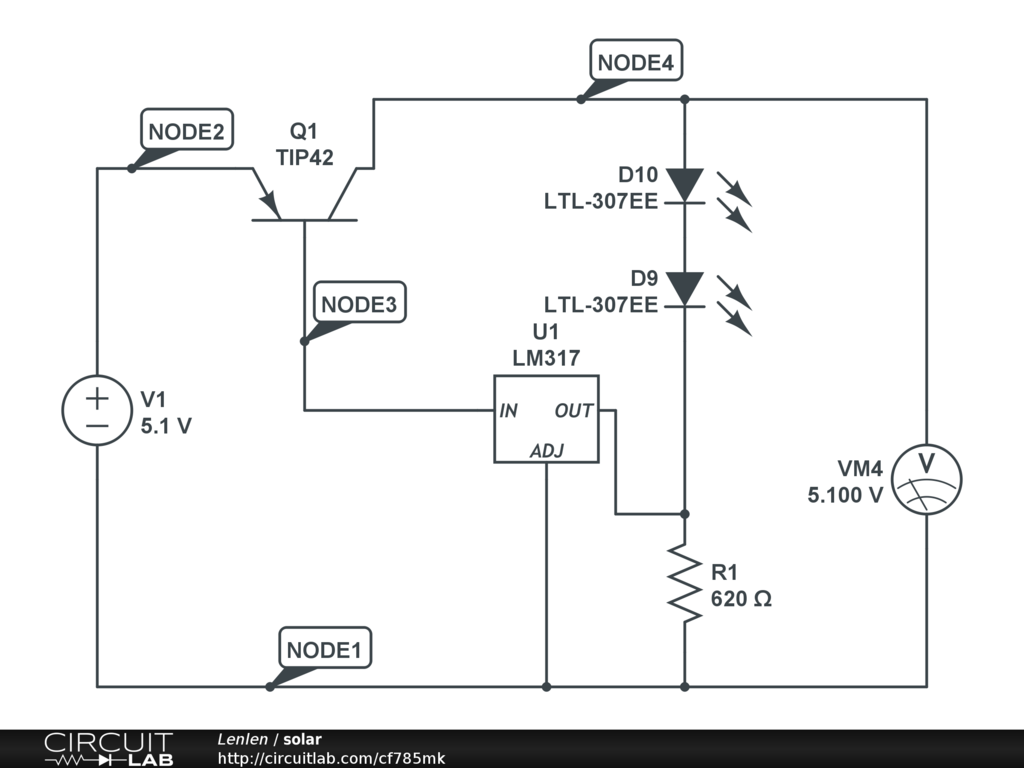

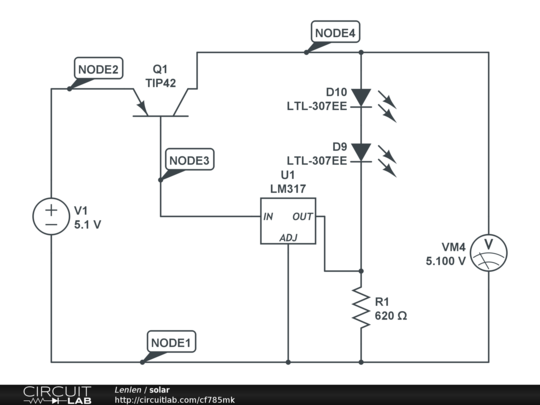

Also the schematic Im referring to indicates input voltages between 5.1vdC & 12vdC
