IR2153 regulated power supply

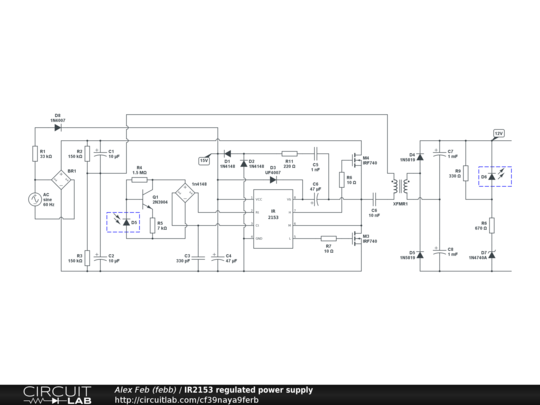

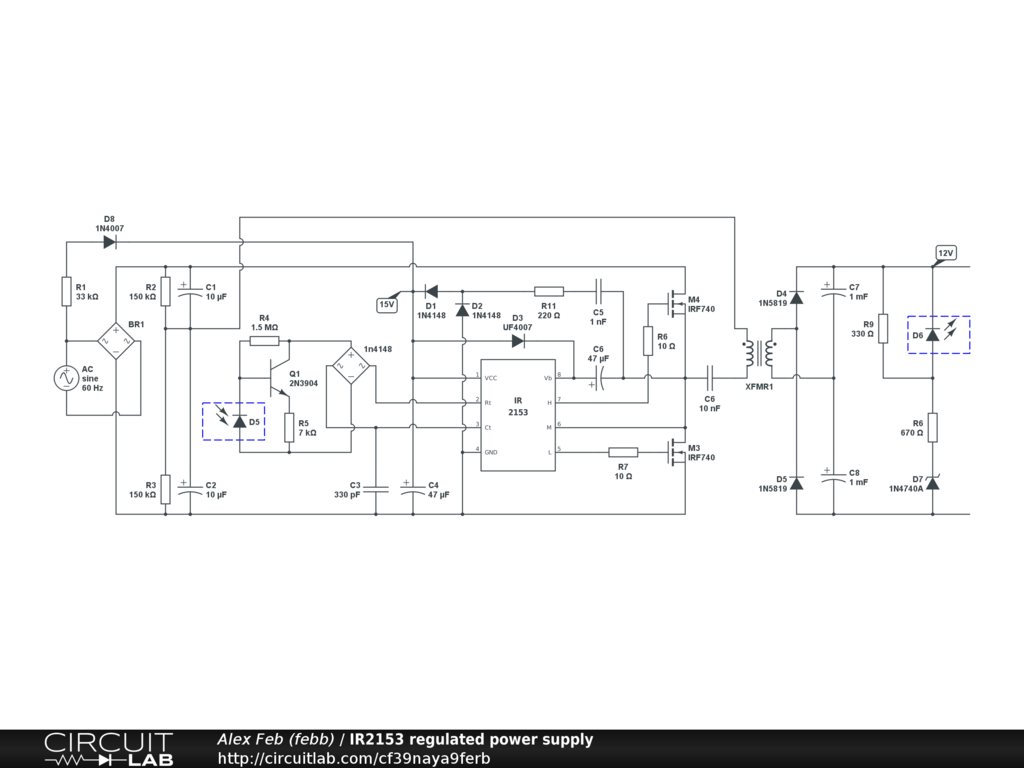

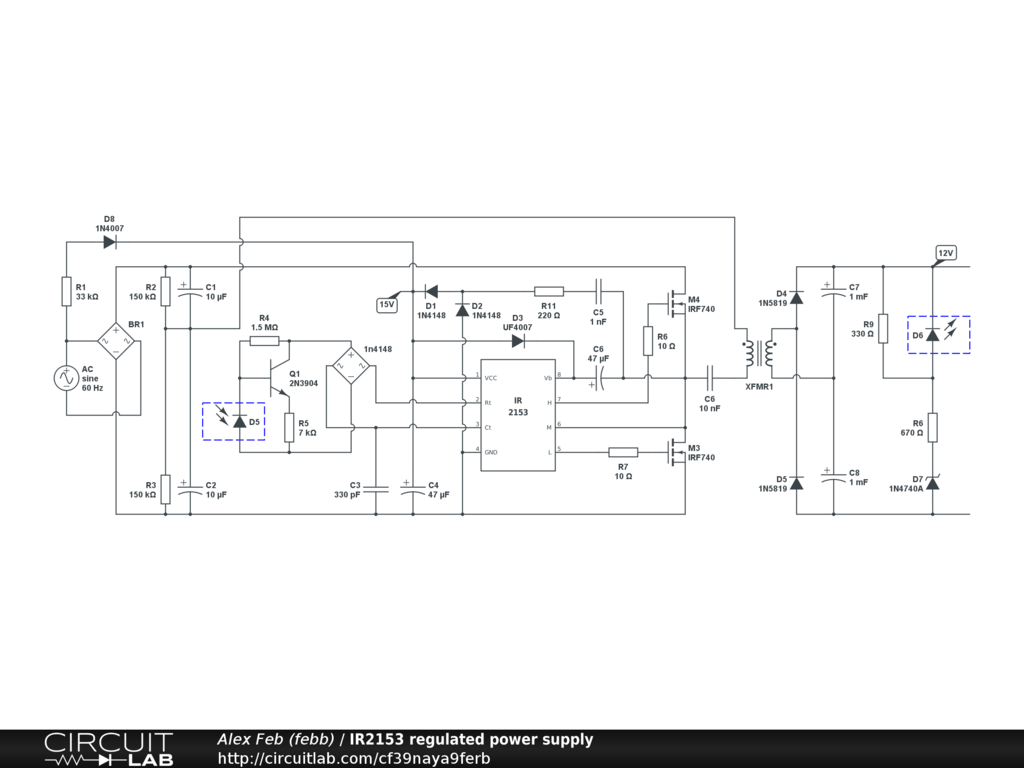

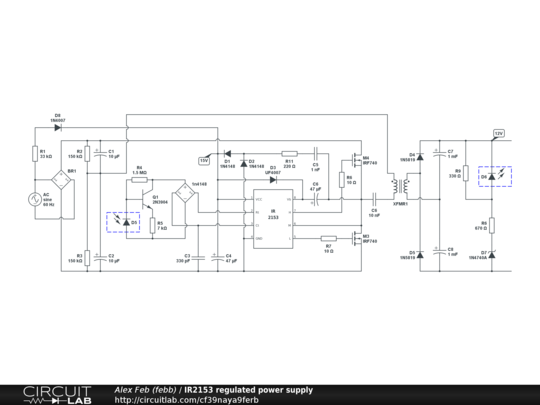

Frequency controlled IR2153 oscillator allows to build very effective half-bridge regulated switch mode power supply.
