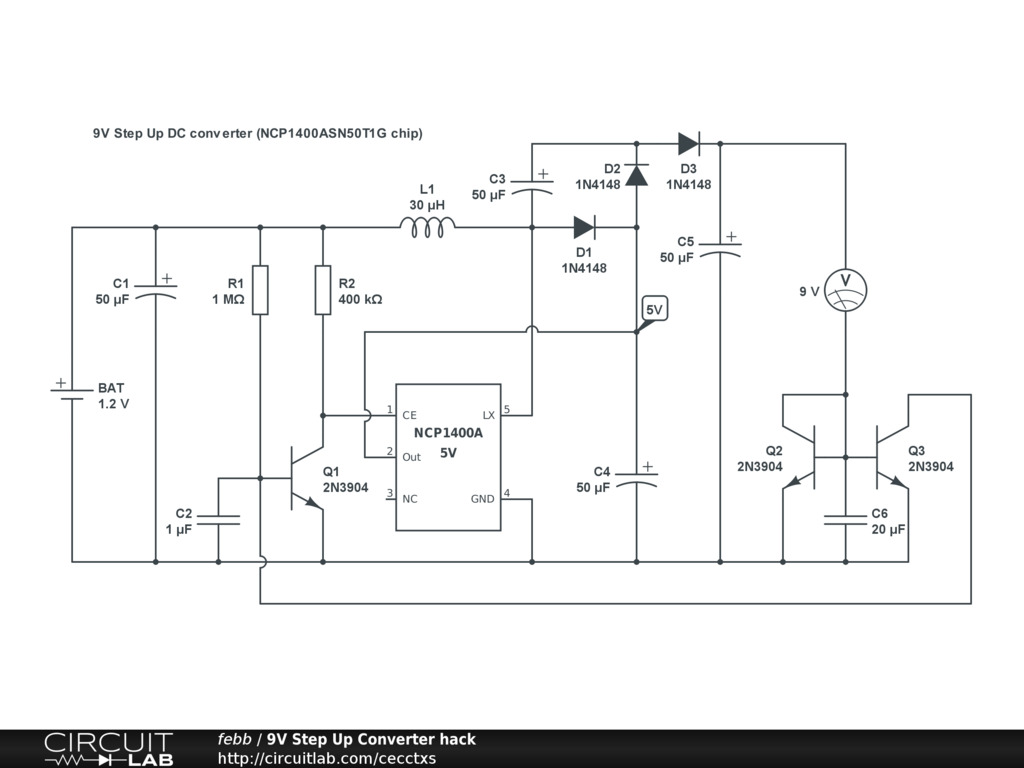

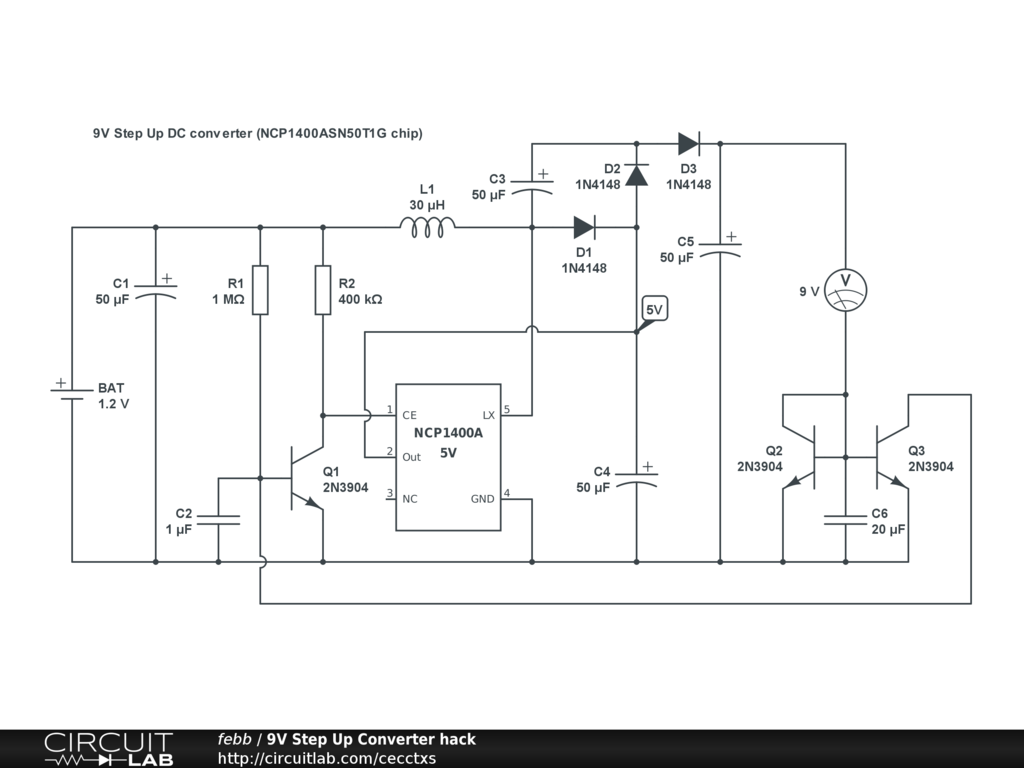

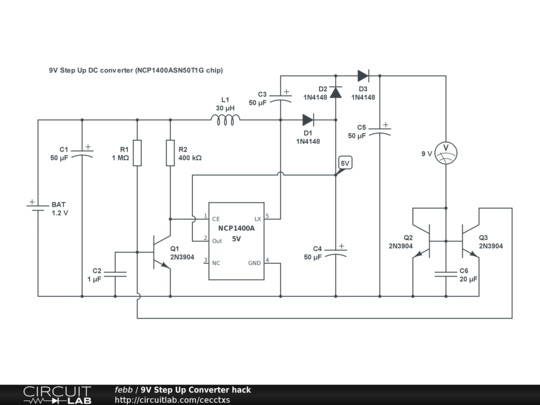

9V Step Up Converter hack

NCP1400ASN50T1G chip outputs fixed 5V.
To make 9V voltage is pumped to double.
Current sensor added to shutdown chip when no load.
