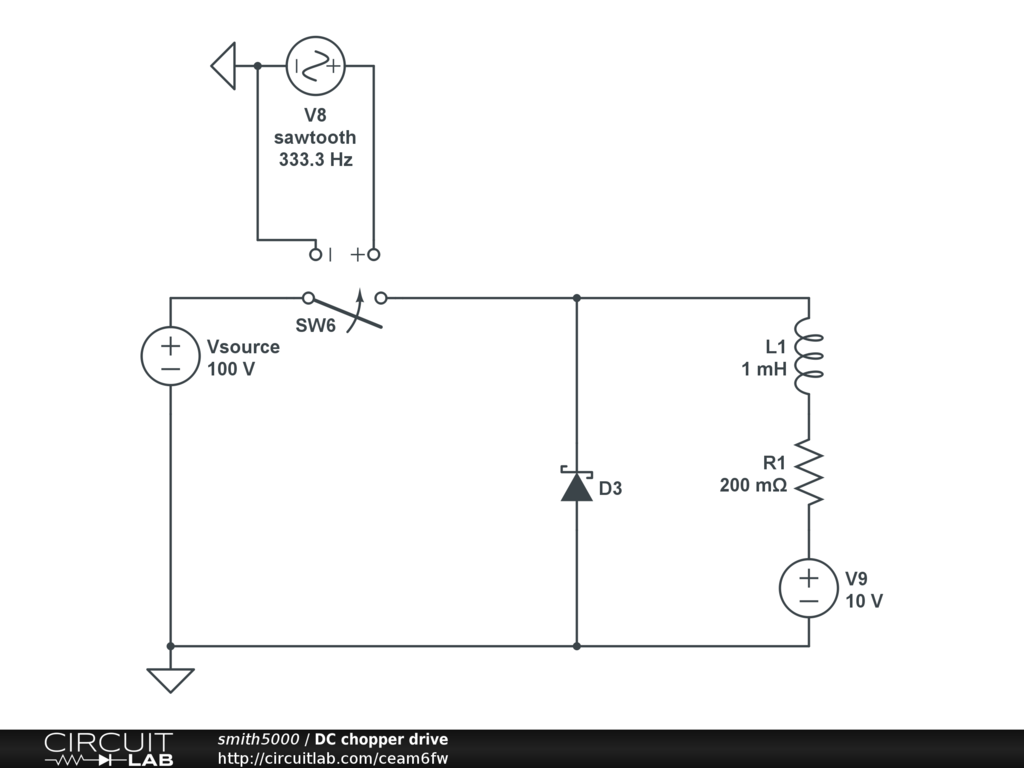

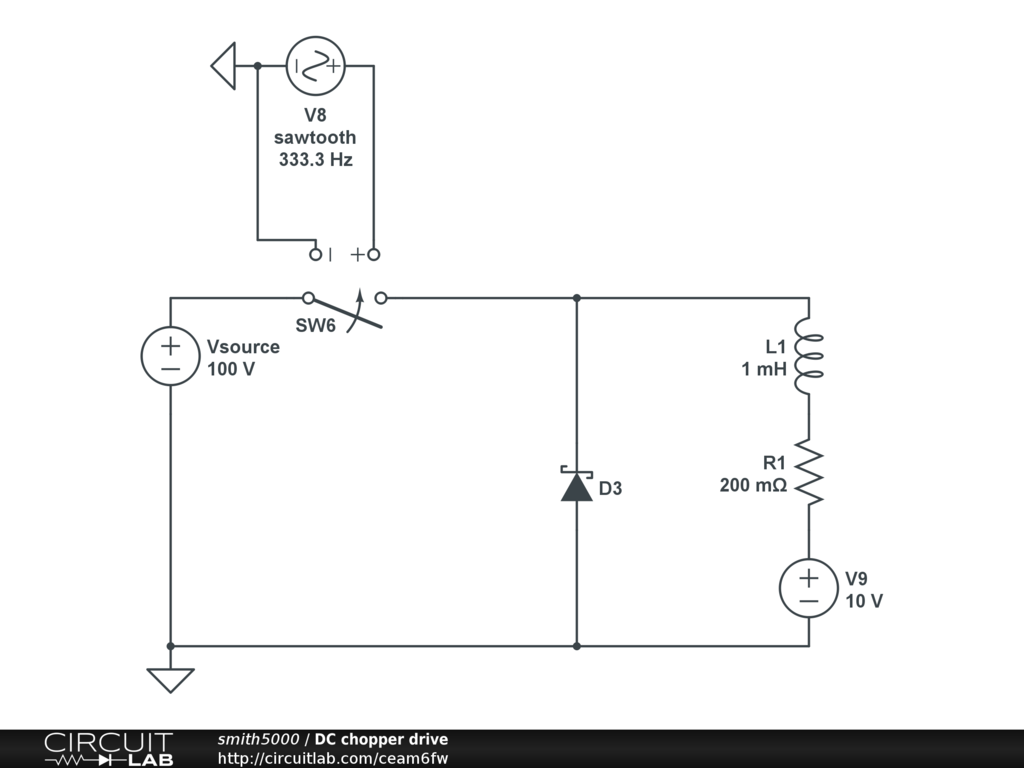

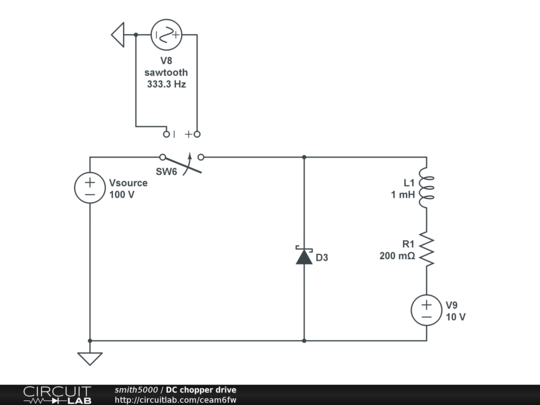

A simulation of the Uvic Elec 482 requirements for a CCM chopper drive with Eb=10V, Ra=0.2Ohm, La=1mH, Vs=100V, Ton = 1ms and T=3ms. Imax and Imin can be found by simulations however Vl avg, Ilavg, and efficiency are require hand calculation do to limited capabilities of this simulator
