phase shift delay

Created by	alkopop79
Created	January 13, 2014
Last modified	January 13, 2014
Tags	all-pass filter op-amp processor signal

Summary

A circuit to delay the phase of the incoming AC signal. Several of these modules can be used as a phaser effect.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

Description

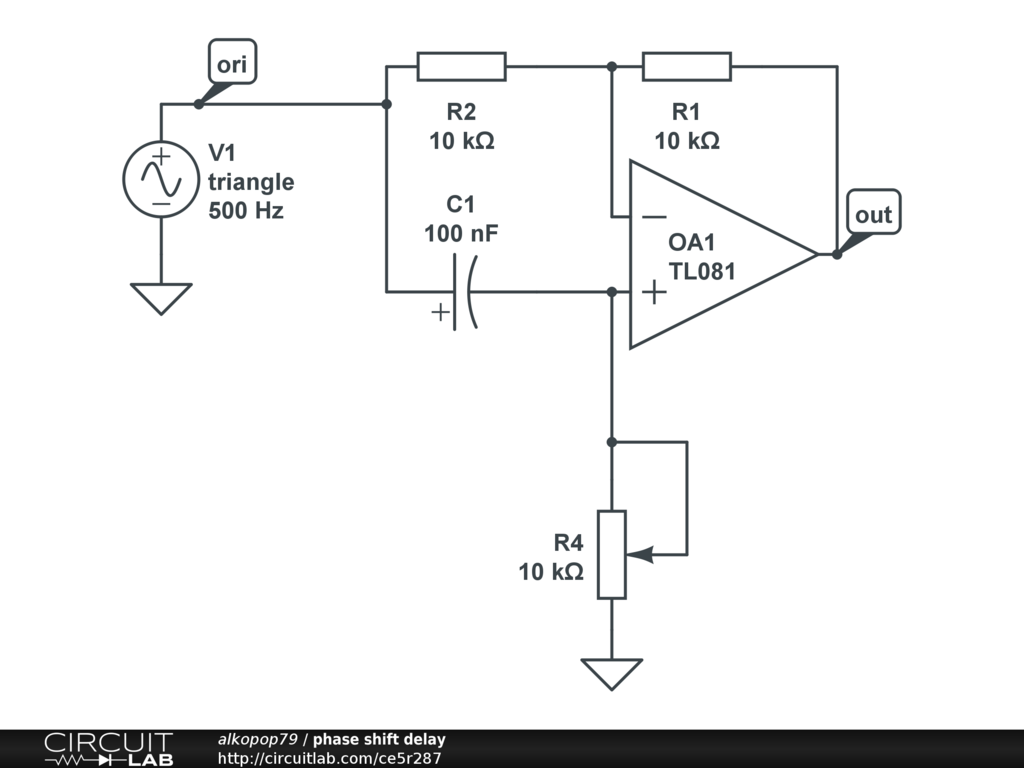

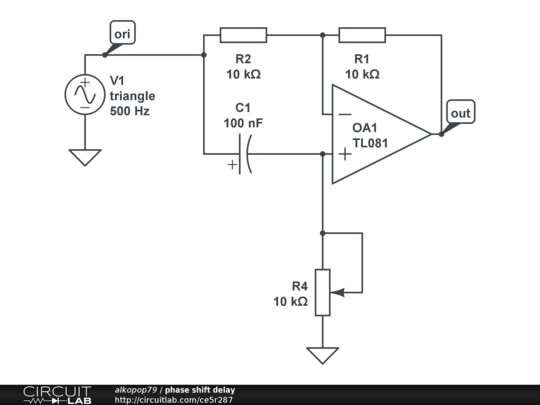

The circuit acts as an all-pass filter. It does not alter the waveform but shifts the phase of the signal. R4 changes the shift, feel free to experiment with different settings!
