PNP Buffer - POS GND

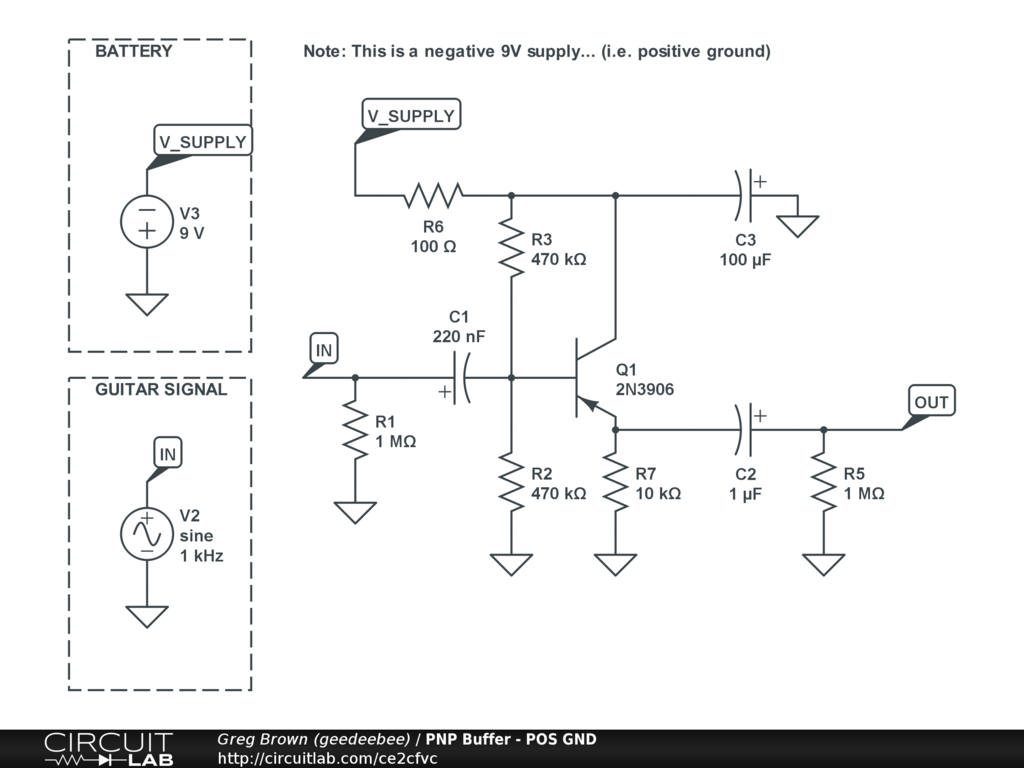

POSITIVE GND version of the PNP Buffer/Line Driver as seen here http://www.muzique.com/tech/bipolar-p.htm
