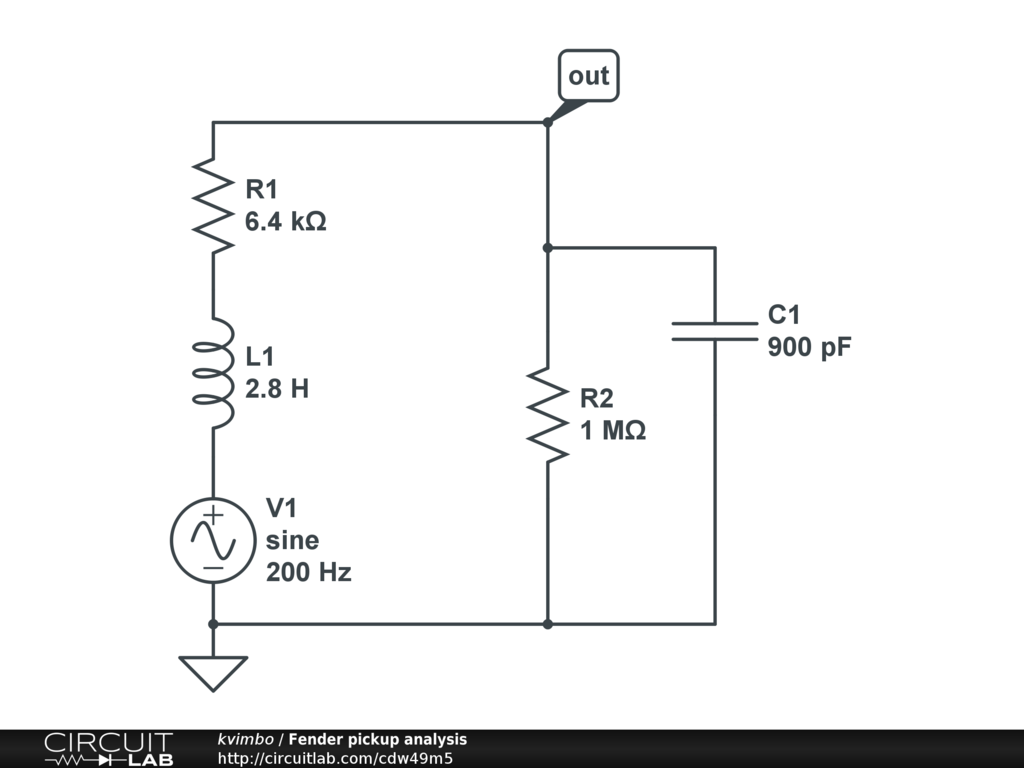

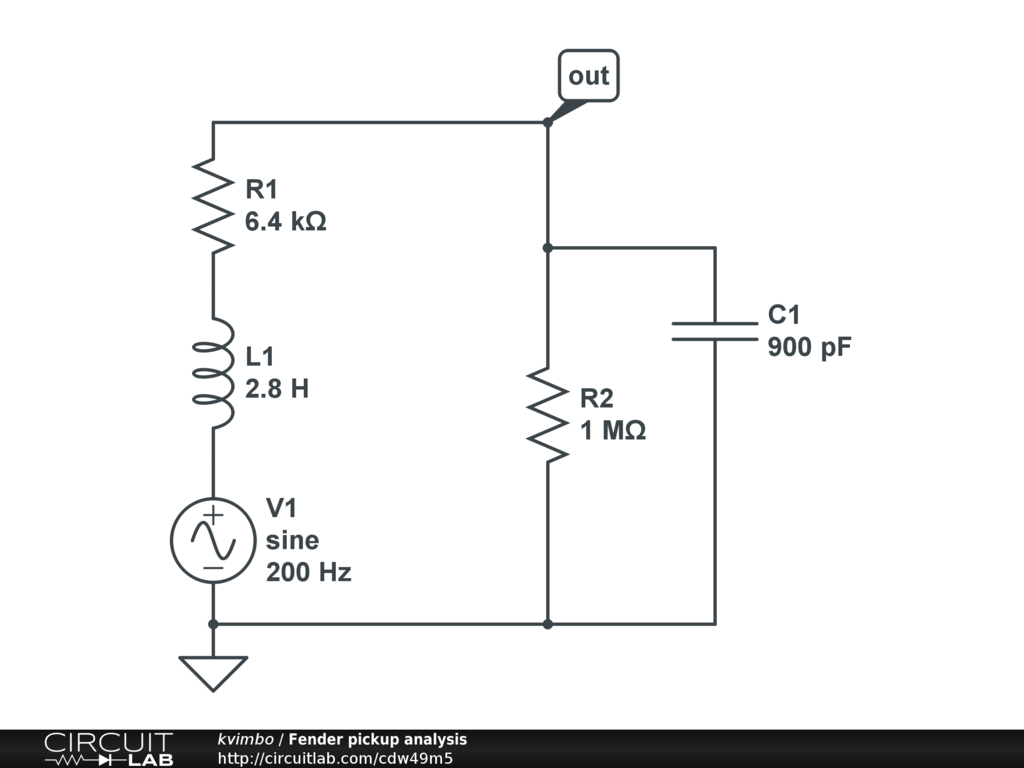

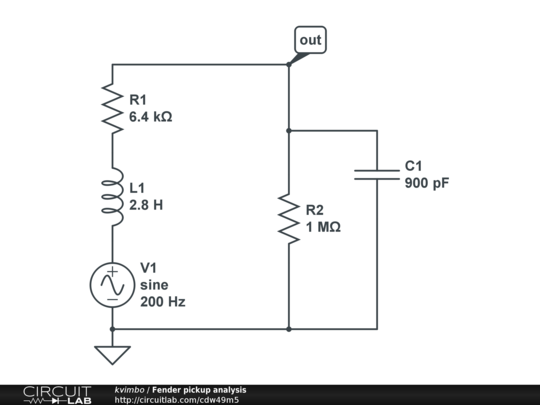

The specs of the pickup are R1, L1. The voltage is set to 100 mV, 200Hz. The load is R2 - potentiometers in the guitar and the input load of tube amplifier. C1 is approximately 3 meter connecting cable with 300pF per meter.
And, yes, there are some not quite correct approximations of the real situation... Especially at the right side of the schematic.
