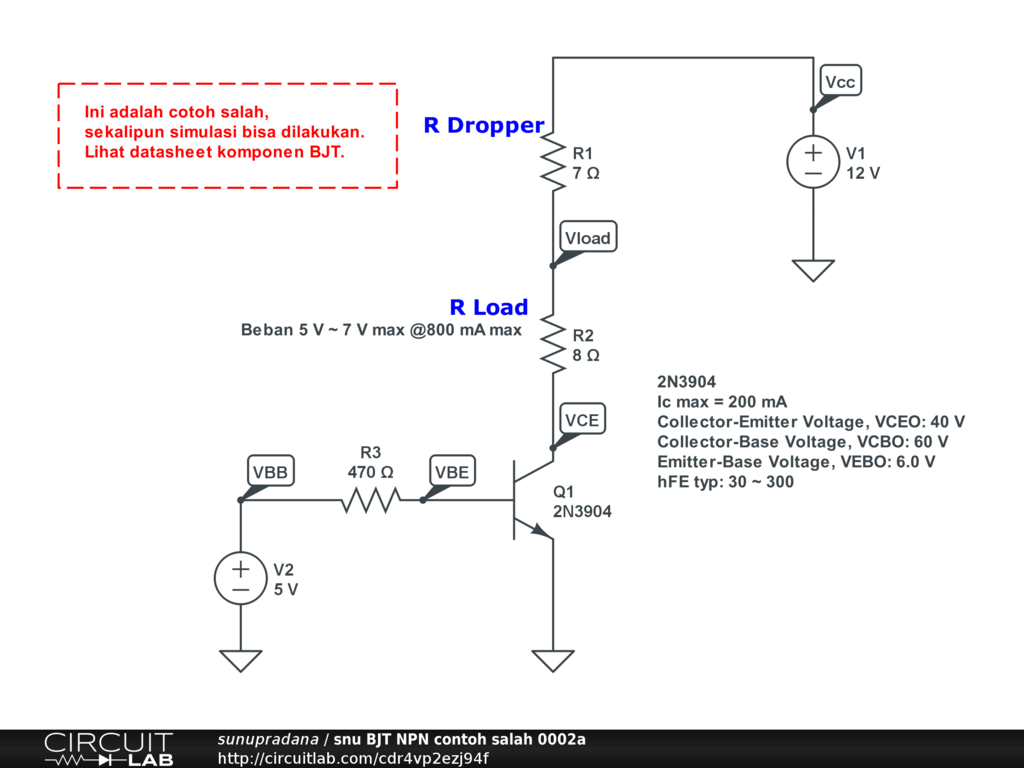

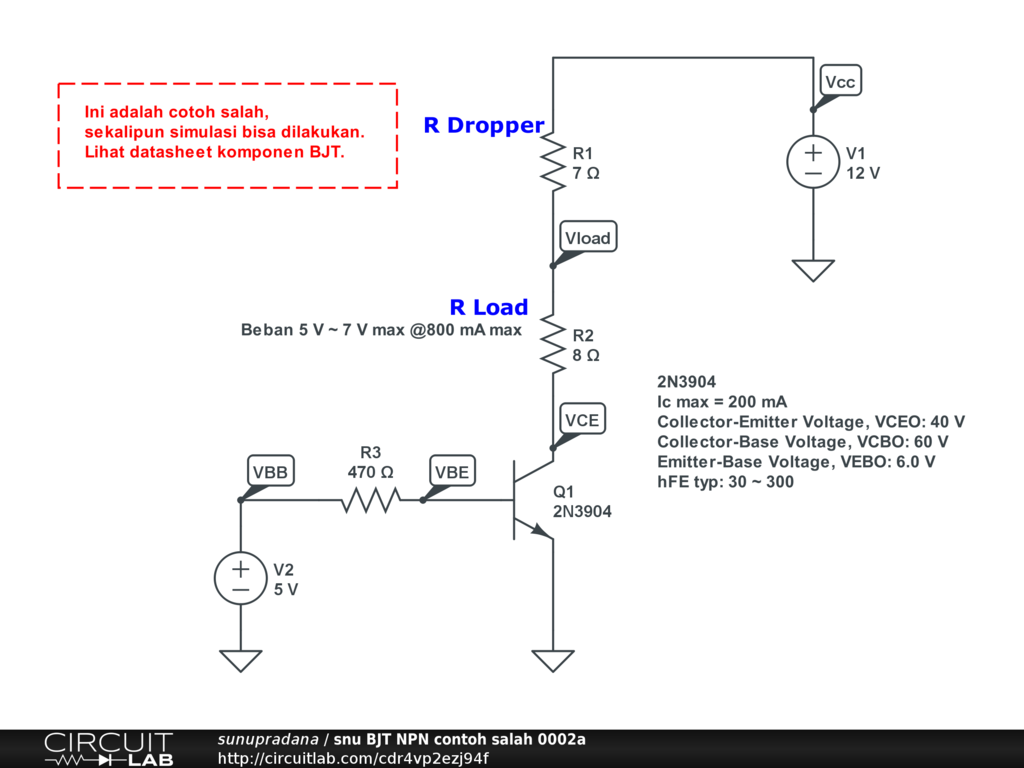

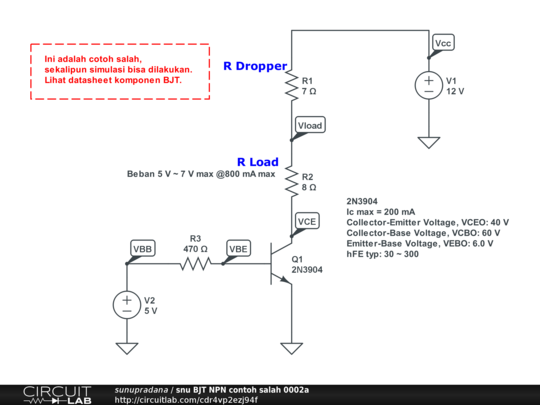

snu BJT NPN contoh salah 0002a

Contoh pemilihan/penggunaan komponen BJT NPN yang salah. Perlu untuk melihat dan mengacu datasheet.
Salah satu contoh untuk tugas praktik.
