OKR VW Mod Prototype

Created by	Apsu
Created	January 01, 2014
Last modified	January 02, 2014
Tags	4-wire ecig mod ohmmeter okr reverse-polarity vaping variable-wattage vw

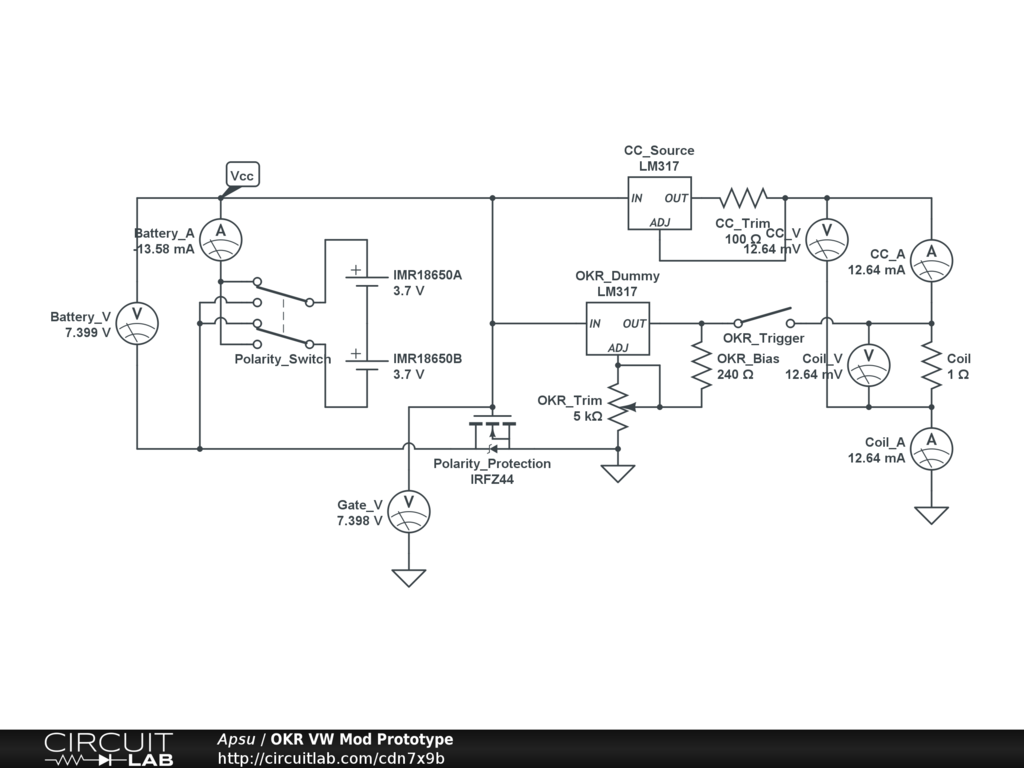

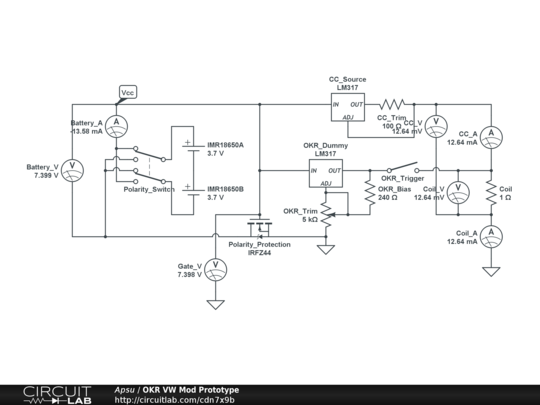

Starting point for Murata OKR-based variable-wattage ecig mod with reverse-polarity protection. LM317 is a dummy standin for OKR.
